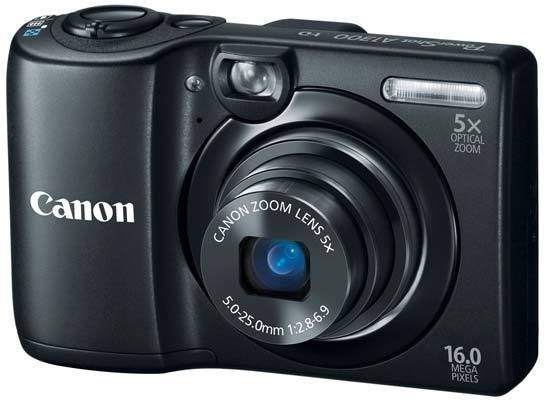

Canon PowerShot A1300 Review

3.5
December 21, 2012 | Matt Grayson |

Specifications

IMAGE SENSOR

Type 1/2.3 type CCD
Effective Pixels Approx. 16.0M
Colour Filter Type Primary Colour

IMAGE PROCESSOR

Type DIGIC 4 with iSAPS technology

LENS

Focal Length 5.0 - 25.0 mm (35 mm equivalent: 28 - 140 mm)
Zoom Optical 5x. Digital Approx. 4x. Combined Approx. 20x¹²
Maximum f/number f/2.8 - f/6.9
Construction 6 elements in 5 groups
(1 double-sided aspherical lens, 1 double-sided aspherical UA lens)

FOCUSING

Type TTL
AF System/ Points AiAF (Face Detection / 9-point), 1-point AF (fixed to centre)
AF Modes Single, Continuous (Auto mode only), Servo AF/AE¹, Tracking AF¹
AF Point Selection Size (Normal, Small)
AF Lock On/Off Selectable
AF Assist Beam Yes
Closest Focusing Distance 3 cm (W) from front of lens in macro

EXPOSURE CONTROL

Metering modes Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot (centre)
AE Lock On/Off Selectable
Exposure Compensation +/- 2 EV in 1/3 stop increments.
Enhanced i-Contrast for automatic dynamic range correction
ISO sensitivity* AUTO, 100, 200, 400, 800, 1600

SHUTTER

Speed 1 - 1/2000 sec. (factory default)
15 - 1/2000 sec. (total range - varies by shooting mode)

WHITE BALANCE

Type TTL
Settings Auto (including Face Detection WB), Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom

VIEWFINDER

Viewfinder Real-image zoom, optical viewfinder

LCD MONITOR

Monitor 6.8 cm (2.7") TFT, Approx. 230,000 dots
Coverage Approx. 100%
Brightness Adjustable to one of five levels

FLASH

Modes Auto, Manual Flash On / Off, Slow Synchro
Slow Sync Speed Yes. Fastest speed 1/2000 sec.
Red-Eye Reduction Yes
Flash Exposure Compensation Face Detection FE, Smart Flash Exposure
Flash Exposure Lock Yes
Built-in Flash Range 50 cm - 3.0 m (W) / 1.0 - 2.0 m (T)
External Flash Canon High Power Flash HF-DC1
Canon High Power Flash HF-DC2

SHOOTING

Modes Smart Auto (32 scenes detected), P, Live View Control, Digital IS, Portrait, FaceSelf-Timer, Low Light (4.0MP), Fish-eye Effect, Miniature Effect, Toy Camera Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks, Long Shutter, Discreet
Modes in Movie P, Live View Control, Portrait, Miniature Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks, iFrame Movie
Drive modes Single, Continuous, Self-Timer
Continuous Shooting Approx. 0.8 shots/sec.¹ (until memory card becomes full)²

RECORDING PIXELS / COMPRESSION

Image Size (L) 4608 x 3456, (M1) 3264 x 2448, (M2) 1600 x 1200, (S) 640 x 480, (W) 4608 x 2592. Resize in playback (M2, S, 320 x 240)
Compression Fine
Movies (HD) 1280 x 720, 25 fps, (L) 640 x 480, 30 fps
Miniature Effect (HD (5, 2.5, 1.25 fps) or L (6, 3, 1.5 fps))
iFrame Movie (HD)
Movie Length (HD) Up to 4 GB or 29 min. 59 sec.¹
(L) up to 4 GB or 1 hour²

FILE TYPES

Still Image Type JPEG compression, (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system, Digital Print Order Format [DPOF] Version 1.1 compliant
Movies MOV [H.264 + Linear PCM (2 channel monaural) ]

DIRECT PRINT

Canon Printers Canon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge (ID Photo Print, Fixed Size Print and Movie Print supported on SELPHY CP & ES printers only)
PictBridge Yes

OTHER FEATURES

Red-Eye Correction Yes, during shooting and playback
Histogram Yes
Playback zoom Approx. 2x - 10x
Self Timer Approx. 2 or 10 sec. or Custom
Menu Languages English, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Simplified Chinese, Chinese (traditional), Japanese, Russian, Portuguese, Korean, Greek, Polish, Czech, Hungarian, Turkish, Thai, Arabic, Ukrainian, Romanian, Farsi, Vietnamese, Malaysian, Indonesian

INTERFACE

Computer Hi-Speed USB (MTP, PTP) dedicated connector (Mini-B compatible)
Other A/V output, dedicated connector (PAL/NTSC)

MEMORY CARD

Type SD, SDHC, SDXC

SUPPORTED OPERATING SYSTEM

PC & Macintosh Windows 7 SP1/ Vista SP2/ XP SP3
Mac OS X v10.6 - 10.7

SOFTWARE

Browsing & Printing ImageBrowser EX
Other Camera Window
PhotoStitch

POWER SOURCE

Batteries 2x Size-AA Alkaline or Ni-MH Batteries (Alkalines supplied)
Battery life Approx. 220 shots¹(with supplied batteries)
Approx. 500 shots (with optional Canon NB-3AH batteries)¹
Approx. 600 min. playback (with supplied batteries)
Approx. 780 min. playback (with Canon NB-3AH batteries)
A/C Power Supply Optional, AC Adapter Kit ACK800 (DC Coupler DR-DC10 also required)

ACCESSORIES

Cases / Straps Soft Case DCC-490
Flash Canon High Power Flash HF-DC1
Canon High Power Flash HF-DC2
Power Supply & Battery Chargers Battery Charger Kit CBK4-300, Ni-MH Batteries NB4-300, AC adapter kit ACK800 (DC Coupler DR-DC10 also required)
Other Canon AV Cable AVC-DC400

PHYSICAL SPECIFICATIONS

Operating Environment 0 - 40 °C¹, 10 - 90% humidity
Dimensions (WxHxD) 94.7 x 61.7 x 29.8 mm
Weight Approx. 174 g (including battery/batteries and memory card)



Zoom ¹ Depending on the image size selected.
² Digital zoom available for still image and standard movie modes only. Optical zoom may not be available during movie recording.
AF Modes ¹ Some settings limit availability.
Continuous Shooting ¹ Under conditions where the flash does not fire.
² Depending on memory card speed / capacity / compression setting.
Movie Length ¹ The following Speed Class memory cards are required for maximum record time: (HD) 1280 x 720 Speed Class 4 or above. (Full HD) 1920 x 1080 Speed Class 6 or above. (iFrame) 1280 x 720 Speed Class 6 or above.
² Depending on memory card speed / capacity / compression setting.
Battery life ¹ Using the batteries and memory card format supplied with the camera (where included), except where indicated.
Operating Environment ¹ 0 - 35 °C when NB4-300 is used.
  • All data is based on Canon standard testing methods (according to CIPA Standards) except where indicated.
  • Subject to change without notice.
  • *Standard Output Sensitivity / Recommended Exposure Index.
  • According to ISO 12232:2006 (20th April 2006) which specifies the method for assigning and reporting ISO speed ratings for digital still cameras.
