Epson Stylus Pro 7900 Review

4.5
January 20, 2010 | Jon Canfield | Printer Reviews |

Introduction

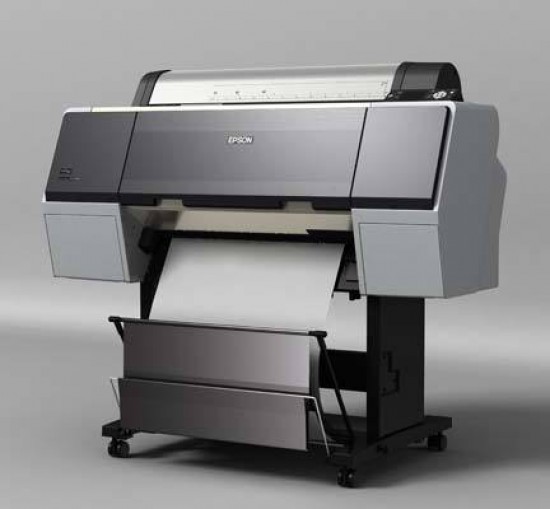

The Epson Stylus Pro 7900 is an A1+/24" large format printer aimed squarely at the pro photographer. According to Epson, the 7900 offers "the best the industry has to offer for colour proofing, photography and fine art reproduction" - a bold claim indeed. Jon Canfield finds out if the Epson 7900 really can deliver on its promise in our expert review.

The Epson line of photo printers is well respected for excellent quality output on a variety of media types, as well as a long archival life through their pigment inks. Recently, Epson added two new models to the large format lineup, the 24" Stylus Pro 7900 ($3,995) and the 44" Stylus Pro 9900 ($5,995). Rather than replacing the existing 7880 and 9880 models, they're additions to the line, although at a significantly higher price point than the x880 printers.

In the new printers, Epson has changed the traditional eight color inkset used in the UltraChrome K3 printers (all the x880 models) with a new eleven color UltraChrome HDR inkset. The new inkset includes: Photo Black, Matte Black, Light Black, Light Light Black, Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Orange, and Green. All eleven inks are now onboard (the x880 required you to swap the Photo Black and Matte Black inks and wasted quite a bit of ink in the process), but you'll be printing with a maximum of ten as Photo Black and Matte Black are used exclusive of each other depending on the media selection.

The x900 printers are much bulkier than the previous models, in part to handle the extra inks, and also because of a significant change in the print head with the MicroPiezo TFP head (Figure 1). This adds an ink repelling coating to the head to help prevent clogged nozzles, which have been an issue for some users in the past. Taking it a step further, there is also an auto nozzle verification routine to improve reliability further. As part of my testing, I left the printer unused for 4 weeks to see how it would respond. With the 7880, I would typically do a nozzle check and head clean if it had been setting for this amount of time. The 7900 produced a top quality print immediately, with no nozzle issues at all.

Epson Stylus Pro 7900
Figure 1

Ease of Use

If this is your first large format printer, be prepared to wonder what you've gotten yourself into. These are big packages, delivered on a palette. Don't plan on unpacking and setting it up all by your lonesome. While the 7880 is large (about 110 lbs), the 7900 is a monster that weighs about 190 lbs. You need two or more to get the printer assembled and on the stand. I spent about an hour and a half to unpack and assemble the printer, including ink installation. As usual, Epson's documentation is excellent, making it easy to assemble the stand and printer. Once you have the stand assembled, you're ready to put the printer on the stand and begin charging the ink lines. The color LCD control panel walks you through each step of the process, making it nearly foolproof to setup. With all eleven inks installed, there's no more switching cartridges out or dealing with levers, making this a start it and walk away process. The printer ships with a 110ml starter set of inks. About half of this is used during the initial setup process, so you'll be well served to pick up additional inks. The 7900 and 9900 support 150ml, 350ml, and 700ml cartridges.

After setup, you'll install the software for your system. Epson includes drivers, a network configuration program, and utilities to update firmware and manage paper, and to perform maintenance like nozzle cleaning. These are all accessed through the Epson Printer Utility (Figure 2).

Epson Stylus Pro 7900
Figure 2

I tested the 7900 in the standard configuration. Epson also has a Proofing Edition that includes a copy of EFI RIP for Postscript output and improved proofing accuracy that will appeal to the graphics professionals, but for photography, the standard edition is the way to go. Also available for the Proofing Edition is a new SpectroProofer developed with X-rite. This option ($1,495 for the 7900) lets you perform precise color measurements in the printer, but once again is targeted more towards the person that needs precise color matching for specific graphic output.

While the spectroproofer does give you the option of doing critical color calibration, for photography it isn't really needed. Unlike the HP Z3200, the spectro does not create ICC profiles for media, so you would still need a external device for this work. Even Epson recommends the SpectroProofer option for graphic artists and not photographers.

Media handling has always been a strong point for Epson. Sheets can be dropped in from the top and loaded with a single button press, or you can release the pressure and manually load and align your media. Both options work very well; the only skew issues I had due to uneven edges on the paper.

New to the 7900 is a truly innovative roll system. In the past, Epson has been criticized for not having a true roll feed, but rather a simple roll holder. The 7900 can now track paper use, printing a small code on the roll when changing media to indicate how much is left on the roll.

The innovative portion of the roll feed system though is the holder that doesn't use a spindle for support. The printer instead uses roll media adapters at each end (Figure 3). You can switch between 2" and 3" cores with a simple lever. To use the adapters, simply put it in the end of the roll and twist the handle to lock it. Then move the left roll holder over to the roll and lock that down. Epson has additional media adapters available, but they're so quick and easy to change I didn't see a need for more than the included pair. The 44" 9900 also has a optional take-up reel system for printing from roll to roll in high volume settings. The roll cutter has been improved as well with a new rotary design that can handle almost any thickness media and is virtually maintenance free according to Epson.

Epson Stylus Pro 7900
Figure 3

Printing to the 7900 is very much like any other Epson printer you might have used. If you're printing from Photoshop, you should let Photoshop manage color (Figure 4), and select the appropriate paper profile there. The profiles provided with the 7900 were extremely high quality, matching or exceeding the custom profiles I created.

Epson Stylus Pro 7900
Figure 4

In the print driver, be sure to select No Color Management to avoid unexpected results, and note that if you're on a Mac you have the option to print in 16-bit color.  For images with smooth tonal gradations, like sky and skin tones, this improves output by sending more color information to the printer. The differences are subtle, but when viewed side-by-side you can see a difference.
