Fujifilm GF 120mm f4 R LM OIS WR Macro Review

April 7, 2017 | Mark Goldstein | |

Introduction

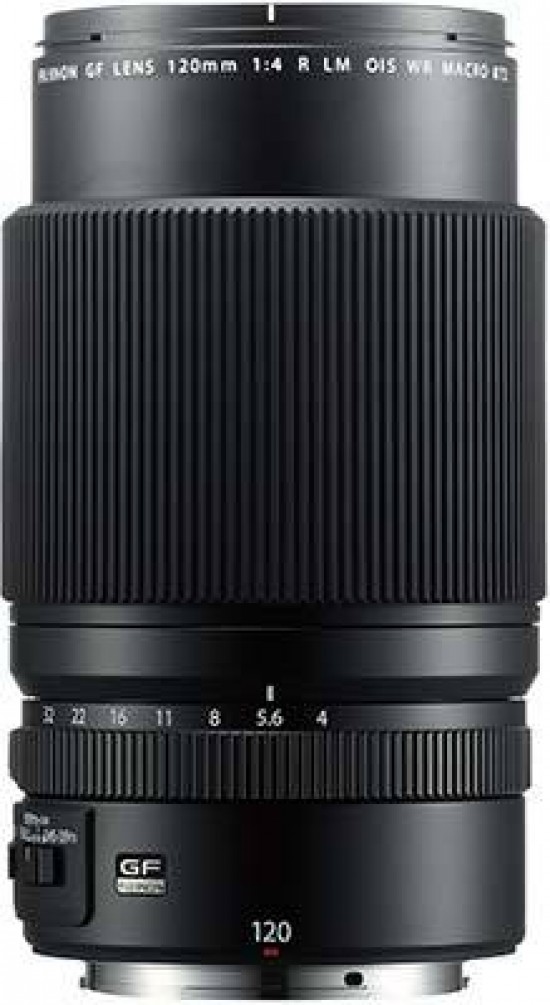

The Fujifilm GF 120mm f4 R LM OIS WR Macro is a moderate telephoto prime lens designed specifcally for Fujifilm GFX 50S mirrorless cameras. It features an aperture range of f/4-f/32, 14 elements in 9 groups including 3 extra-low dispersion elements, optical image stabilization system which compensates for up to five stops, high-speed linear motor, focus range limiter, dust- and weather-sealed physical construction, and weighs in at 980 grams. The Fujifilm GF 120mm f4 R LM OIS WR Macro is also able to focus as close as 45cm and it takes 72mm filters. The Fujifilm GF 120mm f4 R LM OIS WR Macro retails for $2699 / £2599.

Ease of Use

With a maximum diameter of 90mm and a length of 152mm, the Fujifilm GF 120mm f4 R LM OIS WR Macro is a short telephoto fixed focal length optic that's fairly well-suited to the GFX 50S camera that we tested it with. Weighing in at 980g, it's quite a heavy lens, but proved to be quite well-balanced on the equally new GFX 50S.

Fujifilm GF 120mm f4 R LM OIS WR MacroThe Fujifilm GF 120mm f4 R LM OIS WR Macro lens mounted on a Fujifilm GFX 50S

Fujifilm GF 120mm f4 R LM OIS WR MacroThe Fujifilm GF 120mm f4 R LM OIS WR Macro lens mounted on a Fujifilm GFX 50S

Fujifilm GF 120mm f4 R LM OIS WR MacroThe Fujifilm GF 120mm f4 R LM OIS WR Macro lens mounted on a Fujifilm GFX 50S

Fujifilm GF 120mm f4 R LM OIS WR MacroTThe Fujifilm GF 120mm f4 R LM OIS WR Macro lens alongside the Fujifilm GFX 50S

The Fujifilm GF 120mm f4 R LM OIS WR Macro boasts excellent build quality. The lens is dust and moisture resistant and it features a metal bayonet.

The focus ring is very wide, smooth and beautifully well-damped in action without being loose, and has a ridged, rubberised grip band. There are no “hard stops” at either end of the 45cm-infinity focus range though.

Focusing is usefully internal and manual focusing is possible when set via the camera body. Full-time manual focus override is not available at any time simply by rotating the focus ring.

The Fujifilm GF 120mm f4 R LM OIS WR Macro has a focus limiter switch with three settings - Full, 09m-infinity and 0.45-0.9m.

Fujifilm GF 120mm f4 R LM OIS WR MacroThe side of the Fujifilm GF 120mm f4 R LM OIS WR Macro lens

Fujifilm GF 120mm f4 R LM OIS WR MacroThe side of the Fujifilm GF 120mm f4 R LM OIS WR Macro lens

The Fujifilm GF 120mm f4 R LM OIS WR Macro lens has a traditional aperture ring on the lens barrel, which allows you to set the aperture in 1/3 steps, complete with full aperture markings. The aperture is also shown in the viewfinder or on the LCD screen. The aperture ring is nicely damped and makes a distinctive click as you change the setting. The aperture ring toggles between auto aperture control (the ring is set to A) or manual aperture control (the switch is set to one of the aperture values) or the new C (Command) position which allows you to set the aperture via the camera body rather than the lens.

Fujifilm GF 120mm f4 R LM OIS WR MacroThe front of the Fujifilm GF 120mm f4 R LM OIS WR Macro lens

Fujifilm GF 120mm f4 R LM OIS WR MacroThe rear of the Fujifilm GF 120mm f4 R LM OIS WR Macro lens

The Fujifilm GF 120mm f4 R LM OIS WR Macro lens is comprised of 14 elements in 9 groups including 3 extra-low dispersion elements. It accepts 72mm filters via metal threads.

There is built-in optical image stabilisation in this lens which is equivalent to 5-stops, turned on and off by the dedicated OIS switch on the side of the lens barrel.

Fujifilm GF 120mm f4 R LM OIS WR MacroThe side of the Fujifilm GF 120mm f4 R LM OIS WR Macro lens

Fujifilm GF 120mm f4 R LM OIS WR MacroThe side of the Fujifilm GF 120mm f4 R LM OIS WR Macro lens

A soft cloth bag and a very large plastic circular lens hood are supplied in the box.

Fujifilm GF 120mm f4 R LM OIS WR MacroThe Fujifilm GF 120mm f4 R LM OIS WR Macro lens in-hand

Fujifilm GF 120mm f4 R LM OIS WR MacroThe Fujifilm GF 120mm f4 R LM OIS WR Macro lens with the supplied lens hood fitted

Focal Range

The 90mm focal length gives an angle of view of 25.7 degrees on a 35mm full frame sensor, which is equivalent to a focal length of 95mm.

 Fujifilm GF 120mm f4 R LM OIS WR MacroField of view at 120mm

Focusing

The Fujifilm GF 120mm f4 R LM OIS WR Macro's manual focussing ring spans a significant width of the lens barrel and is exceptionally smooth to operate. It also has a large rotation angle which enables precise focusing and moves smoothly without any play. Two different focusing aids are provided - auto magnification and focus peaking. In conjunction with the GFX 50S' high-resolution electronic viewfinder, we found it very easy to accurately determine critical sharpness.

When it comes to auto-focusing, the Fujifilm GF 120mm f4 R LM OIS WR Macro is a very quiet performer on the Fujifilm GFX 50S that we tested it with thanks to the linear motor, and it's also pretty fast for a macro lens, taking about 0.5 second to lock onto the subject in good light. We didn't experience too much "hunting" with good lighting, with the lens accurately focusing almost all of the time, but it was prone to hunting in more dim environments.

Chromatic Aberrations

Chromatic aberration (purple fringing) is a non-issue with the Fujifilm GF 120mm f4 R LM OIS WR Macro lens, only appearing in very high contrast situations.

Light Fall-off and Distortion

Light fall-off is noticeable wide open at f/4, though this is to be expected for such a fast lens and can easily be corrected in Photoshop. Stop down to f/8 and the vignetting is already less prominent, but it is still visible when shooting pale scenes that fill the frame.

Fujifilm GF 120mm f4 R LM OIS WR MacroLight fall-off

Macro

A 45cm minimum focus distance makes the lens very useful for shooting close subjects, as does the maximum magnification ratio of 0.5x. This image is uncropped and shows how close you can get to a Compact Flash card.

Fujifilm GF 120mm f4 R LM OIS WR MacroClose-up performance

Bokeh

A major appeal of fast, wide-aperture prime lenses is their ability to produce an eye-catching separation between a sharp subject and a very soft out-of-focus background. The Fujifilm GF 120mm f4 R LM OIS WR Macro generates smooth out of focus areas thanks to having 9 rounded aperture blades. Bokeh is however a fairly subjective part of a lens’ image quality, so check out these 100% crops to see the Fujifilm GF 120mm f4 R LM OIS WR Macro’s bokeh quality for yourself.

Fujifilm GF 120mm f4 R LM OIS WR Macro Fujifilm GF 120mm f4 R LM OIS WR Macro

Fujifilm GF 120mm f4 R LM OIS WR Macro Fujifilm GF 120mm f4 R LM OIS WR Macro

Sharpness

In order to show you how sharp this lens is, we are providing 100% crops on the following page.
