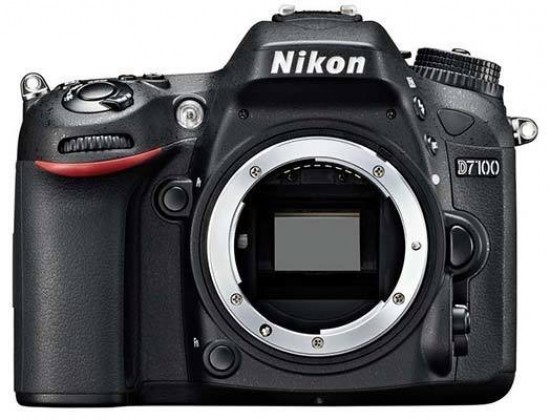

Nikon D7100 Review

4.5
March 25, 2013 | Mark Goldstein |

Specifications


Type Single-lens reflex digital camera
Lens mount Nikon F mount (with AF coupling and AF contacts)
Effective angle of view Nikon DX format; focal length in 35 mm [135] format equivalent to approx. 1.5x that of lenses with FX format angle of view
Effective pixels 24.1 million
Image sensor 23.5 x 15.6 mm CMOS sensor
Total pixels 24.71 million
Dust-reduction System Image sensor cleaning, Image Dust Off reference data (optional Capture NX 2 software required)
Storage - Image size (pixels) DX (24 x 16) image area: 6000 x 4000 (L), 4496 x 3000 (M), 2992 x 2000 (S); 1.3x (18 x 12) image area: 4800 x 3200 (L), 3600 x 2400 (M), 2400 x 1600 (S); Photographs with image area of DX (24 x 16) taken in movie live view: 6000 x 3368 (L), 4494 x 2528 (M), 2992 x 1860 (S); Photographs with image area of 1.3x (18 x 12) taken in movie live view: 4800 x 2696 (L), 3600 x 2024 (M), 2400 x 1344 (S);
File format NEF (RAW): 12 or 14 bit, lossless compressed or compressed; JPEG: JPEG-Baseline compliant with fine (approx. 1 : 4), normal (approx. 1 : 8), or basic (approx. 1 : 16) compression (Size priority); Optimal quality compression available; NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats
Picture Control System Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified; storage for custom Picture Controls
Media SD (Secure Digital) and UHS-I compliant SDHC and SDXC memory cards
Double slot Slot 2 can be used for overflow or backup storage or for separate storage of copies created using NEF+JPEG; pictures can be copied between cards.
File system DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif (Exchangeable Image File Format for Digital Still Cameras) 2.3, PictBridge
Viewfinder Eye-level pentaprism single-lens reflex viewfinder
Frame coverage Approx. 100% horizontal and 100% vertical
Magnification Approx. 0.94x (50 mm f/1.4 lens at infinity, -1.0 m-1)
Eyepoint 19.5 mm (-1.0 m-1; from center surface of viewfinder eyepiece lens)
Diopter adjustment -2 - +1 m-1
Focusing screen Type B BriteView Clear Matte Mark II screen with AF area brackets (framing grid can be displayed)
Reflex mirror Quick return
Depth-of-field preview Pressing depth-of-field preview button stops lens aperture down to value selected by user (A and M modes) or by camera (other modes)
Lens aperture Instant return, electronically controlled
Compatible lenses Compatible with AF NIKKOR lenses, including type G and D lenses (some restrictions apply to PC lenses) and DX lenses, AI-P NIKKOR lenses, and non-CPU AI lenses (A and M modes only). IX NIKKOR lenses, lenses for the F3AF, and non-AI lenses can not be used. The electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster (the electronic rangefinder supports the center focus point with lenses that have a maximum aperture of f/8 or faster).
Shutter type Electronically-controlled vertical-travel focal-plane shutter
Shutter speed 1/8000 - 30 s in steps of 1/3 or 1/2 EV, bulb, time, X250
Flash sync speed X=1/250 s; synchronizes with shutter at 1/320 s or slower (flash range drops at speeds between 1/250 and 1/320 s)
Release mode Single frame (S), continuous low speed (CL), continuous high speed (CH), quiet shutter-release (Q), self-timer, mirror up (MUP); interval timer photography supported
Approximate frame advance rate JPEG and 12-bit NEF (RAW) images recorded with DX (24 x 16) selected for Image area CL: 1 - 6 fps, CH: 6 fps JPEG and 12-bit NEF (RAW) images recorded with 1.3x (18 x 12) selected for Image area CL: 1 - 6 fps, CH: 7 fps 14-bit NEF (RAW) images recorded with DX (24 x 16) selected for Image area CL: 1 - 5 fps, CH: 5 fps 14-bit NEF (RAW) images recorded with 1.3x (18 x 12) selected for Image area CL: 1 - 6 fps, CH: 6 fps
Self-timer 2 s, 5 s, 10 s, 20 s; 1 - 9 exposures at intervals of 0.5, 1, 2, or 3 s
Remote control modes (ML-L3) Delayed remote, quick-response remote, remote mirror-up
Exposure - Metering mode TTL exposure metering using 2016-pixel RGB sensor
Exposure - Metering method Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses); color matrix metering available with non-CPU lenses if user provides lens data Center-weighted: Weight of 75% given to 8 mm circle in center of frame. Diameter of circle can be changed to 6, 10, or 13 mm, or weighting can be based on average of entire frame (non-CPU lenses use 8-mm circle) Spot: Meters 3.5 mm circle (about 2.5% of frame) centered on selected focus point (on center focus point when non-CPU lens is used)
Exposure - Range (ISO 100, f/1.4 lens, 20 °C/68 °F) Matrix or center-weighted metering: 0 - 20 EV Spot metering: 2 - 20 EV
Exposure meter coupling Combined CPU and AI
Exposure – Mode Auto modes (auto; auto (flash off)); programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M); scene modes (portrait; landscape; child; sports; close up; night portrait; night landscape; party/indoor; beach/snow; sunset; dusk/dawn; pet portrait; candlelight; blossom; autumn colors; food); special effects modes (night vision; color sketch; miniature effect; selective color; silhouette; high key; low key); U1 (user settings 1); U2 (user settings 2)
Exposure compensation Can be adjusted by -5 - +5 EV in increments of 1/3 or 1/2 EV in P, S, A, and M modes
Exposure bracketing 2 - 5 frames in steps of 1/3, 1/2, 2/3, 1, 2, or 3 EV
Flash bracketing 2 - 5 frames in steps of 1/3, 1/2, 2/3, 1, 2, or 3 EV
White balance bracketing 2 - 5 frames in steps of 1, 2, or 3
ADL bracketing 2 frames using selected value for one frame or 3 frames using preset values for all frames
Exposure lock Luminosity locked at detected value with AE-L/AF-L button
ISO sensitivity (Recommended Exposure Index) ISO 100 - 6400 in steps of 1/3 or 1/2 EV. Can also be set to approx. 0.3, 0.5, 0.7, 1, or 2 EV (ISO 25600 equivalent) above ISO 6400; auto ISO sensitivity control available
Active D-Lighting Auto, Extra high, High, Normal, Low, Off
Focus - Autofocus Nikon Advanced Multi-CAM 3500DX autofocus sensor module with TTL phase detection, fine-tuning, 51 focus points (including 15 cross-type sensors; the center focus point is available at apertures slower than f/5.6 and faster than f/8 or at f/8), and AF-assist illuminator (range approx. 0.5 - 3m/1 ft 8 in. - 9 ft 10 in.)
Focus - Detection range -2 - +19 EV (ISO 100, 20 °C/68 °F)
Focus - Lens servo Autofocus (AF): Single-servo AF (AF-S); continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status Manual focus (M): Electronic rangefinder can be used
Focus point Can be selected from 51 or 11 focus points
AF-area mode Single-point AF; 9-, 21-, or 51-point dynamic-area AF, 3D-tracking, auto-area AF
Focus lock Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing AE-L/AF-L button
Flash - Built-in flash Auto, portrait, child, close up, night portrait, party/indoor, pet portrait, color sketch: Auto flash with auto pop-up P, S, A, M, food: Manual pop-up with button release
Flash - Guide Number Approx. 12/39, 12/39 with manual flash (m/ft, ISO 100, 20 °C/68 °F)
Flash control TTL: i-TTL flash control using 2016-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600, or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted metering, standard i-TTL flash for digital SLR with spot metering
Flash mode Auto, auto with red-eye reduction, auto slow sync, auto slow sync with red-eye reduction, fill-flash, red-eye reduction, slow sync, slow sync with red-eye reduction, rear-curtain with slow sync, rear-curtain sync, off; Auto FP High-Speed Sync supported
Flash compensation -3 - +1 EV in increments of 1/3 or 1/2 EV
Flash-ready indicator Lights when built-in flash or optional flash unit is fully charged; flashes after flash is fired at full output
Flash - Accessory shoe ISO 518 hot-shoe with sync and data contacts and safety lock
Nikon Creative Lighting System (CLS) Advanced Wireless Lighting supported with: - SB-910, SB-900, SB-800, or SB-700 as a master flash and SB-600 or SB-R200 as remotes, or SU-800 as commander - Built-in flash can serve as master flash in commander mode. Auto FP High-Speed Sync and modeling illumination supported with all CLS-compatible flash units except SB-400; Flash Color Information Communication and FV lock supported with all CLS-compatible flash units
Flash - Sync terminal AS-15 sync terminal adapter (available separately)
White balance Auto (2 types), incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual (up to 6 values can be stored, spot white balance measurement available during live view), choose color temperature (2500 K - 10000 K), all with fine-tuning
Live View - Modes Live view photography (still images), movie live view (movies)
Live View - Lens servo Autofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F) Manual focus (M)
Live View - AF-area mode Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF
Live View - Autofocus Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
Movie - Metering TTL exposure metering using main image sensor
Movie - Metering method Matrix
Movie - Frame size (pixels) and frame rate 1920 x 1080; 60i (59.94 fields/s)/ 50i (50 fields/s) * 1920 x 1080; 30 p (progressive), 25p, 24p 1280 x 720; 60p, 50p Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps respectively; options support both high and normal image quality * Available only when 1.3x (18 x 12) is selected for Image area. Sensor output is about 60 or 50 fps.
Video file format MOV
Video compression H.264/MPEG-4 Advanced Video Coding
Audio recording format Linear PCM
Audio recording device Built-in or external stereo microphone; sensitivity adjustable
Monitor 8-cm/3.2-in., approx. 1229 k-dot (VGA; 640 x 4 x 480 = 1,228,800 dots), TFT monitor with approx. 170° viewing angle, approx. 100% frame coverage, and brightness adjustment
Playback Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, movie playback, photo and/or movie slide shows, histogram display, highlights, photo information, GPS data display, and auto image rotation
Interface - USB Hi-Speed USB
HDMI output HDMI mini connector (Type C)
Accessory terminal Wireless remote controller: WR-1 and WR-R10 (available separately) Remote cord: MC-DC2 (available separately) GPS unit: GP-1 (available separately)
Audio input Stereo mini-pin jack (3.5 mm diameter; plug-in power supported)
Audio output Stereo mini-pin jack (3.5 mm diameter)
Supported languages Arabic, Bengali, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Persian, Polish, Portuguese (European and Brazilian), Romanian, Russian, Spanish, Swedish, Tamil, Thai, Turkish, Ukrainian, Vietnamese
Power source - Battery One rechargeable Li-ion EN-EL15 battery
Battery pack Optional MB-D15 multi-power battery pack with one rechargeable Nikon EN-EL15 Li-ion battery or six AA alkaline, Ni-MH, or lithium batteries
AC adapter EH-5b AC adapter; requires EP-5B power connector (available separately)
Tripod socket 1/4 in. (ISO 1222)
Dimensions (W x H x D) Approx. 135.5 x 106.5 x 76 mm (5.3 x 4.2 x 3.0 in.)
Weight Approx. 765 g (1 lb 11.0 oz) with battery and memory card but without body cap; approx. 675 g (1 lb 7.8 oz; camera body only)
Operating environment - Temperature 0 °C - 40 °C (+32 °F - 104 °F)
Operating environment - Humidity 85% or less (no condensation)
Supplied accessories EN-EL15 rechargeable Li-ion battery (with terminal cover), MH-25 battery charger, DK-5 eyepiece cap, AN-DC1 strap, UC-E6 USB cable, BS-1 accessory shoe cover, DK-23 rubber eyecup, BF-1B body cap, ViewNX 2 CD, User's Manual
