Introduction

The Olympus M.Zuiko Digital ED 30mm f/3.5 Macro is a new dedicated macro lens for Micro Four Thirds (MFT) cameras. Announced in the run-up to Photokina 2016, the M.Zuiko Digital ED 30mm f/3.5 Macro lens offers a maximum reproduction ratio of 1.25:1, a near-silent focusing mechanism and a close-focus point of 9.5cm / 3.74in. An added bonus is compatibility with the Focus Bracketing feature on selected Olympus cameras. The compact, lightweight lens is available for $299 / £249 in the US and the UK, respectively.

Ease of Use

Olympus M.ZUIKO Digital ED 300mm f/4 IS Pro

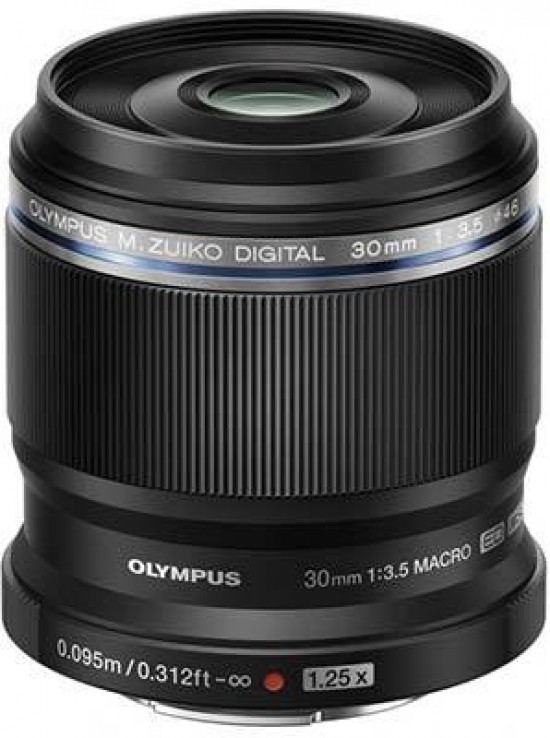

Weighing in at a mere 128 grams (4.52 ounces) and measuring just 57x60mm (2.24"x2.36"), the Olympus M.Zuiko Digital ED 30mm f/3.5 Macro is a truly small and lightweight lens that fits easily in the palm of your hand. Its 40° angle of view is only a few degrees tighter than that of a classic 50mm equivalent standard prime, meaning it can do double duty as a handy walkaround lens.

Olympus M.ZUIKO Digital ED 300mm f/4 IS ProThe Olympus M.Zuiko Digital ED 30mm f/3.5 Macro lens mounted to an Olympus E-M5 body

We tested this lens with the Olympus OM-D E-M5, and found that it balanced perfectly on that camera body. Build quality is decent, with the outer parts being mostly plastic. Unlike the more expensive  M.Zuiko Digital ED 60mm f/2.8 Macro, the 30mm lens does not feature a weather-resistant construction. The focus ring is wide and ribbed, with no hard or soft stops at either end of the focus range. Focusing is fully internal, meaning the lens barrel does not extend on focus.

Olympus M.ZUIKO Digital ED 300mm f/4 IS Pro

In terms of features, the lens is pretty sparse. It doesn't have a distance scale, magnification indicator or a focus limiter switch. Its main claim to fame is a maximum reproduction ratio of 1.25:1, which enables users to completely fill the frame with a subject that's actually smaller than the active image capturing area of a FourThirds sensor – provided you can get close enough. (On a 35mm full-frame camera, you would need a lens with a magnification of 2.5:1 to achieve a similar effect.)

Olympus M.ZUIKO Digital ED 300mm f/4 IS ProFront of the lens

The Olympus M.Zuiko Digital ED 30mm f/3.5 Macro has a fairly small front lens element with a 46mm filter thread, which does not rotate on focus.

Olympus M.ZUIKO Digital ED 300mm f/4 IS ProFront of the lens, isometric view

Olympus M.ZUIKO Digital ED 300mm f/4 IS ProFront of the lens, isometric view

The Olympus M.Zuiko Digital ED 30mm f/3.5 Macro lens doesn't have a built-in image stabiliser. This won't really be a problem for users of Olympus' own compact system cameras, all of which boast a sensor-shift anti-shake mechanism, but Panasonic owners whose cameras lack in-body image stabilisation should be aware that this is a non-stabilised lens.

Olympus M.ZUIKO Digital ED 300mm f/4 IS ProIn your hand

The lens comes with front and rear caps, but no lens hood or storage bag is included.

Olympus M.ZUIKO Digital ED 300mm f/4 IS ProRear of the lens, isometric view

The lens mount is, thankfully, made of metal but it isn't sealed against dust and moisture.

Focal Range

The diagonal angle of view is 40°, i.e. the same as that of a 60mm lens in a 35mm system.

Olympus M.ZUIKO Digital ED 300mm f/4 IS ProField of view at 30mm

Focusing

On the Olympus OM-D E-M5 body we used for this review, the M.Zuiko Digital ED 30mm f/3.5 focused quite quickly for a macro lens – and almost silently. Thanks to an internal focusing mechanism, the lens does not extend on focus. The 46mm filter thread does not rotate, which is good news for users of polarisers and graduated neutral density filters. The focus ring is not mechanically coupled to the moving lens elements, so expect to focus “by wire” even after switching to MF mode. The focus ring is generously sized given the overall dimensions of the lens. As mentioned above, the Olympus M.Zuiko Digital ED 30mm f/3.5 Macro lens does not have a focus limiter.

Chromatic Aberrations

Lateral chromatic aberrations, typically seen as blue or purple fringes along contrasty edges, are very well controlled with this lens. The crops below give you an idea of what you should expect in a worst-case scenario.

Olympus M.ZUIKO Digital ED 300mm f/4 IS Pro Olympus M.ZUIKO Digital ED 300mm f/4 IS Pro

Light Fall-off

Wide open at f/3.5, there's noticeable light fall-off in the corners, but this clears up quickly upon stopping down.

Olympus M.ZUIKO Digital ED 300mm f/4 IS ProVignetting at 30mm

Flare

Ghosting and flare are the Achilles heel of this lens. With the sun in the frame, you can see all sorts of streaking and ghosts, along with a slight but noticeable loss of contrast. A well-designed lens hood would probably help a lot here, but unfortunately none is included.

Olympus M.ZUIKO Digital ED 300mm f/4 IS Pro

Distortion

Geometric distortion is very low, with only a hint of pincushioning seen in the images.

Olympus M.ZUIKO Digital ED 300mm f/4 IS Pro

Macro

At its close-focus point of 9.5cm (3.7in) the lens offers a maximum reproduction ratio of 1.25:1. This means that you can fill the frame with a subject that measures just ~14x10mm, which is quite a bit smaller than the size of the sensor itself. However, this distance is measured from the sensor plane – the actual working distance, as measured from the front element, is about 1.5cm, which means that properly lighting your subject becomes difficult when working at maximum magnification (not to mention that insects and other small creatures tend to get scared away when you stick the lens that close to them). Therefore most of your macro shots are likely to be somewhere in the 1:4-1:2 range, with the exact reproduction ratio being difficult to check in the absence of a magnification scale. The photo below, which shows a close-up of a battered CompactFlash memory card, shows just how close you can get with a 1.25:1 macro lens on a Micro Four Thirds camera.

Olympus M.ZUIKO Digital ED 300mm f/4 IS ProClose-up performance

Bokeh

Bokeh is a word used for the out-of-focus areas of a photograph, and is usually described in qualitative terms, such as smooth / creamy / harsh etc. In the M.Zuiko Digital ED 30mm f/3.5 Macro lens, Olympus employed an iris diaphragm with seven rounded aperture blades, which has resulted in an okay-ish – but not outstanding –  bokeh, as you can see in the crops below.

Olympus M.ZUIKO Digital ED 300mm f/4 IS Pro Olympus M.ZUIKO Digital ED 300mm f/4 IS Pro

Olympus M.ZUIKO Digital ED 300mm f/4 IS Pro Olympus M.ZUIKO Digital ED 300mm f/4 IS Pro

Sharpness

In order to show you how sharp this lens is, we are providing 100% crops on the following page.
