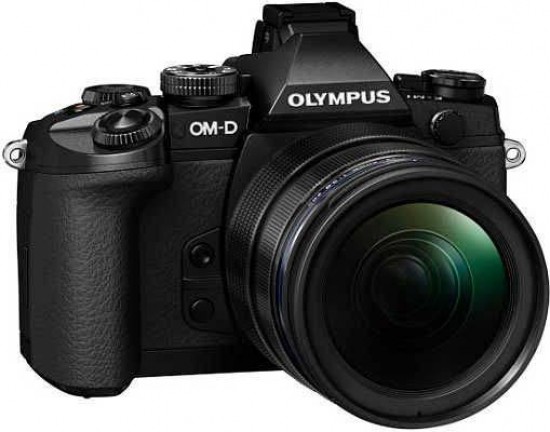

Olympus OM-D E-M1 Review

4.5
November 13, 2013 | Zoltan Arva-Toth |

Specifications

Type

  • Body material

    Magnesium alloy body

  • Lens mount

    Micro Four Thirds

Image Sensor

  • Type

    4/3'' Live MOS sensor

  • Effective pixels

    16.3 Megapixels

  • Filter array

    Primary colour filter (RGB)

  • Aspect ratio & area

    4:3 / 17.3 x 13.0mm

  • Full resolution

    16.8 Megapixels

Engine

  • Type

    TruePic VII

Filter

  • Dust reduction filter

    Supersonic Wave Filter

Characteristics

  • Viewfinder type

    Electronical Viewfinder

  • Pixel number

    2.360K dots

  • Diopter adjustment

    Yes ‑4.0 ‑ +2.0 diopters / built‑in type

  • Field of view

    Approx. 100%

  • Magnification

    Max. 1.48x with a 50mm lens set to infinity at ‑1 dioptre (depending on selected viewfinder style)

  • Eye point

    21mm at ‑1 dioptre from eyepiece lens

  • Style

    3 styles selectable

  • Displayed information

    • Aperture value
    • Shutter speed
    • AF frame (super impose)
    • AF confirmation mark
    • AF lock
    • Auto bracket
    • Battery check
    • Exposure compensation indicator
    • Exposure compensation value indicator
    • Exposure level indicator
    • Exposure mode
    • Flash
    • FP flash
    • IS activating mode
    • Metering mode
    • Number of storable sequential pictures
    • White balance
    • Level Gauge
    • Highlight & Shadow
    • Live Pre-view function
    • Histogram
  • Brightness adjustment

    +/‑ 7 levels

  • Correction of colour temperature

    +/‑ 7 levels

Live View

  • Displayed information

    • Aperture
    • Shutter speed
    • Auto bracket
    • AE lock
    • Focus mode
    • Shooting mode
    • Battery check
    • IS activating mode
    • Internal temperature warning
    • Face / Eye detection mode
    • Record mode
    • ISO
    • Sequential shooting mode
    • White Balance
    • Metering mode
    • Exposure compensation value
    • AF frame display
    • AF confirmation mark
    • Shooting information
    • Spot metering area
    • Super FP
    • Flash status
    • Touch Panel Condition
    • Focal length
    • Eye-Fi condition
    • Flash mode
    • Histogram
    • Level Gauge
    • Highlight & Shadow
    • Focus peaking
  • AF type

    Contrast detection autofocus and phase difference detection autofocus

  • 100% field of view

    Approx. 100%

  • Magnification levels

    5 / 7 / 10 / 14x

Image Stabiliser

  • Type

    Sensor shift

  • Modes

    Five‑dimensional, vertical or horizontal activation

  • Effective Compensation Range

    Up to 5 EV steps

  • Up to 4 EV steps (CIPA)

Focusing System

  • Method

    High‑speed imager AF (Contrast detection / Phase‑difference detection)

  • Focus areas

    81 points / All target, Group target (9‑areas), Single target (normal), Single target (small)

  • 37 points / Phase‑difference detection AF ‑ All target, Group target (9‑areas), Single target (normal), Single target (small)

  • 800 points / Manual selection in Magnified View Mode

  • AF lock

    Yes , Locked by first position of shutter release button in single AF mode, AE/AF lock button (customised)

  • Modes

    • Manual focus
    • Single AF
    • Continuous AF
    • Single AF + MF
    • AF Tracking
  • AF illuminator

    Yes

  • Full time AF

    Yes

  • Manual focus

    Yes , With enlarged focusing area

  • Face Detection extension

    • Eye Detect AF: Off
    • Left side priority
    • Near side priority
    • Right side priority
  • Predictive AF

    Yes

  • AF tracking

    Yes , Available in continuous AF mode

Exposure System

  • Modes

    • Programme automatic
    • Aperture priority
    • Shutter priority
    • Manual
    • Bulb
    • Time
    • i-Auto
    • Scene Modes
    • Art Filter
    • Photo Story
  • Exposure compensation

    +/‑ 5EV ( 1, 1/2, 1/3 steps )

  • Exposure bracketing

    2 / 3 / 5 frames ( +/‑ 1/3, 2/3, 1 EV steps )

  • 7 frames ( +/‑ 1/3, 1/2, 2/3 EV steps )

  • ISO bracketing

    3 frames ( 1/3, 1/2, 1 EV steps )

  • AE lock

    Yes

  • My Mode

    4 settings storable

  • Enhancement function

    Shadow Adjustment Technology

Scene Modes

  • Number of scene modes

    24

  • Modes

    • Portrait
    • e-Portrait
    • Landscape
    • Landscape with Portrait
    • Macro
    • Sports
    • Night Scene
    • Night Scene with portrait
    • Children
    • High key
    • Low key
    • Digital Image Stabilisation
    • Nature Macro
    • Candle
    • Sunset
    • Documents
    • Panorama
    • Fireworks
    • Beach and Snow
    • Fisheye converter
    • Macro converter
    • 3D
    • Wide converter
    • Hand-held Starlight

Multi-Exposure

  • Max. number of frames

    2 frames (shooting)

  • 3 frames (editing)

  • Auto gain control

    Yes

  • Frame assistance

    Live View

Light Metering

  • Method

    TTL open aperture light metering

  • Zones

    324 zones Multi‑pattern Sensing System

  • Detection range

    0 ‑ 20 EV (17mm f2.8, ISO 100)

  • Modes

    • ESP light metering
    • Spot metering
    • Centre weighted metering
    • Highlight
    • Shadow

Art Filter

  • Modes

    • Pop Art
    • Soft Focus
    • Pale & Light Colour
    • Light Tone
    • Grainy Film
    • Pin Hole
    • Diorama
    • Cross Process
    • Dramatic Tone
    • Gentle Sepia
    • Key Line
    • Water colour
  • Variation / Effect

    Available

Photo Story

  • Modes

    • Fun Frame
    • Standard

Sensitivity

  • Auto

    ISO LOW ‑ 25600 (customisable, default ISO LOW ‑ 1600)

  • Manual

    ISO LOW ‑ 25600 in 1/3 or 1 EV ISO steps

Shutter

  • Shutter type

    Computerised focal‑plane shutter

  • Self timer

    2s / 12s

Shutter Speeds

  • Shutter speed range

    1/8000 ‑ 60s (in 1/3, 1/2, 1 EV steps)

  • Bulb mode

    Up to 30 minutes (selectable longest time in the menu, default: 8 minutes)

White Balance

  • AUTO WB system

    Advanced detection system with Live MOS sensor

  • Manual White balance (One-Touch)

    Yes

  • White balance bracketing

    3 frames / +/‑ 2, 4, 6mired steps

  • One-touch white balance

    2 custom settings can be registered

  • Custom WB

    1 setting can be registered at Kelvin temperature (2000K ‑ 14000K)

  • Preset values

    • Tungsten
    • Flourescent 1
    • Sunlight
    • Flash
    • Overcast
    • Shade
    • Underwater
  • Auto Flash adjustment

    Off / Auto WB / Flash

  • Keep warm colour

    On / Off

Sequence Shooting

  • Speed (H)

    Approx. 10fps

  • Speed (L)

    6.5fps (IS off), 3.5fps (IS on)

  • Max. number of frames

    50 frames (RAW)

  • Up to card capacity (JPG / Large Normal mode)

  • Conditions

    Memory card: Toshiba SDXC UHS‑I card R95 W80 model Premiugate series "Class 10" 8GB

  • Note: Depending on shooting conditions, the sequential shooting speed may reduce speed during shooting.

Image Processing

  • Colour space

    sRGB / AdobeRGB

  • Sharpness + Contrast

    5 levels

  • Contrast

    5 levels

  • Saturation

    5 levels

  • Black & White filter

    Yellow, Orange, Red, Green

  • Black & White toning

    Sepia, Blue, Purple or Green in Black & White mode

  • Picture mode

    i‑Enhance, Vivid, Natural, Portrait, Muted, Monotone, Art Filter

  • Gradation

    4levels (auto, high key, normal, low key)

  • Engine

    TruePic VII

  • Art Filter bracketing

    Available

  • Tele converter effect

    2x

Internal Flash

  • Modes

    • AUTO
    • Manual
    • Manual (Full, 1/4, 1/16, 1/64)
    • Red-eye reduction
    • Slow synchronisation with red-eye reduction
    • Slow synchronisation
    • Slow synchronisation 2nd curtain
    • Fill-in
    • Off
  • Type

    Detachable flash (bundled)

  • Flash compensation

    +/‑ 3 EV ( 1/3, 1/2, 1 EV steps )

  • Guide number

    10 (ISO 200)

  • X-sync speed

    1/320s

External Flash Control

  • X-sync speed

    1/250s / 1/4000s (Super FP Mode)

  • Type

    TTL AUTO, AUTO, MANUAL, FP TTL AUTO, FP MANUAL

  • Modes

    • Auto
    • Red-eye reduction
    • Slow synchronisation
    • 2nd curtain and slow synchronisation
    • Fill-in for exclusive flash
    • Manual
  • Intensity

    +/‑ 3 EV ( 1/3, 1/2, 1 EV steps )

  • Note: Some functions are only available if they are supported by the external flash.

Wireless Flash Control

  • Number of channels

    4 channels

  • Compatible external flash

    FL‑36R, FL‑50R, FL‑300R, FL‑600R

  • Control method

    Triggered and controlled by built‑in flash light

  • Group setting

    4 groups

  • Available when used together with cameras compatible with the Olympus wireless RC flash system.

Monitor

  • Monitor type

    Tiltable LCD ‑ Touch Panel

  • Monitor size

    7.6cm / 3.0'' (3:2)

  • Resolution

    1037000 dots

  • Brightness adjustment

    +/‑ 7 levels

  • Colour balance

    +/‑ 3 levels Vivid (default) / Natural

Level Gauge

  • Detection

    2‑axis

  • Display

    Rear display and viewfinder

Super Control Panel

  • Displayed information

    • Battery indicator
    • Record mode
    • Shutter speed
    • Aperture value
    • Exposure compensation indicator
    • ISO
    • AE bracketing
    • AF frame
    • Focus mode
    • AEL notification
    • Face detection
    • Number of storable frames
    • Metering mode
    • Exposure mode
    • Exposure level view
    • Flash compensation value
    • Colour space
    • Gradation
    • Colour saturation compensation value
    • Sharpness compensation value
    • Contrast compensation value
    • White balance
    • White balance compensation value
    • Noise reduction
    • Flash mode
    • Drive mode
    • Internal temperature warning
    • Histogram

Recording Formats

  • RAW

    12bit

  • RAW & JPEG

    Yes parallel recording

  • JPEG

    Yes

  • Aspect ratio

    4:3 / 3:2 / 16:9 / 6:6 / 3:4

  • MPO (3D)

    Yes

Image Size

  • RAW

    4608 x 3456 compressed / 17MB / frame

  • 4608 x 3456 Fine (compression: 1/4) / 7.5MB / frame

  • 4608 x 3456 Normal (compression: 1/8) / 3.5MB / frame

  • 2560 x 1920 Normal (compression: 1/8) 1.1MB / frame

  • 1024 x 768 Normal (compression: 1/8) / 0.4MB / frame

Still Image Recording

  • EXIF

    2.2

  • PIM

    III

  • DPOF

    Yes

  • DCF

    Yes

Movie Recording System

  • Recording format

    MOV(MPEG‑4AVC/H.264), AVI(Motion JPEG)

  • Image Stabilisation Mode

    Yes Sensor shift

  • HD Movie quality

    Full HD 1920 x 1080 (16:9) 30p, 24Mbps (MOV)

  • Full HD 1920 x 1080 (16:9) 30p, 16Mbps (MOV)

  • HD 1280 x 720 (16:9) 30p, 12Mbps (MOV)

  • HD 1280 x 720 (16:9) 30p, 8Mbps (MOV)

  • HD 1280 x 720 (16:9) / 30fps (AVI Motion JPEG®)

  • Movie quality

    640 x 480 / 30fps (AVI Motion JPEG®)

  • 29min (17Mbps)

  • 14min (SD) / 7min (HD) (AVI Motion JPEG®)*

  • Max. file size

    4GB (AVCHD)

  • 2GB (Motion‑JPEG)

  • Exposure Modes

    • Aperture priority
    • Art Filter
    • Manual
    • Programme automatic
    • Shutter priority
  • * Some Art Filters are excluded

  • Movie effects

    • Multi shot echo
    • One shot echo

Sound Recording System

  • Internal microphone

    Stereo

  • Recording format

    Stereo PCM/16bit, 48kHz, Wave Format Base

  • External microphone

    Optional

  • Image footage

    30s

  • Speaker

    Yes

  • Microphone functions

    • Wind Noise Reduction
    • Recording Volume

View Images

  • Modes

    • Index
    • Calendar
    • Zoom
    • Slide show
    • Movie
    • Single
  • Light box

    Yes

  • Histogram in playback mode

    Yes

  • Shooting information

    Off / On

Erase / Protect / Copy Function

  • Erase modes

    Single, All, Selected

  • Image protect mode

    Single frame, Selected frames, All Frames, Release protect (Single/All selected)

Image Editing

  • RAW data edit

    Yes

  • Red-eye reduction

    Yes

  • Sepia

    Yes

  • Black & White

    Yes

  • Resize

    Yes

  • Correction of saturation

    Yes

  • Shadow Adjustment

    Yes

  • Trimming

    Yes

  • e-Portrait

    Yes

Menu

  • Menu languages in camera

    English, French, German, Spanish, Italian, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swedish, Norwegian, Finnish, Croatian, Slovenian, Hungarian, Greek, Slovak, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian

Customisation Options

  • Fn Button

    Yes

  • My Mode

    4 settings storable

  • Factory reset

    Full / Standard

  • Programmable button

    Yes

Interface

  • Media

    SD Memory Card (SDHC, SDXC, UHS‑I compatible) Class 6 is recommended for Movie shooting

  • HDMI™

    Yes Micro connector (Type D) *

  • USB 2.0 High Speed

    Yes

  • Combined V & USB output

    Yes NTSC or PAL selectable

  • Microphone jack

    3.5 ø mm mini‑jack

  • Connection

    Accessory Port 2

  • Synchro socket

    Yes

  • Wireless connectivity

    • Bluetooth®
    • WiFi
  • * "HDMI", the HDMI logo and "High‑Definition Multimedia Interface" are trademarks or registered trademarks of HDMI Licensing LLC.

Wi-Fi Functions

  • Easy Connection

    QR code setting

  • Wireless Shooting

    • Live View
    • Power off
    • Rec View
    • Self timer
    • Touch AF & Shutter
    • P/A/S/M exposure modes
    • Bulb mode

Other Features

  • Weatherproof

    Yes

  • Dustproof

    Yes

  • Freezeproof

    Freezeproof down to ‑10°C

Power Supply

  • Battery

    Lithium‑Ion Battery

  • Sleep mode

    1, 3, 5, 10 min. and off selectable.

  • Live View shooting

    Approx. 330images (50% with Live View)

Environment

  • Temperature

    ‑10 ‑ 40°C operating temperature / ‑20 ‑ 60°C storage temperature

  • Humidity

    30 ‑ 90% operation humidity / 10 ‑ 90% storage humidity

Size

  • Dimensions (W x H x D)

    130.4 x 93.5 x 63.1mm (without protrusions)

  • Weight

    497g (including battery and memory card)

  • 443g (body only)

Entry Tags

hd, compact, review, photos, samples, images, 16 megapixel, preview, compact system camera, hdmi, lens, test, jpeg, nikon, video, movie, camera, wireless, full hd, manual, photo, RAW, olympus, DSLR, touchscreen, micro four thirds, 10fps, prosumer, omd, em1, o-md, om-d e-m1, e-m1

Tracker Pixel for Entry
