Olympus TG-5 Review

June 21, 2017 | Gavin Stoker | Rating star Rating star Rating star Rating star

Introduction

The Olympus TG-5 is a brand new tough compact digital camera designed to capture images in the most challenging conditions. Successor to the TG-4, the new TG-5 has a 12-megapixel backlit CMOS sensor, an improved 25-100mm (eq.) f/2.0-4.9 lens with a new Anti-Fog Lens Cover Glass, a GPS sensor, manometer, compass and temperature sensor, and integrated WiFi. The TG5 camera is waterproof to depths of 50 feet (15 metres), shockproof from 7 feet (2.1 metres), crushproof to 220 pounds of force (100 kilograms of force), freezeproof down to 14°F (-10°C), and dustproof. The Olympus TG-5 can record 4K videos at 30fps or Full HD movies at up to 120fps for slow-motion playback. The Olympus TG-5 costs £399.99 / $449.99.

Ease of Use

By way of example with regard to how long the gaps have got between one generation of a camera and the next, we examined the new, toughened Olympus TG-5’s predecessor the TG-4 way back in July 2015. At one time, six months between updates was the norm – a two-year gap would have been unheard of, and long enough for anyone paying attention to surmise the series had simply been shelved. This is both a sign of the slowing of the market perhaps, but also, more positively, an indicator of the fact that technology has improved to a point where tweaks made to existing products are now subtle enhancements, rather than revolutionary overhauls. Put simply, the performance of most digital cameras is already good enough for the purpose they’re made for. So, with the above in mind, what has Olympus done to differentiate the toughened TG-5 from the TG-4, which we awarded a respectable 4 out of 5 (generous for us, for what is essentially a point-and-shoot compact at heart) two years ago?

Well, for a start, the solid-feel new version – available in eye catching red or sophisticated-in-appearance black – now offers 4K video capture, along with 120fps Full HD clips, while being £50 more expensive than its forebear on launch – the TG-5 possessing a manufacturer’s UK asking price of £399.99. According to Olympus we also have a new sensor and processor this time around, the latter being a TruePic VIII, although, curiously, the headline resolution has been dropped from the 16 megapixels of its predecessor to 12MP this time around, presumably to limit appearance of image noise/grain at higher ISO settings. Naturally you’re only really going to be considering buying this to achieve images that would never otherwise be possible (unless you didn’t mind possibly damaging your camera or smartphone), so a few pixels less isn’t a deal breaker on TG-5; though it’s an interesting move all the same.

Olympus is hoping that the reinforced camera’s range of features will ensure it appeals to diverse markets, not just the snowboarding/water rafting thrill junkie. For example, as well as the standard weather/water and destruction proofing, it features the helpful (on paper at least) likes of a bright/fast f2 lens for low light photography (as did the TG-4), plus an anti fog filter, the latter being amusingly pitched as double glazing for the camera. Its destruction proof capabilities include the fact that the TG-5 is shock-proofed against drops from 2.1 metres in height, crush proofed to withstand weights of 100Kg, and can be utilised in temperatures down to minus 10°C. Additionally there is dust proofing.

Olympus TG-5

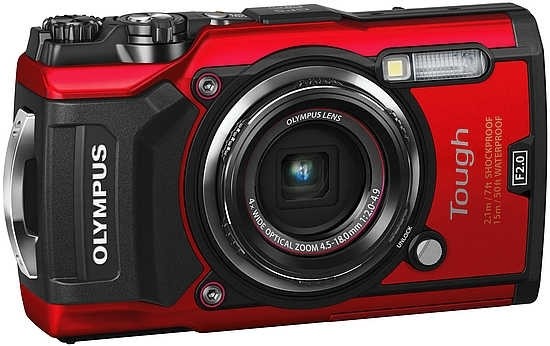

Front of the Olympus TG-5

It’s worth noting that all of these last specifications identically match those of its two-year-old predecessor, as does the fact that a Raw file capture option is also available, unusual for a compact at this price point. We also get Olympus’ standard-issue Art Filter digital effects modes, plus specific underwater friendly modes in time for the summer holidays – such as one for underwater HDR capture.

Aside from a new sensor and processor this time around, another claimed tweak is that controls have been made easier to use if wearing gloves, but to be frank we found its backplate buttons to be as tiny as ever… a niggle we mentioned last time. Manageable without gloves, yes, but seemingly impossible with (unless we’re talking the fingerless variety). Still, its maker has promised additional housings, conversion lenses and adapters for the plucky point-and-shooter, which presumably may be easier to handle.

Like its forebears, at least the Olympus TG-5 otherwise appears sturdily built for the job. The front has that slightly over-engineered design, its look redolent of a lot of toughened cameras – a visual style Olympus arguably pioneered with previous iterations. It arrives complete with visible screws to give it that industrial, no-nonsense look. Top right of the lens is a lozenge shaped window housing the flash and AF assist lamp (flash settings being standard auto and forced flash/fill-in option, along with a red eye setting, off and slow sync options), while a press of ‘unlock’ button bottom right of the lens lets you unscrew the prominent lens ring.

Olympus TG-5
Front of the Olympus TG-5

The camera grip is also prominent here, if not exactly pronounced enough that a firm hold can be achieved, even when hands are dry. But we appreciated the fact that its manufacturer has tried to maintain a chassis size that is still pocket-able – whilst at the same time reinforced, complete with double lock mechanism on the side panel that houses the USB and HMDI output ports, and also at the base, the latter protecting the compartment housing both rechargeable lithium ion battery and vacant slot for the insertion of an SD card. Official dimensions for the TG-5 are 113x66x31.9mm, just marginally bigger than the TG-4’s quoted size of 65.9x31.2x111.5mm. The camera now weighs 250g with battery and card (as opposed to 247g for the TG-4) – said battery charged within the camera itself, rather than a standalone mains charger being provided. In fairness this omission is now the case with most compacts.

The Olympus TG-5 sports an internal zoom mechanism, so that at no point does the lens actually protrude from the body, where it may potentially be knocked or damaged if the camera itself is dropped. Toggle the zoom lever that surrounds the embedded shutter release button on the camera’s top plate and it glides from maximum wide angle setting to extreme telephoto in all of three seconds. The featured zoom is, incidentally, the equivalent of a wide-ish angle 25-100mm on a 35mm film camera, with macro shots up to 1cm from the subject achievable. Lens aperture runs from f/2 at the wideangle end to f/4.9 at the telephoto end (maximum zoom). Again, this spec hasn’t altered at all from the TG-4, before it.

With no eye level viewfinder, images are composed via a 3-inch, 460K dot resolution LCD at the rear which is sufficiently clear for a camera of its ilk – and also is of exactly the same specification as that found on its predecessor two years ago. This iteration likewise features a protective panel, perhaps just one of the reasons why touch screen control isn’t offered on this model – aside from the fact that on-screen menu selections are bunched quite close together, so it would be tricky to accurately select what you wanted unless you possessed pencil-thin fingers.

The top of the Olympus TG-5 is reasonably straightforward – the shutter release and zoom lever being the most prominent features, to the right of which is an unmarked DSLR-like control dial. A small, tightly ridged on/off power button sits to the left of the shutter release button, if viewing the camera from the back and looking down on the top – a feature obviously designed for ease of use when operating the camera with wet fingers. We’d imagine this small button would be nigh impossible to utilise if you were wearing ski gloves.

Olympus TG-5
Rear of the Olympus TG-5

This being a marriage of both action camera and travel camera, we get built-in GPS as well as Wi-Fi, a top plate logo alerting us to the inclusion of both. To the left of this again are a pair of pin pricks about a centimetre and a half apart, indicating the presence of stereo audio capture, whilst just set back from this is a further lever marked ‘log’, in order to log the location of where your shots are being taken, if so desired.

Squeeze the on/off button and the Olympus TG-5 nigh instantly powers up. The TG-4 was ready for action in just over a second, so this latest iteration feels, to us, slightly faster in response. We’d have to say it is as quick as we could hope for, the rear LCD blinking into life and the lens audibly adjusting. This is encouraging as life moves pretty fast… and we don’t want to miss that golden moment.

Squeeze the shutter release half way and the Olympus TG-5 locks on a subject in the blink of an eye. Press the shutter release button down fully and image capture is also commendably swift, the screen freezing for barely a second, whereas on the TG-4 we’d noted a two second wait. So, overall, the TG-5 does feel like a slightly speedier affair.

As we’ve noted this time around, maximum stills capture resolution is 12 effective megapixels from a 12.7 MP 1/2.3-inch CMOS chip, whereas last time it was 16 megapixels from a sensor of the same physical dimensions. This time around we do get an upgrade to 4K video, though there remains the option to also shoot Full HD 1080p video, saved in easy-to-access and display Motion JPEG format. Light sensitivity also appears to have been improved – or at least the core ISO range extended, as here we get as high as ISO12800 equivalent manually selectable in increments, rather than it topping out at the usual ISO6400. Or we can leave the camera on auto to achieve wholly competent results.

Olympus TG-5
The Olympus TG-5 In-hand

We need to access the above via press of the ‘OK’ button located in the middle of a familiar four-way control pad on the Olympus TG-5’s backplate. This brings up a toolbar of the right hand side of the LCD screen. Then it’s just a matter of tabbing down to the desired option and implementing it.

This being an Olympus camera we also get the creative extra of a bunch of Art Filter digital effects modes; useful should there be the wish for these to be implemented and wedded to an image at the point of capture. Here these are the familiar Pop Art, Soft Focus, Pale & Light, Light Tone, Grainy Film, Pin Hole, Diorama, Cross Process, Gentle Sepia, Dramatic Tone, Key Line, Water colour, Vintage and Partial Colour… meaning that the cute-sy ‘Sparkle’ option appears to have been jettisoned this time around.

Generally as regards the backplate, the function of the controls is again obvious. As with its predecessor, we get a dedicated video record button top right, located where it ergonomically falls under the thumb, activated with a direct press of the thumbnail, with a half penny sized shooting mode wheel located sitting just below, ready for a spin. On said dial we get a Program and Aperture Priority mode, but not a dedicated shutter priority or manual option – although there are two available custom settings adjacent for quick and easy access to preferred choices.

Seeing as the Olympus TG-5 is made for messing about in the water, among other pursuits, there is also a dedicated underwater setting that even includes a HDR option among its menu choices. That’s admittedly pretty cool. Sitting next to this is the microscopic mode, for those seeking extreme close ups of detail and texture. Next up is scene mode and here there is the usual smattering of pre-optimised choices, selectable by highlighting one of the image examples displayed on screen. There are five options here which each have sub-menus with further choices – People, Nightscapes, Motion, Scenery and Indoors. Along with the above we also get a fully Auto setting on the dial for when we do just want to point and shoot and let the camera decide what how to best handle the conditions or subject at the time; like any digital camera these days it’s consistently accurate enough for most people to not want to deviate from this setting.

Olympus TG-5
Top of the Olympus TG-5

The smaller lozenge-shaped buttons on the back plate to the right of the LCD, of which there are three, not counting the four-way control pad with its central OK button, fall under the thumb of the right hand when gripping the camera in your palm.

From the top these buttons are marked ‘info’, playback and menu, the latter of which also doubles up as the Wi-Fi activation button. This is the same set up as on 2015’s TG-4. Pressing info will bring up a live histogram, as well as an electronic spirit level. A press of ‘menu’ meanwhile brings up two folders’ worth of basic stills camera settings, along with a separate folder/screen’s worth of video options plus a single screen’s worth of set up options.

Located on the four way control pad near the base of the Olympus TG-5 back, for tabbing through menu settings, are further settings for adjusting exposure compensation (here the modest +/- 2EV), selecting flash setting and also self timer/burst shooting options. As well as two or 12 seconds for the self-timer, we also get a custom setting, plus there are sequential High (max 20fps) and Low burst shooting options.

With the battery compartment found at the base of the Olympus TG-5, beneath a double lock door, it feels well protected against any ingress of unwanted elements or fluids. Power lasts for around 300 shots from a full charge – again exactly the same as the prior TG-4. Inevitably found next to this is a screw thread for attaching the camera to a tripod, or, for the more adventurous, mounting it to a rig of some sort.

Image Quality

All of the sample images in this review were taken using the 16 megapixel Fine JPEG setting, which gives an average image size of around 6Mb.

Whilst by virtue of the small-ish 1/2.3-inch sensor at its heart, the Olympus TG-5 is a snapshot camera, when there’s plenty of sunlight around the pictures delivered impress none-the-less, with the regular natural colour menu option able to be boosted should you so wish via the camera’s built-in menu toolbar. Even on default settings, on brighter days, primary colours – particularly blues and greens – really zing, while, under ideal conditions, images are contrast rich for the most part. There’s little more, if anything, that you need to do save point and shoot with this one.

Inevitably perhaps there’s some slight softening at the the edges of the frame when shooting at default maximum 25mm equivalent wideangle setting, but only noticeable if examining closely. At telephoto end of the zoom images are reasonably clear too. An issue with having an internally stacked zoom is that occasionally fingertips can stray into shot when you’re gripping the camera with both hands, although the central positioning of the lens ensures this is only an occasional, rather than regular, visual blight. Under such conditions instances of purple pixel fringing are kept reasonably in check. Indeed, they’re only really noticeable if you’re deliberately searching for them.

In terms of low light shooting, as with pretty much any compact camera with a 1/2.3-inch sensor, you wouldn’t normally want to stray above ISO800 or ISO1600 at a push, though this one pushes the ISO range beyond that, backed up by the brighter than average lens for its class. That aside, inevitably shots towards the maximum selectable setting become distinctly soft, until the point of an equivalent ISO12800, whereupon shots resemble fourth generation colour photo copies, or a shaky smartphone snap. Whilst we didn’t expect miracles from the TG-5, it’s perfectly usable.

Noise

There are 8 ISO settings available on the Olympus TG-5. Here are some 100% crops which show the noise levels for each ISO setting for both JPEG and RAW.

JPEG

RAW

ISO 100 (100% Crop)

ISO 100 (100% Crop)

iso100.jpg iso100raw.jpg


ISO 200 (100% Crop)

ISO 200 (100% Crop)

iso200.jpg iso200raw.jpg


ISO 400 (100% Crop)

ISO 400 (100% Crop)

iso400.jpg iso400raw.jpg


ISO 800 (100% Crop)

ISO 800 (100% Crop)

iso800.jpg iso800raw.jpg


ISO 1600 (100% Crop)

ISO 1600 (100% Crop)

iso1600.jpg iso1600raw.jpg


ISO 3200 (100% Crop)

ISO 3200 (100% Crop)

iso3200.jpg iso3200raw.jpg


ISO 6400 (100% Crop)

ISO 6400 (100% Crop)

iso6400.jpg iso6400raw.jpg


ISO 12800 (100% Crop)

ISO 12800 (100% Crop)

iso12800.jpg iso12800raw.jpg

Focal Range

The Olympus TG-5 has a 4x optical zoom which starts at 25mm and zooms out to a modest 100mm.

25mm



100mm


Chromatic Aberrations

The Olympus TG-5 exhibited some purple fringing effects in high-contrast situations, as shown below.

Chromatic Aberrations 1 (100% Crop)


Macro

The Olympus TG-5 has a Supermacro mode on its command dial which you need to switch to in order to focus down to 1cm. We found that the main issue with this mode is getting enough light between the lens and the subject. If you don't use the Supermacro mode, the closest that the TG-5 will focus to is 10cm, which isn't a useful close focusing result. However, it has to be noted that the camera can focus to 10cm even at full zoom, which is very useful for sending backgrounds out of focus.

Macro


Flash

With the flash turned off, the Olympus TG-5 doesn't show any obvious signs of vignetting at wide-angle or full zoom. However, it does occur when the flash is on. Certainly at wide-angle, at least. It's less so at full zoom, but on a plain white wall, it's still noticeable.

Flash On

ISO 64


Flash Red-eye Reduction

ISO 64

Night

The Olympus TG-5 has a dedicated Night scene mode in the Scenes setting on the command dial. The advantage of using this mode is that the camera is allowed to select a longer shutter speed than when in Program mode. The latter meaning you have to select a higher ISO in order to get a balanced exposure. The camera will also assume you're supporting the camera, so will choose a low ISO.

Night


Sample Images

This is a selection of sample images from the Olympus TG-5 camera, which were all taken using the 12 megapixel Fine setting. The thumbnails below link to the full-sized versions, which have not been altered in any way.

Sample RAW Images

The Olympus TG-5 enables users to capture RAW and JPEG format files. We've provided some Olympus RAW (ORF) samples for you to download (thumbnail images shown below are not 100% representative).

Sample Movie & Video

This is a sample movie at the highest quality setting of 3840x2160 pixels at 30 frames per second. Please note that this 37 second movie is 445Mb in size.

Product Images

Olympus TG-5

Front of the Olympus TG-5


Olympus TG-5

Side of the Olympus TG-5


Olympus TG-5

Side of the Olympus TG-5


Olympus TG-5

Rear of the Olympus TG-5


Olympus TG-5

Top of the Olympus TG-5


Olympus TG-5

Bottom of the Olympus TG-5


Olympus TG-5

Side of the Olympus TG-5


Olympus TG-5

Side of the Olympus TG-5


Olympus TG-5

Front of the Olympus TG-5



Olympus TG-5

Memory Card Slot / Battery Compartment


Olympus TG-5

Front of the Olympus TG-5

Conclusion

The Olympus TG-5 is best viewed as a take-anywhere, shoot anything travel and action camera combined. Olympus has – for the most part, at least – taken the old ‘if it ain’t broke, don’t fix it’ approach to this latest generation of ‘toughened’ model, which features mostly identical specification, give or take, to its TG-4 model from a couple of years earlier, whilst the newer model adds £50 to the original price tag. Whilst it’s still a capable camera of its type and therefore worth investigation if you’re not already an existing Olympus Tough model owner, we can’t really see why previous owners would want to apply here, even if this new model is fractionally faster, in our opinion, as regards its operational response times. This is partly due, no doubt, to its latest generation processor.

The Olympus TG-5 is certainly one of the better toughened-construction cameras we’ve used and one that hasn’t been unduly compromised by the fact that it has indeed been reinforced. Whether you think it’s worth spending £400 on what is largely a point and shoot digital camera, albeit one ready for battle, will depend on your specific requirements. But it is a capable, consistent performer, despite the small sensor.

4 stars

Ratings (out of 5)
Design 4
Features 3.5
Ease-of-use 4
Image quality 4
Value for money 3.5

Main Rivals

Listed below are some of the rivals of the Olympus TG-5.

Canon PowerShot D30

The Canon PowerShot D30 is an action compact camera that's waterproof to an impressive 25m, as well as being dust, freeze and shock proof. The Canon D30 also offers12 megapixels, a 5x zoom, 1080p HD video, built-in GPS and a 3-inch screen. Read our in-depth Canon PowerShot D30 review now...

Fujifilm FinePix XP90

The Fujifilm FinePix XP90 is a tough water, freeze, shock and dust proof compact camera. The XP90 offers a 16.4 million pixel 1/2.3 inch BSI-CMOS sensor, built-in wi-fi, 10fps burst shooting, 1080i HD movies, a 5x zoom lens and a 3 inch LCD screen. Read our Fujifilm FinePix XP90 review now...

Nikon Coolpix AW130

The Coolpix AW130 is Nikon's latest all-action compact camera. The 16 megapixel Nikon AW130 features a 5x zoom lens, 3 inch OLED 921K-dot screen, built-in GPS. NFC and wi-fi, 8fps burst shooting and can record full 1080p video. Read our Nikon Coolpix AW130 review to find out if it's the right tough camera for you...

Olympus TG-4

The Olympus TG-4 is a new flagship water, freeze, shock and dust proof compact camera for 2015. Boasting a 25-100mm equivalent f/2.0-4.9 lens, the 16 megapixel TG-4 also offers Raw file support, built-in wi-fi and GPS connectivity, 1080p HD movies, a 4x zoom lens and a 3 inch OLED screen. Read our Olympus TG-4 review to find out what this tough camera is capable of...

Panasonic Lumix DMC-FT5

The Panasonic Lumix DMC-FT5 is a new freeze, shock, water and dust proof camera. The well-appointed Panasonic FT5 also features built-in GPS, wi-fi and NFC functionality, a compass, altimeter and barometer, 4.6x zoom, 1920x1080 full-HD movie recording and a 16 megapixel sensor. Read our Panasonic Lumix DMC-FT5 review to find out if this is the best do-it-all camera for your family....

Ricoh WG-5 GPS

The Ricoh WG-5 GPS is a new shock, freeze, dust, water and crush proof compact camera. The Ricoh WG-5 GPS offers a 16 megapixel Backside Illumination CMOS sensor, a 4x zoom lens with f/2 aperture, Full HD movie recording and built-in LED macro lights. Available for £259.99 / $379.95, read our in-depth Ricoh WG-5 GPS review now...

Review Roundup

Reviews of the Olympus TG-5 from around the web.

cameralabs.com »

There isn’t a better rugged waterproof compact around than the Olympus TOUGH TG-5. Like all great cameras it gets the basics right - a bright, good quality 25-100mm f2 - 4.9 lens paired with a quality 12 Megapixel sensor and high performance TruePic VIII processor. It builds on that with a great set of features and shooting modes, including Pro capture continuous shooting, 4K video, RAW support, and superb macro modes. Finally, it provides the control you need to make the most of those features, whatever the environment. The only downside is the poor performance of the movie continuous AF.
Read the full review »

Specifications

Image Sensor

  • Effective pixels

    12 Megapixels

  • Filter array

    Primary colour filter (RGB)

  • Full resolution

    12.7 Megapixels

  • Type

    1/2.33'' CMOS

Lens

  • Optical zoom

    4x (WIDE)

  • Focal length

    4.5 - 18.0mm

  • Focal length (equiv. 35mm)

    25 - 100mm

  • Structure

    9 lenses / 7 groups

  • Aspherical glass elements

    3

  • Maximum aperture

    2.0 - 4.9

  • Filter diamater

    40.5mm

Monitor

  • Monitor type

    LCD

  • Monitor size

    7.6cm / 3'' (3:2)

  • Resolution

    460000 dots

  • Brightness adjustment

    +/- 2 levels

  • Frame assistance

    Yes

  • Protection panel

    Yes

Focusing System

  • Method

    TTL iESP auto focus with contrast detection

  • Modes

    • iESP
    • Face Detection AF
    • Spot
    • AREA
    • AF Tracking
  • Selective Target

    Yes

  • Standard mode

    0.1m - ∞ (wide) / 0.1m - ∞ (tele)

  • Super Macro Mode

    Closest focusing distance: 1cm

  • Microscope Mode

    Zoom capability while being in Super Macro Mode

  • AF lock

    Yes

  • AF illuminator

    Yes

Light Metering

  • Histogram in shooting mode

    Yes

  • Modes

    • ESP light metering
    • Spot metering

Exposure System

  • Shutter speed

    1/2 - 1/2000s / < 4s (Night scene / A mode)

  • Exposure compensation

    +/- 2 EV / 1/3 steps

  • Enhancement function

    Mechanical Image Stabiliser (Sensor shift)

  •

    Advanced Face Detection Technology

  •

    Shadow Adjustment Technology

  • Modes

    • i-Auto
    • Programme automatic
    • Aperture priority
    • Custom shooting
    • Underwater
    • Microscope
    • Scene Modes
    • Art Filter
    • Movie

Scene Modes

  • Number of scene modes

    16

  • Modes

    • Portrait
    • e-Portrait
    • Landscape
    • Landscape with Portrait
    • Hand-held Starlight
    • Night Scene
    • Night Scene with portrait
    • Children
    • Sports
    • Candle
    • Sunset
    • Fireworks
    • Beach and Snow
    • Panorama
    • Live Composite
    • Backlight HDR

Art Filter

  • Modes

    • Pop Art
    • Soft Focus
    • Pale & Light Colour
    • Light Tone
    • Grainy Film
    • Pin Hole
    • Diorama
    • Cross Process
    • Gentle Sepia
    • Dramatic Tone
    • Key Line
    • Water colour
    • Vintage
    • Partial Colour*

Sensitivity

  • Auto

    AUTO

  • Manual

    ISO 100 - 12800

White Balance

  • AUTO WB system

    Yes

  • Preset values

    7

  • One-touch white balance

    4 custom settings can be registered

  • Custom WB

    1 setting can be registered at Kelvin temperature (2000K - 14000K)

Internal Flash

  • Modes

    • AUTO
    • Red-eye reduction
    • Fill-in
    • Off
  • Working range (wide)

    0.2 - 7.9m (ISO 1600)

  • Working range (tele)

    0.2 - 3.1m (ISO 1600)

  • Flash compensation

    Yes

External Flash Control

  • Wireless flash control

    -

Sequence Shooting

  • Speed (H)

    Approx. 20fps

  •

    Max. number of frames: RAW 14 / JPG (LN): Up to card capacity

  • Speed (L)

    5fps

  •

    Max. number of frames: RAW 49 / JPG (LN): Up to card capacity

  • Pro Capture mode

  • Speed (H)

    10fps

  • Pre-shutter Frames

    5frames

  • Interval shooting

    Yes

Image Processing

  • Pixel mapping

    Yes

  • Noise reduction

    Yes

  • Engine

    TruePic VIII

  • Distortion compensation

    Yes

  • Shading compensation

    Yes

View Images

  • Modes

    • Single
    • Index
    • Zoom
    • Slide show
    • Event
  • Index

    5 x 4 frames

  • Zoom

    Yes; 1.1 - 10x

  • Auto rotation

    Yes

  • Image protect mode

    Yes

  • Histogram in playback mode

    Yes

View Movie

  • Modes

    • Frame by frame
    • Fast forward
    • Reverse playback

Still Image Recording

  • DCF

    Yes

  • EXIF

    2.3

  • PIM

    III

  • DPS

    PictBridge

  • DPOF

    Yes

Movie Recording System

  • Recording format

    MOV(MPEG-4AVC/H.264)

  • Image Stabilisation Mode

    Digital Image Stabilisation

  • 4K Movie quality

    3840 x 2160 (4k) / 30p, 25p (approx. 102Mbps)

  •

    Recording time: 29min.

  • HD Movie quality

    1080P Recording time: 29min.

  •

    720P Recording time: 29min.

  •

    Speed Class 10 SD card is recommended for shooting movies. UHS-I Speed Class 3 SD card must be used for 4K video and high speed movie.

Movie Specialties

  • High-Speed Recording

    640 x 360 (SD) / 480fps

  •

    720P / 240fps

  •

    1080P / 120fps

  • Time lapse

    720p (AVI Motion JPEG®)

  • Art Filter

    • Pop Art
    • Soft Focus
    • Pale & Light Colour
    • Light Tone
    • Grainy Film
    • Pin Hole
    • Diorama
    • Cross Process
    • Gentle Sepia
    • Dramatic Tone
    • Key Line
    • Water colour
    • Vintage
    • Partial Colour*

Sound Recording System

  • Voice Playback

    Yes

  • Sound recording

    Yes; PCM

  • Internal microphone

    Stereo

  • Image footage

    4s

  • Speaker

    Yes

Memory

  • Removable Media

    SD / SDHC / SDXC (UHS-I class supported)

  • Eye-Fi Card compatible

    Yes

Image Size

  • RAW

    Yes

  • Resolution

    4000 x 3000 - 640 x 480

  • Aspect ratio

    4:3 / 3:2 / 16:9 / 1:1

Menu

  • Menu languages in camera

    39

Tough Features

  • Shock resistant

    Shockproof from heights of up to 2.1m *

  • Waterproof

    Waterproof up to a water pressure equivalent to 15m depth **

  • Anti-fog

    Dual pane glass

  • Freezeproof

    Freezeproof down to -10°C ***

  • Crushproof

    Crushproof up to 100kg ****

  • Dustproof

    Yes

  •

    * Equivalent to MIL Standard (Olympus test conditions)

  •

    ** According to IEC standard publication 529 IPX8

  •

    *** According to Olympus test conditions

  •

    **** According to IEC standard publication 529 IPX6

Other Features

  • GPS

    Yes

  • Electronic compass

    Yes

  • Manometer

    Yes

  • Thermometer

    Yes

  • Level Gauge

    Yes

  • SNS upload

    Yes

  • Perfect Shot Preview

    Yes

  • Panorama function

    In-Camera Panorama

  • Self timer

    Delay: 2 / 12s / Custom

  • Menu guide

    Yes

  • Date imprint

    Yes

  • LED Illuminator

    Yes

Customisation Options

  • My Mode

    2 settings storable

Power Supply

  • Battery

    LI-92B Lithium-Ion Battery

  • Internal Charging

    Yes

Interface

  • HDMI™

    Yes; Micro connector (Type D) *

  • Wireless connectivity

    • WiFi
    • Eye-Fi Card compatible
  • DC input

    Yes

  • Combined A/V & USB output

    Yes

  • USB 2.0 High Speed

    Yes

  •

    * "HDMI", the HDMI logo and "High-Definition Multimedia Interface" are trademarks or registered trademarks of HDMI Licensing LLC.

Dimensions

  • Width

    113mm

  • Height

    66mm

  • Depth

    31.9mm

  •

    (without protrusions)

  • Weight

    250g (including battery and memory card)




Your Comments

Loading comments…
