Introduction

Ease of Use

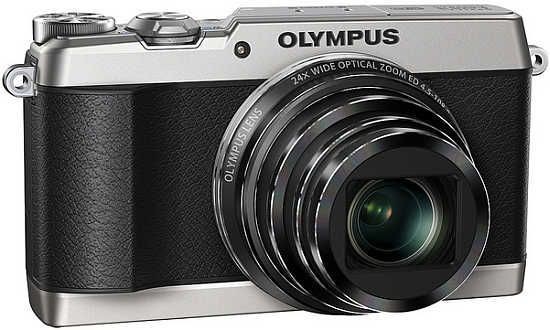

Available in silver, white and black, the Olympus SH-1 is a compact travelzoom that takes its design cues from the manufacturer's PEN line of compact system cameras. Encased in a retro styled, exquisite-looking aluminium alloy body, the Olympus SH-1 is arguably one of the most attractive travel-zoom cameras we have ever come across.

Powered off, with its 24x zoom lens retracted for storage, the Olympus SH-1 easily fits into most pockets, making it easy to carry around even on long journeys and tedious hikes. Switch on the camera, and the lens extends in less than two seconds; a very good performance given the massive focal range on offer. The lens goes from 4.5mm to 108mm, which is equivalent to 25-600mm in 35mm terms. It's worth noting that in most interchangeable-lens systems, you would need a minimum of three (usually more) lenses to cover this range. Low-light focusing is aided by an AF assist light located top left of the lens surround (if viewed head on).

The camera has a small but well sculpted, textured hand-grip, which provides a surprisingly secure hold and a good resting place for your fingers. The shutter release is in a natural location for your index finger, with the tactile zoom lever surrounding it. Right next to the shutter release is a small and recessed on/off button and a small LED that enables the photographer to quickly check if the camera is powered on. On the other side of the shutter release / zoom lever combination you find the camera's mode dial, with positions for “intelligent” Auto, Programmed Auto, Manual, ART, Scene, Hand-Held Starlight, Panorama, Photo Story and Advanced Movie modes. On the other side of the SH-1's top deck is the shooter's built-in flash. Completely recessed by default, the flash can be popped up manually using a tiny spring-loaded switch on the rear plate of the camera. There's no hot-shoe, so the only way to sync up an external flashgun with the camera is to use an optical slave (of the variety that isn't fooled by the pre-flashes emitted by the built-in unit). Unlike some bigger and more expensive superzooms, the Olympus SH-1 has no eye-level electronic viewfinder, either.

Front	Rear

This means that the pictures can only be composed on the 3” TFT monitor that occupies most of the camera's rear plate. Offering a resolution of 460,000 dots – which is adequate but certainly not outstanding –, this touch-sensitive display is fairly easy to see indoors and out, although its visibility is compromised in really strong daylight, particularly when covered with fingerprints – as is often the case with touchscreens. To the right of the screen is a group of controls including a Playback button, a four-way navigation pad with a centred OK button, Menu and Info buttons.

The camera also has a comfortable, textured thumb rest and a conveniently located, dedicated movie shutter release. A handful of functions, including flash mode, exposure compensation and self-timer/drive modes are mapped unto the four-way pad, but that's all as far as hardware controls are concerned. This means there are no direct-access buttons for white balance or ISO speed – these, alongside other shooting parameters like photo and video resolution, aspect ratio and picture mode can be adjusted via the camera's Function Menu, accessed by pressing the OK button. As with most Olympus compacts, the Playback button can be configured to act as a secondary power button when all you want to do is review the pics and videos stored on the memory card or the camera's internal memory.

Touchscreen controls include Touch AF, Touch Shutter and various playback functions. In intelligent Auto mode you can also touch the screen to change the live guide setting levels (the live guide is a simplified set of controls tailored to the needs of beginners). The camera ships with a stylus which you can use if you prefer not to touch the screen with your fingers. The stylus also comes in handy when calibrating the touch panel.

Side	Top

Typically for a compact camera with a small, 1/2.3-type sensor, the lens appears not to have an iris diaphragm, which is the most probable reason why there is no Aperture or Shutter priority mode on offer. In the Manual shooting mode, you do get to change the f-stop but there are only two available settings at any given focal length, suggesting that the camera makes do with a built-in neutral density filter instead of a proper diaphragm. The Manual mode is still useful though, as you get to adjust the ISO and shutter speed as well as things like white balance, image resolution, focusing and metering modes, and an array of other shooting variables.

If you rotate the mode dial to the ART position, you can choose from a range of popular 'art filters' including Pop Art, Soft Focus, Pale&Light Color, Dramatic Tone, Grainy Film, Pin Hole and Diorama. As far as scene modes are concerned, the usual suspects (Portrait, Landscape, Night+Portrait, Night Scene, Sport, Self Portrait, Indoor, Sunset, Cuisine, Document, Beach & Snow) are all present and correct, and the SH-1 throws in a few more for good measure. Interval Shooting allows the camera to take up to 99 successive frames automatically at user-specified intervals ranging from 10 seconds to an hour, while e-Porrait is a 'beauty' mode that smooths out wrinkles and hides skin imperfections in people shots. Super Macro and Backlight HDR are also found among the scene modes, although they should really be available as shooting options in P and M modes.

Hand-Held Starlight mode, on the other hand, has its very own position on the mode dial. In this shooting mode,the camera shots multiple images automatically and continuously, and merges them into one photo with less noise than a single exposure taken at a high ISO speed. The Panorama mode has two options – Auto and Manual. In Auto mode, you simply pan the camera and it automatically processes the images for you. In Manual Panorama mode, three frames are taken and combined by the camera. The user composes the shots using a guide frame and manually releases the shutter. Photo Story is an in-camera collage creator that offers multiple layouts. When shooting, the images are incorporated into the chosen layout frame set to create the desired collage.

Memory Card Slot	Battery Compartment

The Advanced Movie mode is one of the most compelling features of the Olympus SH-1. For starters, the camera can shoot 1080p Full HD movies at up to 60fps, complete with stereo sound and optical zoom – as well as 5-axis mechanical image stabilisation, which comes in especially handy when shooting hand-held in the telephoto range. If this wasn't enough, the SH-1 also allows you to record silent high-speed movies for slow-motion playback. Shooting at 120fps, you can record a video at a respectable 720p HD resolution, which is then played back at 30fps, i.e. four times slower. There is a 240fps option as well, although at this setting, resolution drops to 423x324 pixels. The Olympus SH-1 can also create a time-lapse movie for you in-camera, allowing you to compress up to five hours into a video clip of up to 20 seconds. There is a separate Photo-In Movie mode, in which you can take up to a dozen stills while filming a movie. The Photo-In Movie function is also enabled when shooting in P mode or M mode.

One of the biggest novelties offered by the Olympus SH-1 versus its predecessor, the SH-50, is on-board Wi-Fi. Whilst the Olympus SH-50 could transfer images wirelessly with the help of a FlashAir card, the SH-1 can create its own wireless network and be controlled remotely via your smartphone. To take advantage of this, you need to have an Android or iOS device (no luck for Windows Phone or Blackberry users) and download the free Olympus Image Share app from GooglePlay/iTunes. After that, everything is pretty straightforward. You simply touch the Wi-Fi icon on your camera's display to set up a connection. The Olympus SH-1 will provide you with an SSID and password, but you do not need to type in either of them – just launch the app on your phone and scan the QR code displayed by your camera with your phone. This is nearly as fast as using NFC (Near-Field Communication), a feature that the SH-1 doesn't offer. Once the connection is established, you can download images from the camera to your smartphone, or use the latter to remotely control the SH-1. The level of control provided is quite good – you can use the optical zoom, set white balance and ISO speed, change the auto focus area, select the desired drive mode, and of course fire the shutter.

In use, the camera proved to be quite responsive, with quick start-up, focus acquisition and shot-to-shot times. This holds true for navigating the Function Menu too, which is a big improvement over the somewhat laggy menus of older Olympus compacts. There are some small thoughtful touches, such as a two-axis electronic level gauge, that also improve the user experience. One gripe we did have with the camera was that in Super Macro mode – which is unnecessarily tucked away in a long list of Scene modes making it difficult to capture close-up shots in M and P modes – the camera would often focus on the background instead of the subject itself. Focus hunting was also sometimes experienced at normal camera-to-subject distances in low-light situations, especially at the telephoto end. Other than this, and the afore-mentioned lack of an eye-level electronic viewfinder – which is more of the rule rather than the exception with cameras of this size – we found little to complain about. The Olympus SH-1 performs as you would expect from a modern carry-everywhere travelzoom.

Image Quality

All of the sample images in this review were taken using the 16 megapixel Fine JPEG setting, which gives an average image size of around 6Mb.

Noise

The Olympus SH-1 has 7 sensitivity settings ranging from ISO 125/22° to ISO 6400/39°. Noise reduction is extremely aggressive even at base ISO, and gets stronger as you move up the sensitivity ladder, which takes its toll on fine detail. On a more positive note, colour saturation is not affected too badly until you hit ISO 3200/36°.

ISO 125 (100% Crop)	ISO 200 (100% Crop)
ISO 400 (100% Crop)	ISO 800 (100% Crop)
ISO 1600 (100% Crop)	ISO 3200 (100% Crop)
ISO 6400 (100% Crop)

Focal Range

The lens has an extremely versatile focal range, as demonstrated by the examples below.

25mm	600mm

Sharpening

To counteract the effects of over-aggressive noise reduction, the Olympus SH-1 applies a high dose of sharpening to its images. Adding more in post does not seem to produce better results, as you can see in these 100% crops.

Original (100% Crop)	Sharpened (100% Crop)

File Quality

The Olympus SH-1 does not shoot raw. The available JPEG settings are Fine and Normal.

16M Fine (100% Crop)	16M Normal (100% Crop)

Chromatic Aberrations

For an ultra-zoom, it was very surprising to see almost no trace of chromatic aberrations in the images. Evidently there is some clever processing going on in the background to eliminate all kinds of purple fringing – and it’s highly successful. The examples show what you should expect in the worst case.

Chromatic Aberrations 1 (100% Crop)	Chromatic Aberrations 2 (100% Crop)

Macro

The Olympus SH-1 has a Super Macro mode, which enables it to focus as close as 3cm. Unfortunately, Super Macro is available as a separate Scene Mode rather than a shooting option. In our experience, the camera sometimes has a difficulty focusing on the subject in this mode – but when it does achieve a focus lock, it can produce remarkable results. The example below shows how close you can get to the subject; in this case, a Secure Digital memory card.

Macro	Macro (100% Crop)

Flash

The camera has a pop-up flash that has to be raised manually. The available settings are auto, fill in, redeye-reduction and off. Note that the settings can only be adjusted when the flash is raised. These shots of a white ceiling were taken at a subject distance of 1.5m.

Suppressed Flash - Wide Angle (25mm)	Forced Flash - Wide Angle (25mm)
Suppressed Flash - Telephoto (600mm)	Forced Flash - Telephoto (600mm)

And here are some flash portraits. As you can see the flash did not produce a noticeable red-eye effect.

Forced Flash	Forced Flash (100% Crop)
Red-eye Reduction Auto	Red-eye Reduction Auto (100% Crop)

Night

The Olympus SH-1 has a minimum shutter speed of 30 seconds in M mode, which is fairly good news for photographers interested in night photography. The following photo was captured in the Night Scene mode, at a shutter speed of 1 second, aperture of f/3.2, ISO 160. We have provided a 100% crop for you to see what the quality is like.

Night	Night (100% Crop)

HDR

The camera has an HDR exposure blending mode, which takes advantage of its extremely fast sequential shooting capability to capture two exposures in rapid succession. These are then blended into a single image with improved highlight and shadow detail. Although Olympus calls it a 'Backlight HDR' mode, it can be applied to shooting any high-contrast scene, as the examples below demonstrate.

HDR Off	HDR On

Picture Modes

The Olympus SH-1 has 7 so-called Picture Modes including Vivid, Natural, Muted, Fish Eye, Sparkle, Reflection and Fragmented.

Vivid	Natural
Muted	Fish-eye
Sparkle	Reflection
Fragmented

Art Filters

The camera offers 7 'art filters': Pop Art, Soft Focus, Pale&Light Color, Dramatic Tone, Grainy Film, Pin Hole and Diorama.

Pop Art	Soft Focus
Pale&Light Color	Dramatic Tone
Grainy Film	Pin Hole
Diorama



Slow-Motion Video

The Olympus SH-1 has two hi-speed movie recording modes, HS120fps and HS240fps. These embedded videos demonstrate what kind of results you can expect from each. Notice how steady the footage is (especially the one shot at 720/120p) as a result of the camera's effective image stabilisation system.

Olympus SH-1 720p Slow-Motion Video Recorded at 120fps from photographyblog on Vimeo.

Olympus SH-1 Slow-Motion Video Recorded at 240fps from photographyblog on Vimeo.

Time-Lapse Movie

The Olympus SH-1 can record time-lapse movies of up to 20 seconds in length. The maximum recording time is five hours. The recording can be interrupted by the user at any point.

Olympus SH-1 Time-Lapse Video from photographyblog on Vimeo.

Panorama

The Olympus SH-1 has a dedicated Panorama mode on its shooting mode dial.  The Panorama mode has two options – Auto and Manual. In Auto mode, you simply pan the camera and itautomatically processes the images for you. In Manual Panorama mode, three frames are taken and combined by the camera. The user composes the shots using a guide frame and manually releases the shutter. The following panoramic image was captured in Auto Panorama mode.

Sample Images

This is a selection of sample images from the Olympus SH-1 camera, which were all taken using the 16 megapixel Fine JPEG setting. The thumbnails below link to the full-sized versions, which have not been altered in any way.

Sample Movie & Video

Product Images

Front of the Olympus SH-1

Front of the Olympus SH-1

Side of the Olympus SH-1

Side of the Olympus SH-1

Side of the Olympus SH-1 / Flash Raised

Side of the Olympus SH-1

Side of the Olympus SH-1 / Flash Raised

Rear of the Olympus SH-1

Top of the Olympus SH-1 / OK Menu

Bottom of the Olympus SH-1

Side of the Olympus SH-1

Side of the Olympus SH-1

Battery Compartment

Memory Card Slot

Conclusion

The Olympus SH-1 is arguably one of the most attractive travelzoom cameras we have ever come across. Its retro-styled aluminium-alloy body is reminiscent of the manufacturer's PEN line of film cameras and CSCs. In hand, it feels great courtesy of a small but well-sculpted, textured grip, which provides a surprisingly secure hold and a good resting place for your fingers.

In use, the camera proved to be quite responsive, with quick start-up, focus acquisition and shot-to-shot times. The touchscreen controls such as Touch AF work very well most of the time. One gripe we did have with the camera was that in Super Macro mode – which is unnecessarily tucked away in a long list of Scene modes making it difficult to capture close-up shots in M and P modes – the camera would often focus on the background instead of the subject itself. Focus hunting was also sometimes experienced at normal camera-to-subject distances in low-light situations, especially at the telephoto end.

Other than this, and the lack of an eye-level electronic viewfinder – which is more of the rule rather than the exception with cameras of this size – we found little to complain about in terms of general usage. The high-speed sequential shooting modes, advanced movie recording options and on-board Wi-Fi make the Olympus SH-1 a very well-rounded offering within the travelzoom camera segment.

Image quality is a wholly different story. Even at base ISO, the camera applies so much noise reduction that the images take on a watercolour-like look when viewed at 100% magnification. This means the images cannot be printed as large as the 16-megapixel sensor would have you believe (in fact we think they do not contain much more detail than you would expect from a 5-megapixel camera). At smaller print sizes and most screen resolutions, the photos look much better. The colours are vibrant, the dynamic range is pretty good for a 1/2.3” sensor (and there's an HDR mode to fall back on when shooting in really contrasty light), and chromatic aberrations are kept to a minimum.

If Olympus issued a firmware update giving users the ability to control the amount of noise filtering applied to the images – as is the case with the manufacturer's compact system cameras – we would almost certainly give the Olympus SH-1 a 'Recommended' rating, as its usability and feature set are definitely remarkable. With the excessive detail smudging in the images, though, it's hard to wholeheartedly recommend the camera to anyone wishing to do more with their photos other than posting them on the Web or making small prints.

Ratings (out of 5)
Design	4.5
Features	4
Ease-of-use	4.5
Image quality	3
Value for money	3.5
