Panasonic Lumix DMC-GF3 Review

July 6, 2011 | Mark Goldstein | Rating star Rating star Rating star Rating star

Introduction

The Lumix DMC-GF3 is Panasonic's smallest and lightest compact system camera to date. Supplementing the larger and more complex GF2 model, the new Panasonic GF3 features a FourThirds sized 12.1-megapixel Live MOS sensor, built-in pop-up flash and a 3 inch touch-sensitive LCD screen with a resolution of 460,000 dots. The DMC-GF3 also offers full HD movies at 1920 x 1080 at 60i (NTSC) / 50i (PAL) in AVCHD format with stereo sound and full-time auto-focus, 4fps continuous shooting, fast contrast-detect auto-focus system that can lock onto a subject in approximately 0.1-0.18 second, Venus Engine FHD processor, RAW support and an ISO range of 160-6400. The Panasonic GF3 is available in black, red or white in a kit with the 14mm f/2.5 pancake lens for £549.99 / $699.95.

Ease of Use

The Panasonic GF3 is even smaller than its predecessor, the GF2, by approximately 16.7% in size and 16.2% in weight, measuring 107.7 x 67.1 x 32.5mm and weighing 222g without a lens attached or battery inserted. With a pancake lens like Panasonic’s own 14mm f/2.5 fitted, the GF3 is about the same size as a typical fixed-lens compact camera, even though it boasts a much bigger sensor. The GF3 is not much bigger than the LX5 compact, mostly through the lack of a shooting mode dial and several other external controls, and the adoption of touchscreen technology.

Importantly this significant reduction in size makes the GF3 smaller than the diminutive Sony NEX 5 and 3 compact system cameras, which additionally suffer in comparison by not having a built-in flash unit. Indeed, Panasonic claims that the GF3 2 "breaks the record of being the world's smallest and lightest system camera", although the newly-announced Olympus E-PM1 gives it a run for its money. If you're looking for the smallest possible compact system camera, then the Panasonic GF3 certainly fits the bill.

The main changes versus the GF2 - apart from the obvious size/weight reduction and design overhaul - include the omission of the flash hot-shoe / accessory terminal and the rear-mounted thumb-wheel, and the inclusion of a scroll wheel around the four-way pad, a first on a Panasonic Lumix G Micro System camera. Another change to the user interface is that the Up button is now dedicated to exposure compensation rather than ISO sensitivity, which may dismay some enthusiasts.

The mechanical button for the pop-up flash has also been retained, although its position changed somewhat along with that of the flash itself. The top-mounted controls - including the shutter release, movie record button, power switch and dedicated intelligent Auto button - have been reshuffled and grouped more tightly together, but otherwise remain essentially the same both in appearance and functionality. The GF2's stereo microphones have given way to a more modest monaural mic.

The DMC-GF3 has a significantly raised and curved vertical area on the front-right of the body which acts as a handgrip, allowing you to hold the camera with three fingers whilst operating the shutter button with your forefinger. This works in tandem with the useful rubberized thumb-rest on the rear. The GF3 sports a new design characterised by clean lines, gentle curves and a polished exterior. Whilst still not as charismatic as the retro Olympus Pen models, the GF3 is a handsomely futuristic camera with more of an obviously electronic feel to it, and is also extremely well-built despite its mid-range price-point, with a high quality aluminum body, lens mount and tripod socket.

While the body of the GF3 is amazingly small and light, the lenses are still where Panasonic have really shrunk the overall system, and the tiny 14mm pancake lens is no exception, weighing a mere 55g. Interestingly the GF3 only ships with the 14mm lens, rather than a zoom lens like the 14-42mm. Providing an equivalent wide-angle focal length of 28mm, this prime lens is a good partner for the GF3, keeping the size of the overall system to a bare minimum and really looking the part. You can just about squeeze this combination into a coat pocket or handbag, impressive for a camera with DSLR aspirations. It also has a fast maximum aperture of f/2.5, making the GF3 perfect for use in low-light conditions and easier to blur the background to help emphasise the main subject. A natural addition to your GF3 kit would be the 20mm pancake lens, which provides a 40mm focal length and an even faster maximum aperture of f/1.7.

We also tried the GF3 with physically larger 14-42mm and 45-200mm lenses, and this is where this tiny camera shows some of its limitations. As you can see from the pictures on the Product Images page, even the 14-42mm looks big when mounted on the GF3, particularly at full zoom, while the 45-200mm is so large that the bottom of the GF3 can't actually rest properly on a flat surface!

Just like the GF1 and GF2 before it, the GF3 doesn't have a built-in viewfinder, with just the LCD screen on the rear providing a solution for composing your images. A more important consideration is the GF3's complete lack of an external hotshoe, which prevents the use of the optical viewfinder accessory. This inability to hold the camera up to your eye makes it very difficult to hand-hold the camera to compose using the LCD screen and still get sharp results using the longer focal lengths. As the ability to use different lenses is one of the main selling points of a system camera, the lack of an eye-level finder is rather limiting.

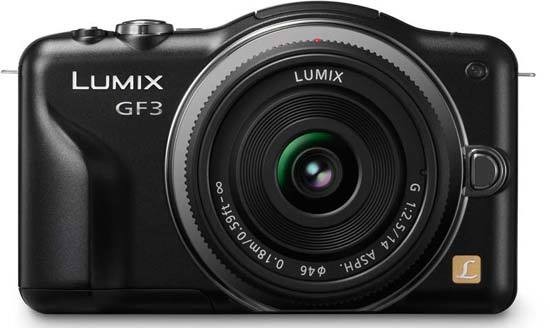

Panasonic Lumix DMC-GF3 Panasonic Lumix DMC-GF3
Front Rear

The Micro Four Thirds system is now relatively well-established, with quite a lot of lenses on offer from Panasonic and Olympus that cover most of the popular focal lengths. You can also use regular Four Thirds lenses or even Leica D lenses via optional adapters from either Panasonic or third-parties, but lenses that are not compatible with the GF3's Contrast AF function can only be used with manual focusing and cannot use the Tracking AF, AFc (Auto Focus Continuous) or Continuous AF functions.

Optical image stabilisation is supplied via the lens, rather than being built-in to the camera body, a key difference between the Panasonic and Olympus systems. Note that the 14mm pancake lens does not offer image stabilisation. If available, it can be turned on and off via the Mega O.I.S switch on the lens barrel, with three different modes accessible through the DMC-GF3's menu system.

When enabled, the Panasonic Lumix DMC-GF3 automatically compensates for camera shake, which is a slight blurring of the image that typically occurs at slow shutter speeds when the camera is hand held. There are three different modes, Mode 1 is on all the time including image composition, Mode 2 is only on when you press the shutter button, and Mode 3 compensates for up and down movements only (which in turn allows you to pan the camera). In practice I found that it does make a noticeable difference, especially with the 45-200mm telephoto lens. You don't notice that the camera is actually doing anything different when anti-shake is turned on, just that you can use slower shutter speeds than normal and still take sharp photos.

On the front of the Panasonic Lumix DMC-GF3 is a small focus-assist and self-timer indicator lamp, lens release button, lens mount and the already mentioned hand-grip. On the bottom is a metal tripod socket, importantly in-line with the middle of the lens barrel, and the shared battery compartment and SD/SDHC/SDXC memory card slot. The GF3 manages just over 325 shots using the supplied DMW-BLE9E 7.2V 940mAh rechargeable Li-ion battery. On the right-hand side are ports for the HDMI and AV Out/Digital connections, with tiny metal eyelets on either side of the body for the supplied camera strap. Unfortunately, Panasonic don't include a HDMI cable as standard in the box, which means that you'll have to purchase one separately to take advantage of this camera's HD connectivity.

The top of the GF3 has a microphone, monoaural speaker, cleverly designed built-in pop-up flash, dedicated button for the Intelligent Auto mode which lights blue when turned on, tactile shutter button, on/off switch, and a one-touch movie button. The Panasonic GF3 has a dedicated button for opening the cleverly designed pop-up flash. Given the small size of the GF3, fitting a built-in flash was no mean feat, as proven by the double-hinged design which is quite a technical achievement. Although not particularly powerful with a guide number of just 6.3, the GF3's flash is perfectly adequate for fill-in effects at close-quarters.

The rear of the Panasonic DMC-GF3 is dominated by the large 3 inch LCD screen. The 460K pixel, high-resolution screen coped admirably with the majority of lighting conditions, aided by an anti-reflective coating. This screen is a great improvement on cameras with the usual 230K dot resolution, even being nice to use in low-light. The LCD operates at 60fps, twice the usual speed, which helps make it relatively flicker-free. The Auto Power LCD function automatically detects the current lighting conditions and boosts the LCD backlighting by up to 40% when shooting outdoors in bright sunshine, helping to keep the screen visible, although the lack of an optical viewfinder is a hindrance on the rare occasions that the rear LCD is difficult to see.

One of the GF3's main innovations is its touchscreen interface, with a revamped GUI that's easy on the eye. Panasonic have wisely restricted the amount of things that you can do by interacting with the screen, and indeed you can still operate most things on the camera without having to push and prod the LCD at all. But you would be missing out on a lot of genuinely useful functionality that really improves the shooting experience.

The most immediately noticeable function is the ability to use the 1-area AF mode to focus on your main subject simply by touching it on the LCD. If the subject then moves, the GF3 cleverly follows it around the screen using the the AF tracking function. If the subject exits the frame entirely, simply recompose and tap it again to start focusing. Impressive stuff that makes focusing on off-center subjects fast and intuitive. It is a little too easy to accidentally press the screen and set the focus point to the wrong area for the current subject, but a simple tap in the middle of the LCD will center the AF point (or you can turn this feature off altogether).

The size of the AF point itself can also be changed via an interactive onscreen slider or the rear scroll wheel. If Face Detection is enabled, the 1-area AF point can be manually set to a person's eye to help ensure that the most important part of a portrait is in focus. If Multi-area AF rather than 1-area AF is enabled, then you can select a group of 4, 5 or 6 AF points from 9 different areas, again providing some manual control over what is traditionally a rather hit and miss affair. The Pinpoint AF auto-focus area mode allows you to touch the area of the frame where your subject is, whereupon said area gets magnified in order to allow you to set the focus point with pinpoint accuracy using a second touch. While this method is obviously slower than the others, it can be very useful when shooting, say, a portrait with shallow depth of field where you will want to make sure focus is on the subject’s eyes rather than her nose, ears or eyebrows.

Panasonic Lumix DMC-GF3 Panasonic Lumix DMC-GF3
Pop-up Flash

Front

When Intelligent Auto is switched on, the GF3 changes the scene mode used when you touch the subject, for example selecting portrait mode if you touch a face and macro mode if you touch a close-up flower. If you prefer to manually focus rather than use the snappy AF, you can magnify any part of the subject by 1x, 5x or 10x by simply dragging the image around the screen. The final touchscreen ability from an image composition point of view is the ability to release the shutter, with a small icon on the right hand screen enabling this functionality, and then a single on-screen tap all that's required to take the picture.

Most of the menu options can be changed via the touchscreen interface, notably the Quick Menu and the Info Display menu - the main exception to this rule is the Main Menu, which is still mostly controlled via the navigation buttons. You can also control image playback by touching the screen, with the ability to tap a thumbnail to see the full-size version, scroll through your images by dragging them from side to side, and magnifying them up to 16x.

To the right of the LCD screen is a simplified control layout compared to the GF2. There's a Playback button, traditional 4-way navigation D-Pad system with Menu/Set button in the centre, and a combined Q. Menu/Fn Delete button. Pressing left, up, right and down on the D-Pad buttons selects AF Mode, Exposure Compensation, White Balance and Burst / Self-timer options respectively. The Q.Menu button provides quick access to most of the principal controls via an onscreen menu, which displays by default the aspect ratio, size, quality, metering and focus mode, and you can also configure it to include up to 10 out of 19 available settings simply by dragging and dropping the onscreen icons. You can still access all of these options from the main menu system too if you wish.

New to the GF-series is a circular scroll wheel surrounding the D-Pad. This wheel is used for, amongst other things, changing the aperture and shutter speed by turning from left to right and back again. This is a common feature found on other high-end compacts and entry-level DSLR cameras, so you'll be right at home if you've used a DSLR before - more basic compact camera users will need to get used to using this wheel.

The main menu system on the DMC-GF3 is straight-forward to use and is accessed by pressing the Menu/Set button in the middle of the navigation D-Pad. There are six main menus represented by large icons, Rec Mode, Record, Motion Picture, Custom, Setup and Playback. As an indication of how configurable the GF3 is, the Custom menu has 24 different options, allowing you to fine-tune this camera to suit your way of working. If you have never used a digital camera before, or you're upgrading from a more basic model, reading the easy-to-follow manual before you start is a good idea. Unfortunately Panasonic have only chosen to supply a basic guide in printed format, with the full manual only available as a PDF on the product CD.

The usual selection of Program, Aperture Priority, Shutter Priority, and Manual are available for the more experienced photographers. An optional exposure meter can be displayed in the P/A/S/M shooting modes which graphically shows the relationship between shutter speed and aperture, with a color-coded warning that alerts users when the settings are not in the proper range. The more beginner-friendly Scene modes and Intelligent Auto are also accessed via the Record Mode menu. One scene mode particularly worthy of mention is the Peripheral Defocus option, which makes it easy for beginners to achieve a blurred background / sharp subject effect without having to understand what apertures are. Additionally there is a custom mode which allows you to configure your favourite settings and quickly access them.

The G2's My Color mode has been replaced by the new range of Creative Controls, denoted by an artist's palette, with 5 options - Expressive, Retro, High Key, Sepia, High Dynamic Range and Miniature - on offer. Some are more useful than others, and I'm not quite sure why these modes deserve their own special place on the shooting mode menu, rather than being grouped together with the Photo Styles in the Main Menu. It's presumably because you lose control of the exposure and other key settings when using the Creative Controls, whereas the 6 available Photo Styles still allow full control of the camera's settings.

Panasonic Lumix DMC-GF3 Panasonic Lumix DMC-GF3
Top Touch-screen

Accessed via the dedicated red iA button on top of the camera, Intelligent Auto mode tries to make things as easy as possible for the complete beginner. It allows you to point and shoot the camera without having to worry about choosing the right scene mode or settings. Intelligent Auto Mode automatically determines a number of key criteria when taking a picture, including selecting the most appropriate scene mode (from 5 commonly used presets) and ISO speed, and turning face detection (up to 15 faces), image stabilization and quick auto-focus on.

The Intelligent Auto Plus Mode also includes Intelligent Exposure, which increases exposure only in the under-exposed areas of the image, Digital Red-eye, which automatically detects and removes red-eye, and AF Tracking, which continually tracks a moving subject and keeps it in focus, without you having to hold the shutter button halfway down as on most other cameras.

The Intelligent Resolution mode makes a standard image look like a higher resolution one by processing the contour areas, texture areas and smooth areas individually. There are three available strengths - low, standard and high - and an Extended option which increase the zoom range. Despite all the clever behind-the-scenes processing, it's fairly easy to tell which image was taken with Intelligent Resolution turned on and which one with it turned off due to unwanted artifacts appearing, particularly if viewing onscreen at 100% magnification. While the difference isn't quite so apparent on a print up to A3 in size, I'm not convinced enough to recommend regularly using it.

Intelligent Dynamic adjusts the exposure setting to record more detail in the highlights and shadows, with three strengths available - low, standard and high. It's actually very effective for high-contrast scenes when the camera tends to blow-out the highlights and block-up the shadows. You can see some examples for both Intelligent Resolution and Intelligent Dynamic on the Image Quality page.

The GF3 offers Full 1080i HD 1920 x 1080 movies at 60/50 frames per second, and 720p HD 1280 x 720 movies at 60 fps, both in the AVCHD (MPEG-4/H.264) format. In addition it can also record Motion JPEG movies at 320 x 240 at 30fps, 640 x 480 at 30fps, 848 x 480 at 30fps and 1280 x 720 at 30fps, useful as this format can currently be shared more easily.

AVCHD features almost double the recording time in HD quality compared with Motion JPEG, but software support is still a little thin on the ground. Panasonic describe it as the best mode for playing back on a HD TV direct from the camera, and Motion JPEG best for email and playing on a computer. There is a limit on the length of a movie of up to 29 min 59 sec in European PAL areas, and continuous recording exceeding 2GB is not possible when recording in the motion JPEG format.

There's also a useful wind cut function which blocks out most of the noise from background wind. The thumb-operated dedicated movie button on the top makes it simple to start record video footage at whatever quality level is currently selected. The HDMI port allows you to connect the GF3 to a high-def TV set, but only if you purchase the optional HDMI mini-cable. You can extract a frame from a movie during playback and save it as a small still image.

Panasonic Lumix DMC-GF3 Panasonic Lumix DMC-GF3
Memory Card Slot Battery Compartment

The Panasonic GF3's Intelligent Auto mode works for movies as well as for still photos. Simply press the iA button on top of the camera, then the Movie Record button. The Intelligent Scene Selector automatically determines the most suitable Scene mode from five options - Portrait, Scenery, Low Light and Close-up or Normal modes. Face Detection automatically detects a face in the frame and adjusts the focus, exposure, contrast, and skin complexion. Intelligent Exposure continually checks the ambient light level and adjusts the exposure setting as conditions change to prevent blown highlights and blocked shadows. The Optical Image Stabilizer helps prevent blurring from hand-shake when using a compatible lens.

You can use any zoom lens during recording with focusing set as for still images. On the negative side, you'll find that if you choose continuous auto-focus, areas of the video will be blurred before becoming sharp again as the camera tries to refocus. On a more positive note, the the GF3 is quite fast at re-focusing (although not as fast as for still images), and having this system is much better than not being able to auto-focus at all, as with most current DSLR cameras that offer video recording. Hand-holding the GF3 during movie recording inevitably leads to obvious shake, despite the optical image stabilizer on compatible lenses, so for best results you'll need a dedicated video tripod. One great benefit of the touch-screen control system is that Touch Auto Focusing is available in movie recording, enabling pro-level rack-like focusing simply by pointing at the subject on the LCD screen.

Unlike a conventional DSLR camera which uses a phase detection auto-focus system, the DMC-GF3 employs the same Contrast AF that is commonly used by compact cameras. As with the EVF, experienced photographers will now be tutting loudly at the thought of having to use a traditionally slower system. I'm happy to be able to report that this decision hasn't resulted in a slow and unpredictable AF - quite the opposite in fact. Panasonic have published marketing data which suggests that the GF3's AF is as fast, if not faster, than a typical DSLR camera's, with a claimed speed of less than 0.1 second when used with certain lenses, and a still impressive 0.18 second with the 14-42mm lens.

In practice I noticed very little difference in speed between the GF3 and a DSLR, and there were also very few occasions when the GF3 failed to lock onto the subject, especially when using the centre AF point. There are a wide range of AF modes on offer, including multiple-area AF with up to 23 focus areas, 1-area AF with a selectable focus area, Face Detection, AF Tracking and Pinpoint. The GF3 also has a useful Quick AF function that begins focusing as soon as you point the camera.

The start-up time from turning the Lumix DMC-GF3 on to being ready to take a photo is very impressive at less than 0.5 seconds. It takes about 1 second to store a JPEG image, allowing you to keep shooting as they are being recorded onto the memory card - there is a barely perceptible LCD blackout between each image. Storing a single RAW image takes around 4 seconds, but thankfully it doesn't lock up the camera in any way - you can use the menu system or shoot another image while the first file is being written to memory. The Panasonic Lumix DMC-GF3 has a pretty good Burst mode which enables you to take 4 frames per second for an unlimited number of JPEG images at the highest image quality, or 7 RAW images. There's also a faster 20fps mode, but the images are only recorded at 4 megapixels.

Once you have captured a photo, the Panasonic Lumix DMC-GF3 has an average range of options when it comes to playing, reviewing and managing your images. You can instantly scroll through the images that you have taken, view thumbnails (up to 30 onscreen at the same time and in a Calendar view), zoom in and out up to 16x magnification, view slideshows, delete, protect, trim, resize, copy and rotate an image. You can also select favourite images, change an image's aspect ratio, divide a video and set the print order. The Display icon toggles detailed settings information about each picture on and off, such as the ISO rating and aperture / shutter speed, and there is a small brightness histogram available during shooting and RGBY histogram during playback if enabled in the menu. You can also turn on guide-lines to help with composition and flashing highlights which indicate any over-exposed areas of the image.

In summary, the Panasonic Lumix DMC-GF3 is a smaller and lighter evolution of the previous GF2 model, with a few significant usability sacrifices made in order to achieve its diminutive size and cheaper price-point. Now let's take a look at its image quality on the next page...

Image Quality

All of the sample images in this Review were taken using the 12.1 megapixel Fine JPEG setting, which gives an average image size of around 6Mb.

The Panasonic Lumix DMC-GF3 produced images of excellent quality during the review period. It produces noise-free images at ISO 100 to 800, with limited noise starting to appear at ISO 1600. ISO 3200 exhibits quite visible noise and loss of fine detail, and the fastest setting of ISO 6400 is even noisier but still usable.

The images were a little soft straight out of the camera at the default sharpening level and ideally require further sharpening in an application like Adobe Photoshop, or you can change the in-camera setting if you don't like the default results. The various Creative Controls and Photo Styles allow you to quickly and easily customise the look of the camera's JPEG images. The pop-up flash worked well indoors, with no red-eye and good overall exposure.

The night photograph was excellent, with the maximum shutter speed of 60 seconds allowing you to capture plenty of light. We struggled to see any differences between the Intelligent Resolution settings, but Intelligent D-range is an effective new feature for capturing more detail in the shadows and highlights.

Noise

There are 7 ISO settings available on the Panasonic Lumix DMC-GF3. Here are some 100% crops which show the noise levels for each ISO setting, with JPEG on the left and RAW on the right:

JPEG

RAW

ISO 160 (100% Crop)

ISO 160 (100% Crop)



ISO 200 (100% Crop)

ISO 200 (100% Crop)



ISO 400 (100% Crop)

ISO 400 (100% Crop)



ISO 800 (100% Crop)

ISO 800 (100% Crop)



ISO 1600 (100% Crop)

ISO 1600 (100% Crop)



ISO 3200 (100% Crop)

ISO 3200 (100% Crop)



ISO 6400 (100% Crop)

ISO 6400 (100% Crop)

File Quality

The Panasonic Lumix DMC-GF3 has 2 different JPEG image quality settings available, with Fine being the highest quality option. Here are some 100% crops which show the quality of the various options, with the file size shown in brackets.

Fine (5.87Mb) (100% Crop)

Normal (2.63Mb) (100% Crop)



RAW (14.1Mb) (100% Crop)




Sharpening

Here are two 100% crops which have been Saved as Web - Quality 50 in Photoshop. The right-hand image has had some sharpening applied in Photoshop. The out-of-the camera images are a little soft at the default sharpening setting, and benefit from further sharpening in a program like Adobe Photoshop. You can also change the in-camera sharpening level by tweaking the Film Mode, with five different settings available.

Original (100% Crop)

Sharpened (100% Crop)



Flash

The flash settings on the Panasonic Lumix DMC-GF3 are Auto, Auto/Red-eye Reduction, Forced Flash On, Slow Sync./Red-eye Reduction and Forced Flash Off. These shots of a white coloured wall were taken at a distance of 1.5m.

Flash Off (28mm)

Flash On (28mm)

ISO 64 ISO 64


And here are some portrait shots. As you can see, neither the Flash On setting or the Red-Eye Reduction option caused any amount of red-eye.

Flash On

Flash On (100% Crop)


Red-eye Reduction

Red-eye Reduction (100% Crop)

Night

The Panasonic Lumix DMC-GF3 maximum shutter speed is 60 seconds and there's also a Bulb option for exposures up to 4 minutes long, which is excellent news if you're seriously interested in night photography. The shot below was taken using a shutter speed of 15 seconds at f/8 at ISO 100. I've included a 100% crop of the image to show what the quality is like. The camera takes the same amount of time again to apply noise reduction, so for example at the 15 second setting the actual exposure takes 30 seconds.

Night Shot

Night Shot (100% Crop)

Intelligent Resolution

The Panasonic Lumix DMC-GF3's Intelligent Resolution feature identifies outlines, texture areas and soft gradation areas of the image and then automatically optimizes the edges and detailed texture areas while using noise reduction to make the soft gradation areas smoother. There are three available strengths - low, standard and high.

Off

Low



Standard

High


Extended


Intelligent D-Range

The Panasonic Lumix DMC-GF3's new Intelligent D-range adjusts the exposure setting to record more detail in the highlights and shadows, with three strengths available - low, standard and high.

Off

Low



Standard

High

Photo Styles

Panasonic's Photo Styles, similar to Nikon's Picture Styles, Canon's Picture Controls and Olympus' Picture Modes, are preset combinations of different sharpness, contrast, saturation and noise reduction settings. The six available Photo Styles are shown below in the following series, which demonstrates the differences. There is also a Custom option so that you can create your own look.

Standard

Vivid



Natural

Monochrome



Scenery

Portrait

Creative Controls

The Panasonic GF3 has a new range of Creative Controls, denoted by an artist's palette in the shooting mode menu, with 6 options - Expressive, Retro, High Key, Sepia, High Dynamic Range and Miniature - on offer.

Expressive

Retro



High Key

Sepia



High Dynamic

Miniature Effect

Sample Images

This is a selection of sample images from the Panasonic Lumix DMC-GF3 camera, which were all taken using the 12 megapixel Fine JPEG setting. The thumbnails below link to the full-sized versions, which have not been altered in any way.

Sample RAW Images

The Panasonic Lumix DMC-GF3 enables users to capture RAW and JPEG format files. We've provided some Panasonic RAW (RW2) samples for you to download (thumbnail images shown below are not 100% representative).

Sample Movie & Video

The Panasonic Lumix DMC-GF3 can record 1080i HD video at 1920x1080 pixels and 60fps in the AVCHD Lite format. This is a sample movie at the highest quality setting. Please note that this 16 second movie is 32.4Mb in size.

Product Images

Panasonic Lumix DMC-GF3

Front of the Camera


Panasonic Lumix DMC-GF3

Front of the Camera / Lens Removed


Panasonic Lumix DMC-GF3

Front of the Camera / Pop-up Flash


Panasonic Lumix DMC-GF3

Isometric View


Panasonic Lumix DMC-GF3

Isometric View


Panasonic Lumix DMC-GF3

Rear of the Camera


Panasonic Lumix DMC-GF3

Rear of the Camera / Image Displayed


Panasonic Lumix DMC-GF3

Rear of the Camera / Turned On


Panasonic Lumix DMC-GF3

Rear of the Camera / Info Screen



Panasonic Lumix DMC-GF3

Rear of the Camera / Info Screen


Panasonic Lumix DMC-GF3

Rear of the Camera / Main Menu


Panasonic Lumix DMC-GF3

Rear of the Camera / Record Mode Menu


Panasonic Lumix DMC-GF3

Rear of the Camera / Main Menu


Panasonic Lumix DMC-GF3

Rear of the Camera / Touchscreen


Panasonic Lumix DMC-GF3

Rear of the Camera / Pop-up Flash


Panasonic Lumix DMC-GF3

Top of the Camera


Panasonic Lumix DMC-GF3

Bottom of the Camera


Panasonic Lumix DMC-GF3

Side of the Camera


Panasonic Lumix DMC-GF3

Side of the Camera


Panasonic Lumix DMC-GF3

Front of the Camera


Panasonic Lumix DMC-GF3

Front of the Camera


Panasonic Lumix DMC-GF3

Memory Card Slot


Panasonic Lumix DMC-GF3

Battery Compartment


Panasonic Lumix DMC-GF3

14mm Lens


Panasonic Lumix DMC-GF3

20mm Lens


Panasonic Lumix DMC-GF3

14-42mm Lens


Panasonic Lumix DMC-GF3

14-42mm Lens


Panasonic Lumix DMC-GF3

45-200mm Lens


Panasonic Lumix DMC-GF3

45-200mm Lens


Panasonic Lumix DMC-GF3

GF1 v GF3


Panasonic Lumix DMC-GF3

GF1 v GF3


Panasonic Lumix DMC-GF3

GF1 v GF3


Panasonic Lumix DMC-GF3

GF1 v GF3


Panasonic Lumix DMC-GF3

GF1 v GF3

Conclusion

The Panasonic Lumix DMC-GF3 is an even more obvious attempt to woo compact camera owners looking to upgrade to the new breed of DSLR-like models than the GF2 was, who will be attracted by the tiny body design, cutting-edge touchscreen and pared-down user interface. Original GF1 owners, on the other hand, will find even less to like than with the GF2, so much so that Panasonic themselves have hinted at a future GF-series camera designed specifically for enthusiasts - those users should consider the new DMC-G3 instead. On the other hand, the diminutive size, speedier auto-focus, new GUI and feature-set and arguably more attractive design may outweigh the main negatives of losing the flash hot shoe, accessory port, stereo microphones and dedicated ISO button for some users.

The drive towards smaller and smaller bodies and lenses in the fledgling Compact System Camera market is similar to the megapixel wars that have dominated compact digicams until very recently. The Panasonic GF3 is now as small as the Sony NEX system if you compare the bodies side-by side, and when you factor in the fact that the GF3 has a clever built-in flash and smaller lenses, it's easy to see the appeal of going with the smaller Four Thirds sensor if you can live with the slightly inferior image quality at higher ISO speeds.

Our only criticism of this drive to reduce the body size is the subsequent imbalance when using the GF3 with longer lenses, something that is further compounded by the lack of any optical viewfinder thanks to the removal of the external hotshoe. Using telephoto lenses like the 45-200mm is a tricky affair when holding the GF3 at arm's length, and even the 14-42mm kit lens is less than ideal when fully zoomed. Conversely, the GF3 is a real street shooter's delight when paired with the 14mm or 20mm prime lenses, looking to all intents and purposes like an unthreatening compact, aided greatly by the even faster auto-focus system. Those lenses won't be the first choice for compact camera users looking to upgrade, though, so you really need to consider exactly how you will use the GF3 before purchasing.

In terms of still image quality the GF3 offers virtually indistinguishable performance to its predecessor. Noise levels are very similar, with a usable range of ISO 160-800 and good results even at 1600, although the fastest settings of 3200 and particularly the 6400 setting aren't really worth using, so the GF3 still can't quite rival a decent DSLR or CSC camera with an APS-C sized sensor in low-light. Colours are accurate when using the default Standard setting, with lots of scope to adjust the JPEG output to suit your own tastes, and the auto white balance is spot-on in most lighting conditions. The diminutive pop-up flash is OK for use as fill-in, the ability to make bulb exposures up to 4 minutes long will please night photographers, and anti-shake via compatible lenses helps to keep things sharp in low-light.

Slightly cheaper than the GF2, the new DMC-GF3 continues to take Panasonic's GF-series compact system cameras in a beginner-friendly direction, aiming to appeal to a much wider base of users who are looking for DSLR-like results from an even simpler and more compact design. We do have a few more concerns about the GF3 than the GF2 though, most notably the lack of an external viewfinder, flash hotshoe, stereo sound and fewer external controls, but the majority of the GF3's target audience will probably never notice their absence, while the speedy auto-focus may tempt more advanced users looking for a small and inconspicuous system.

4 stars

Ratings (out of 5)
Design 4
Features 4.5
Ease-of-use 4
Image quality 4.5
Value for money 4

Specifications

TYPE

Type Digital interchangeable lens system camera
Recording media SD memory card, SDHC memory card, SDXC memory card
Image sensor size 17.3 x 13.0 mm (in 4:3 aspect ratio)
Lens Mount Micro Four Thirds mount

IMAGE SENSOR

Type Live MOS Sensor
Total pixels 13.06 Megapixels
Camera effective pixels 12.10 Megapixels
Colour filter Primary colour filter
Dust reduction system Supersonic wave filter

RECORDING SYSTEM

Recording file format Still Image: JPEG(DCF, Exif 2.3), RAW, / MPO (When attaching 3D lens in Micro Four Thirds standard) / Motion Image: AVCHD / QuickTime Motion JPEG
Aspect ratio 4:3, 3:2, 16:9, 1:1
Image quality RAW, RAW+Fine, RAW+Standard, Fine, Standard, / MPO+Fine, MPO+Standard (with 3D lens in Micro Four Thirds System standard)
Color Space sRGB, Adobe RGB
File size(Pixels)
Still Image [4:3] 4000x3000(L) / 2816x2112(M) / 2048x1536(S) / 1600x1200(When attaching 3D lens in Micro Four Third System standard) / [3:2] 4000x2672(L) / 2816x1880(M) / 2048x1360(S) / 1600x1064(When attaching 3D lens in Micro Four Third System standard) / [16:9] 4000x2248(L) / 2816x1584(M) / 1920x1080(S) / 1600x904(When attaching 3D lens in Micro Four Third System standard) / [1:1] 2992 x 2992 (L) / 2112 x 2112 (M) / 1504 x 1504 (S) / 1440x1440(When attaching 3D lens in Micro Four Third System standard)
Motion Image (Motion JPEG*1) [4:3] QVGA : 320 x 240, 30fps / VGA : 640 x 480, 30fps / [HD] 1280 x 720, 30fps
Motion Image (AVCHD*2 : NTSC) [Full HD] 1920×1080, 60i (sensor output is 30p) (FSH:17Mbps) / [HD] 1280 x 720, 60p (sensor output is 30p)?SH:17Mbps)
Motion Image (AVCHD*2 : PAL) [Full HD] 1920×1080, 50i (sensor output is 25p) (FSH:17Mbps) / [HD] 1280 x 720, 50p (sensor output is 25p)?SH:17Mbps)
Continuous recordable time (Motion images) AVCHD with picture quality set to [SH]: Approx. 160 min with H-FS014042 / Approx. 170 min with H-H014
Actual recordable time (Motion images) AVCHD with picture quality set to [SH]: Approx. 130 min with H-FS014042 / Approx. 150 min with H-H014

FOCUS

Type Contrast AF system
Focus mode AFS/ AFC/ MF
AF mode Face detection / AF Tracking / 23-area-focusing / 1-area-focusing/Pinpoint
AF detective range EV 0 - 18 (ISO100 equivalent)
AF assist lamp YES
AF lock Set the Fn button in custom menu to AF lock
Others Quick AF, Continuous AF (during motion image recording), AF+MF, Touch shutter, Touch MF Assist,

EXPOSURE CONTROL

Light metering system 144-zone multi-pattern sensing system
Light metering mode Intelligent Multiple / Center Weighted / Spot
Metering range EV 0 - 18 (F2.0 lens, ISO100 equivalent)
Exposure mode Program AE, Aperture Priority AE, Shutter Priority AE, Manual,
ISO sensitivity (Standard Output Sensitivity) Auto / Intelligent ISO / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400
Exposure compensation 1/3EV Step ±3EV
AE lock Set the Fn button in custom menu to AE lock
AE bracket 3,5 frame, in 1/3 or 2/3 EV Step, ±4/3 EV

WHITE BALANCE

White balance Auto / Daylight / Cloudy / Shade / Halogen / Flash / White Set 1, 2 / Color temperature setting / Portrait / Beauty skin / Sport / Flower / Collection / Baby / Pet / defocus control
White balance adjustment Blue/amber bias, Magenta/green bias
Color temperature setting 2500-10000K in 100K
White balance bracket 3 exposures in blue/ amber axis or in magenta/ green axis

SHUTTER

Type Focal-plane shutter
Shutter speed Still Images: 1/4000 ~ 60 / Motion image: 1/16000 ~ 1/30 (NTSC), 1/16000 ~ 1/25 (PAL)
Self timer 10sec, 3 images/ 2sec / 10sec

SCENE MODE

Still Image SCN mode Portrait / Soft Skin / Scenery / Architecture / Sports / Peripheral Defocus / Flower / Food / Objects / /Night Portrait / Night Scenery / Illiminatioms / Baby 1, 2 / Pet / Party / Sunset
Movie SCN mode Portrait / Soft Skin / Scenery / Architecture / Sports / Flower / Food / Objects / Low-light / Party / Sunset / (Activated by selecting Still Image SCN mode then pressing Movie Button. Still Image SCN modes without corresponding Movie SCN mode is recorded in mode suitable for the recording situation.)

Creative control

Creative control (Still image & Motion image) Expressive / Retro / High key / Sepia / High Dyamic / Miniature

BURST SHOOTING

Burst speed H: 3.8 frames/sec, M: 2.8 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images 7 images (when there are RAW files with the particular speed) / Unlimited consecutive shooting (when there are no RAW files) / (depending on memory card size, battery power, picture size, and compression)

BUILT-IN-FLASH

Type TTL Built-in-Flash, GN6.3 equivalent (ISO 160 ?m), Built-in Pop-up
Flash Mode Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, / Slow Sync., Slow Sync./Red-eye Reduction, Forced Off
Synchronization speed Less than 1/160 second
Flash synchronization 1st. Curtain Sync

LCD MONITOR

Type TFT LCD with Touch panel
Monitor size 3.0inch / 3:2 Aspect / Wide-viewing angle
Pixels 460K dots
Filed of view Approx. 100%
Monitor adjustment Brightness (7 levels), Cnotrast and Saturation (7 levels), Red tint (7 levels), Blue tint (7 levels)

LIVE VIEW

Digital zoom 2x, 4x
Extra Tele Conversion Still image: Max.2x (Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.) / Motion image: 3.1x (SH/H in AVCHD and HD/WVGA in Motion JPEG), 4.2x (VGA/QVGA in Motion JPEG)
Other functions Guide Lines (3 patterns) / Real-time Histogram

PLAYBACK

Playback mode Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (16x Max.), Slideshow (duration & effect is selectable), Playback Mode (Normal/Picture/AVCHD/Motion JPEG/3D Play/Category/Favorite), Title Edit, / Text Stamp, Video Divide, Resize, Cropping, Aspect Conversion, Rotate, Rotate Display, Favorite, Print set, Protect, Face Recognition Edit

IMAGE PROTECTION / ERASE

Protection Single / Multi, Single in Burst Group / Multi in Burst Group, Cancel
Erase Single / Multi / All / Except Favorite

PRINT

Direct Print PictBridge compatible?Print size, Layout, Date setting are selectable ?

INTERFACE

USB USB 2.0 High Speed
HDMI miniHDMI TypeC / Video: Auto / 1080i / 720p / 480p (576p in PAL system) / Audio: Linear PCM
Audio video output Monaural Type, NTSC/PAL, NTSC only for North America / *Check the website of the Panasonic sales company in your country or region for details on the products that are available in your market.
Microphone Monaural, Wind-cut: Off / Low / Standard / High / Microphone level adjustable: Lv1 / Lv2 / Lv3 / Lv4
Speaker Monaural

LANGUAGE

OSD language Japanese, English, German, French, Italian, Spanish

GENERAL

Power
Battery Li-ion Battery Pack (7.2V, 940mAh) (Included) / Battery Charger
Battery life (CIPA standard) Approx. 340 images with H-H014
Dimensions (W x H x D) 107.7 x 67.1 x 32.5 mm / 4.24 x 2.64 x 1.28 inch?(excluding protrusions)
Weight Approx. 264g / 9.31 oz ?SD card, Battery, Body) / Approx. 222g / 7.83 oz ?Body only) / Approx. 319g / 11.25 oz ?SD card, Battery, H-H014 lens included?
Operating Environment
Operating temperature 0? to 40? (32°F to 104°F)
Operating humidity 10% to 80?
Standard Accessories
Software PHOTOfunSTUDIO 6.2 HD Edition / SILKYPIX® Developer Studio 3.1 SE / Super LoiloScope (trial version) / USB Driver
Standard accessories Battery Charger, AV Cable, USB Connection Cable, Shoulder Strap, Stylus pen, CD-ROM / * Body cap not included for DMC-GF3C kit and DMC-GF3W kit / ** Lens rear cap of H-H014 lens not included for DMC-GF3C kit and DMC-GF3W Kit

INTERCHANGEABLE LENS-1

Lens Name LUMIX G 14mm/F2.5 ASPH.
Lens Construction 6 elements in 5 groups (3 aspherical lenses)
Mount Micro Four Thirds mount
Optical Image Stabilizer No
Focal Length f=14mm (35mm camera equivalent 28mm)
Aperture Type 7 diaphragm blades / Circular aperture diaphragm
Aperture F2.5
Minimum Aperture F22
Closest Focusing Distance 0.18m / 0.59ft
Maximum magnification Approx. 0.10x / 0.20x (35mm camera equivalent)
Diagonal Angle of View 75°
General
Filter Size φ46mm / 1.81in
Max. Diameter φ55.5mm / 2.19in
Overall Length Approx. 20.5mm (from the tip of the lens to the base side of the lens mount) / 0.81in
Weight [g] Approx. 55g
Weight [oz] Approx. 1.94oz
Standard Accessories Lens cap / Lens rear cap / Lens storage bag

Further Specifications

NOTE *1 Use a card with SD Speed Class with "Class6" or higher / *2 Use a card with SD Speed Class with "Class4" or higher

Your Comments

Loading comments…
