Panasonic Lumix DMC-GX8 Review
Introduction
The Panasonic Lumix DMC-GX8 is a brand new compact system camera aimed at the keen enthusiast. The GX8 integrates 4K video recording capability with a variety of 4K Photo functions, capable of recording 4K UHD (3840 x 2160 pixels) video with either 30p or 24p frames rates at 100Mbps in the MP4 format. The Panasonic GX8 features a new 20-megapixel Digital Live MOS sensor (making it the highest resolution Micro Four Thirds body to date), a built-in 90-degree tilt-able Live View Finder (LVF) with 2360k dots and 1.54x / 0.77x magnification, and a free-angle 3-inch touch-sensitive rear LCD screen with a resolution of 1040K dots. The DMC-GX8 also offers Panasonic’s first Dual I.S (Image Stabiliser), a splash and dustproof magnesium alloy body, 8fps continuous shooting, low-light focusing down to -4 EV, focus peaking, silent mode for street photography, built-in wi-fi and NFC connectivity, ultra-high speed AF of just 0.07 sec, mechanical (1/8000th sec shutter speed) and silent electronic (1/16000th sec shutter speed) shutters, RAW support and an ISO range of 100-25600. The Panasonic GX8 is available in black or silver for £999 / $1199 body-only, £1099 with the 14-42mm lens, £1399 with the 14-140mm lens, and £1699 with the 12-35mm F2.8 lens.
Ease of Use
The new Panasonic Lumix DMC-GX8 is the successor to the two-year-old GX7, which actually continues in the range for the forseeable future. Comparing the two cameras side-by-side quickly reveals that the GX8 is a bigger, heavier and more serious affair than its predecessor, with a higher launch price to boot. Compared to the direct compeititon, the GX8 is similar in sizer and weight to the Olympus OMD-EM1 and the Fujifilm X-T1. Within the Panasonic range, only the flagship DMC-GH4 sits above the GX8, which with its DSLR-styling and video-centric positioning is an altogether different proposition.
The magnesium alloy bodied Panasonic GX8 is quite a large Micro Four Thirds camera, measuring 133.2 x 77.9 x 63.1mm, and weighing 435g without a lens attached or battery inserted, although this is only actually 33g more than the GX7. Even with a slim lens like Panasonic's 20mm pancake fitted, the GX8 isn't pocketable, being much more at home in a small camera bag, which may be a deal-breaker for some. The Panasonic Lumix DMC-GX8 has a chunky hand-grip on the right that really helps with the camera's handling, with more than enough room to accommodate three fingers. This works in tandem with the sculpted rubberized thumb-rest on the rear to ensure that it's easy to get a grip on the GX8.
The GX8 follows in the footsteps of the GX7 by again featuring a built-in electronic viewfinder. The 4:3 ratio OLED display has a high resolution of 2360k dots, slightly reduced from the GX7's 2764k dots, but now offering an impressive 1.54x / 0.77x magnification thanks to the newly designed large eyecup, which makes looking through it even more of a pleasure. There's a high color reproduction of approximately 100% of the Adobe RGB colourspace, 10,000:1 High Contrast and the ability to separately adjust the brightness, contrast and saturation.
There's also a handy sensor which automatically detects when the camera is held up to eye-level and even starts auto-focusing, with just the slightest delay until the display is ready. Thirdly, a whole host of information is displayed onscreen - virtually everything that you can display on the rear LCD screen can be shown in the EVF. And last but not least, the viewfinder can be physically tilted through 90-degrees, acting as a conventional finder or a waist-level finder and anything in between. Suffice to say that we didn't miss having an optical viewfinder when shooting with the GX8.

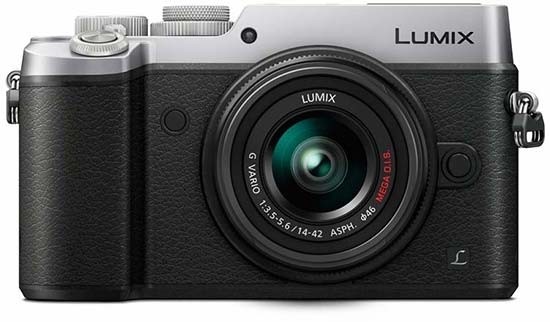

Front of the Panasonic Lumix DMC-GX8 |
Working in tandem with the tilting electronic viewfinder is the new free-angle 3-inch OLED screen on the back of the GX8. The rotating, free-angle OLED monitor, which is hinged on the left side of the camera (looking from the rear), can be rotated 180 degrees for side to side and flipped out and twisted through 270 degrees. You can use the screen as a waist-level viewfinder, holding the camera overhead, and even for turning the DMC-GX8 on yourself for arm-length self-portraits. There's also the added benefit of folding the screen away against the camera body to protect it when stored in a camera bag, preventing it from becoming marked or scratched. The 1040K pixel, high-resolution screen delivers approximately 100% field of view (as does the electronic viewfinder). The Monitor Luminance function can be set to automatically detect the current lighting conditions and boost the LCD backlighting by up to 40% when shooting outdoors in bright sunshine, helping to keep the screen visible, or you can manually set it to one of three levels.
Just like every other Panasonic compact system camera, optical image stabilisation is supplied via the lens, in this case the top-of-the-range 12-35mm optic. But unlike every other Panasonic compact system camera except for its predecessor, the GX8 also offers image stabilisation built-in to the camera body too, with an improved four axes of compensation. And for the first time on a Panasonic camera, the two systems work together to combat camera-shake, rather than independently of one another.
In practice, the in-body system is always turned on when an image-stabilized lens is attached, with the usual modes available. There are two different modes, Mode 1 is on all the time including image composition, and Mode 2 compensates for up and down movements only (which in turn allows you to pan the camera). If a non-stabilized lens is attached, you also get the option to turn off in-body stabilization. If you fit a non-stabilized lens that the GX8 doesn't recognise, you need to enter its focal length from 8mm to 1000mm via the main menu system to benefit from the in-body stabilisation system.
The Wi-Fi function (IEEE 802.11 b/g/n) lets you use your smartphone to change the DMC-GX8's settings (focus setting, exposure compensation, ISO, WB and Photo Styles) and even fire the shutter button remotely (including interval video recordings), while the auto transfer function automatically backs up your photos onto a tablet. You can also use GPS data from your smartphone to record the shooting location onto your images. The DMC-GX8 also features NFC (Near Field Communication) technology (the same technology that's used for mobile payments), which allows you to connect it to a compatible internet enabled device or another NFC-enabled camera by simply tapping them together. The Panasonic Lumix DMC-GX8 offers a time lapse function in which you can set the time interval and the number of images to take, plus a multi-exposure option that lets you combine up to four exposures in a single frame.
The top shutter speed has also been increased to a very impressive 1/8000th second, making the GX8 one of the first compact system cameras with a mechanical shutter to offer such a high speed, and great for freezing fast-moving objects or shooting wide-open with fast lenses, even in bright conditions. The new electronic shutter function also raises the shutter speed to 1/16,000 sec. as well as allowing silent operation for quick, inconspicuous shooting.
On the front of the Panasonic Lumix DMC-GX8 is a small focus-assist and self-timer indicator lamp, lens release button, metal lens mount and the already mentioned chunky hand-grip. On the bottom is a metal tripod socket, importantly in-line with the middle of the lens barrel, and the shared battery compartment and SD/SDHC/SDXC memory card slot. The GX8 manages 330 shots using the supplied rechargeable Li-ion Battery Pack (7.2V, 1200mAh, 8.7Wh).
Rear of the Panasonic Lumix DMC-GX8 |
The right-hand side of the camera, looking from the rear, is empty save for the small NFC symbol. On the left are ports for the Remote/Mic socket, HDMI and AV Out/Digital connections, hidden beneath a plastic flap. Underneath is a small microphone, with protruding metal eyelets on either side of the body for the supplied camera strap.
The top of the GX8 houses the tilting electronic viewfinder, a flash hotshoe, small stereo speakers, a one-touch movie record button and a new configurable Fn button, shoulder-mounted shutter button surrounded by a control dial for setting the aperture/shutter speed, and a shooting mode dial that's directly on top of a new exposure compensation dial, making it easy to change this key exposure setting. Note that the GX7's built-in pop-up flash has been sacrificed to make way for the new second control dial, which cleverly has a small button at its centre that makes the dial toggle between two configurable settings. Despite having so many controls in such a small space, Panasonic have achieved the no mean feat of making the GX8's top-plate feel relatively uncluttered and intuitive.
The shooting mode dial offers the usual selection of Program, Aperture Priority, Shutter Priority, and Manual for the more experienced photographer. An optional exposure meter can be displayed in the P/A/S/M shooting modes which graphically shows the relationship between shutter speed and aperture, with a color-coded warning that alerts users when the settings are not in the proper range.
Intelligent Auto mode tries to make things as easy as possible for the complete beginner. It allows you to point and shoot the camera without having to worry about choosing the right scene mode or settings. Intelligent Auto Mode automatically determines a number of key criteria when taking a picture, including selecting the most appropriate scene mode (from 5 commonly used presets) and ISO speed, and turning face detection (up to 15 faces), image stabilization and quick auto-focus on.
The Intelligent Auto Plus Mode also includes Intelligent Exposure, which increases exposure only in the under-exposed areas of the image, Digital Red-eye, which automatically detects and removes red-eye, and AF Tracking, which continually tracks a moving subject and keeps it in focus, without you having to hold the shutter button halfway down as on most other cameras.
More beginner-friendly Scene modes are also available. One scene mode particularly worthy of mention is the Peripheral Defocus option, which makes it easy for beginners to achieve a blurred background / sharp subject effect without having to understand what apertures are. For more advanced users, the GX8 offers a graduation curve which can be used to individually tune the contrast behavior of the camera. The highlights and shadows can be adjusted via the touchscreen or front and rear control dials to create your own unique look, which can then be stored on one of three custom settings (or one of the three presets can be selected). Additionally there are 3 custom shooting modes which allow you to configure your favourite camera settings and quickly access them via the dedicated C1, C2 and C3 modes.
Top of the Panasonic Lumix DMC-GX8 |
The DMC-GX8's range of Creative Controls, denoted by an artist's palette, now offers a whopping 22 options - you can see examples on the Image Quality page. You can also fine-tune each effect via a series of simple on-screen sliders for color, saturation and contrast, complete with a real-time preview of your changes. The camera even provides filter recommendations and on-screen scene guides. The Panorama mode allows you create a vertical or horizontal panoramic image (standard or wide settings), which is easily taken by 'sweeping' with the camera while keeping the shutter release depressed., plus there's the ability to apply any of the different filter effects to the panorama.
The DMC-GX8 offers both AVCHD video capture and MP4, with the latter offering 4K recording at in 3840x2160 at 25p (50Hz) or 24p in MP4 with full-time auto-focusing. Interestingly, if you want to shoot the maximum 4K video – i.e twice as high quality as Full HD – then a switch to MP4 mode is required before you can implement that setting on the Panasonic, with the choice of 25 or 24 frames per second capture speed. In other words 4K shooting is not available with AVCHD compression. You can also extract a still image from a 4K sequence, ending up with the equivalent of an 8 megapixel photo at 30fps.
The Panasonic Lumix DMC-GX8 is an intriguing prospect for would-be videographers, providing access as it does to the same creative exposure P,A,S,M modes selectable when shooting stills. You also get access to all the Photo Style and Creative Control modes when shooting video. ISO settings, white balance and AF tracking are also all accessible when shooting movies. The normal bugbear of exterior location shoots is also dealt with thanks to a wind cut option among the four screen's worth of menu settings in motion picture mode.
The DMC-GX8's Intelligent Auto mode works for movies as well as for still photos. Simply select the iA shooting mode on top of the camera, then the Movie Record button. The Intelligent Scene Selector automatically determines the most suitable Scene mode from five options - Portrait, Scenery, Low Light and Close-up or Normal modes. Face Detection automatically detects a face in the frame and adjusts the focus, exposure, contrast, and skin complexion. Intelligent Exposure continually checks the ambient light level and adjusts the exposure setting as conditions change to prevent blown highlights and blocked shadows. The Image Stabilizer helps prevent blurring from hand-shake when using a compatible lens or via the camera body. One great benefit of the touch-screen control system is that Touch Auto Focusing is available in movie recording, enabling pro-level rack-like focusing simply by pointing at the subject on the LCD screen.
There are three 4K Photo functions - 4K Burst Shooting, 4K Burst (Start/Stop) and 4K Pre-burst which all record continuous 8 megapixel stills at a 30fps shooting rate. 4K Burst allows you to continuously record 8 megapixel images at 30fps, 4K Pre-Burst does the same but for one second prior to and one second after pressing the shutter button in order, giving you 60 frames to choose from, and 4K Burst (S/S) allows you to playback your video, pause at the chosen moment, and use the shutter button to mark a chosen frame from the video and save it as a single 8 megapixel frame.
The DMC-GX8 inherits the DMC-G6's clever touchscreen interface. Panasonic have wisely restricted the amount of things that you can do by interacting with the screen, and indeed you can still operate everything on the camera without having to push and prod the LCD at all. You would be missing out on a lot of genuinely useful functionality, though, which really improves the overall shooting experience. The DMC-GX8 has a feature called Touchpad AF which allows you to move the focus point area with your finger on the LCD while you're looking through the EVF.
Tilting LCD Screen |
The most immediately noticeable function is the ability to use the 1-area AF mode to focus on your main subject simply by touching it on the LCD. If the subject then moves, the DMC-GX8 cleverly follows it around the screen using the the AF tracking function. If the subject exits the frame entirely, simply recompose and tap it again to start focusing. Impressive stuff that makes focusing on off-center subjects fast and intuitive. It is a little too easy to accidentally press the screen and set the focus point to the wrong area for the current subject, but a simple tap in the middle of the LCD will center the AF point (or you can turn this feature off altogether).
The size of the AF point itself can also be changed via an interactive onscreen slider. If Face Detection is enabled, the 1-area AF point can be manually set to a person's eye to help ensure that the most important part of a portrait is in focus. If Multi-area AF rather than 1-area AF is enabled, then you can select a group of 4, 5 or 6 AF points from 9 different areas, again providing some manual control over what is traditionally a rather hit and miss affair.
When Intelligent Auto is switched on, the DMC-GX8 changes the scene mode used when you touch the subject, for example selecting portrait mode if you touch a face and macro mode if you touch a close-up flower. If you prefer to manually focus rather than use the snappy AF, you can magnify any part of the subject by 1x, 5x or 10x by simply dragging the image around the screen. The final touchscreen ability from an image composition point of view is the ability to release the shutter, with a small icon on the right hand screen enabling this functionality, and then a single on-screen tap all that's required to take the picture.
All of the menu options can now be changed via the touchscreen interface. You can also control image playback by touching the screen, with the ability to tap a thumbnail to see the full-size version, scroll through your images by dragging them from side to side, and magnifying them up to 16x.
Above the LCD screen is the aforementioned electronic viewfinder, and to the right of this is a button for manually switching between the viewfinder and LCD screen (which can optionally be configured as a Function button). To the right again is a switch for choosing between the auto and manual focus modes, with yet another Fn button at its centre. The GX8 offers three auto-focus modes - AF Single, AF Flexible, and AF Continuous. AF Flexible is a relatively new mode which conventionally locks the focus when the shutter button is half-pressed, but then automatically resets it if the subject moves. Notably the GX8 can focus on a subject in very low light situations, such as under starlight, with Panasonic claiming an industry leading level of -4EV. A useful AF/AE Lock is located to the right of the rear thumb-rest.
Focus Peaking is also available on the GX8. When enabled, it graphically shows the peak of focus in the MF and AF+MF modes by displaying an outline around the subject. The detection level can be set to 'High' or ‘Low’ and a colour can be selected In ‘High’ these are light blue, yellow or green and in 'Low' blue, orange or white can be selected.
The Panasonic Lumix DMC-GX8 In-hand |
Directly to the right of the LCD screen is the Quick Menu button, which is again customisable to suit your way of working, although we can't see why you'd want to turn off the Quick Menu, which as the name suggests provides quick access to most of the principal controls via an onscreen menu. Depending on the current shooting mode, this displays up to 13 options that can all be changed via the touch-screen. You can also configure it to include up to 10 out of 19 available settings simply by dragging and dropping the onscreen icons. You can still access all of these options from the main menu system too if you wish.
Underneath is a self-explanatory Playback button alongside the Display button which toggles detailed settings information about each picture on and off, such as the ISO rating and aperture / shutter speed. Underneath again is a traditional 4-way navigation D-Pad system with Menu/Set button in the centre. Pressing left, up, right and down on the D-Pad buttons selects AF Mode, ISO Speed, White Balance and 4K / Burst / Self-timer options respectively.
The main menu system on the DMC-GX8 is straight-forward to use and is accessed by pressing the Menu/Set button in the middle of the navigation D-Pad. There are five main menus represented by large icons, Record, Motion Picture, Custom, Setup and Playback. As an indication of how configurable the GX8 is, the Custom menu has 42 different options, allowing you to fine-tune this camera to suit your way of working. If you have never used a digital camera before, or you're upgrading from a more basic model, reading the easy-to-follow manual before you start is a good idea. Unfortunately Panasonic have only chosen to supply a basic guide in printed format, with the full manual only available as a PDF on the product CD.
The DMC-GX8 employs the same Contrast Auto Focus system that is commonly used by compact cameras. Despite this, the DMC-GX8's auto-focus system is as fast, if not faster, than a typical DSLR camera's, with a claimed speed of just 0.07 second when used with certain lenses, and a still impressive 0.18 second with the 14-42mm kit lens. In practice we noticed very little difference in speed between the DMC-GX8 and a DSLR, and there were also very few occasions when the DMC-GX8 failed to lock onto the subject, especially when using the centre AF point.
The DMC-GX8 additionally boasts a mode called Low Light AF which allows the camera to focus even in moonlight without needing to use the AF assist lamp, while the Starlight AF mode allows you to capture individual stars and constellations in the night sky. There are a wide range of AF modes on offer, including multiple-area AF with up to 23 focus areas, 1-area AF with a selectable focus area, Face Detection, and AF Tracking. The DMC-GX8 also has a useful Quick AF function that begins focusing as soon as you point the camera.
The start-up time from turning the Lumix DMC-GX8 on to being ready to take a photo is very impressive at less than 0.5 seconds. It takes about 1 second to store a JPEG image, allowing you to keep shooting as they are being recorded onto the memory card. Storing a single RAW image only takes around 1 second. The Panasonic Lumix DMC-GX8 has a very good Burst mode which enables you to take 8 frames per second when using the mechanical shutter for around 100 JPEG images at the highest image quality, or 30 RAW images. There's also a faster 10fps mode when using the electronic shutter, and a 6fps mode at full 16 megapixel resolution with AF Tracking turned on to capture moving subjects. The electronic shutter function also raises the shutter speed to 1/16,000 sec. as well as allowing silent operation for quick, inconspicuous shooting.
Image Quality
All of the sample images in this review were taken using the 20 megapixel Fine JPEG setting, which gives an average image size of around 9Mb.
The Panasonic Lumix DMC-GX8 produced images of outstanding quality during the review period. It produces noise-free images at ISO 100 to 1600, with limited noise starting to appear at ISO 3200. ISO 6400 exhibits quite visible noise and loss of fine detail, and the fastest settings of ISO 12800 and 25600 are even noisier but still usable for small prints and web use.
The images were a little soft straight out of the camera at the default sharpening level and ideally require further sharpening in an application like Adobe Photoshop, or you can change the in-camera setting if you don't like the default results. The large number of Filters and Photo Styles allow you to quickly and easily customise the look of the camera's JPEG images.
The night photograph was excellent, with the maximum shutter speed of 60 seconds allowing you to capture plenty of light. We struggled to see any differences between the Intelligent Resolution settings, but Intelligent D-range is an effective feature for capturing more detail in the shadows and highlights, as is the HDR mode. The clever Panorama mode allows you to take panoramic images very easily by 'sweeping' with the camera, with the ability to apply one of the creative filters if you wish.
Noise
There are 9 ISO settings available on the Panasonic Lumix DMC-GX8. Here are some 100% crops which show the noise levels for each ISO setting, with JPEG on the left and RAW on the right:
JPEG |
RAW |
ISO 100 (100% Crop) |
ISO 100 (100% Crop) |
ISO 200 (100% Crop) |
ISO 200 (100% Crop) |
ISO 400 (100% Crop) |
ISO 400 (100% Crop) |
ISO 800 (100% Crop) |
ISO 800 (100% Crop) |
ISO 1600 (100% Crop) |
ISO 1600 (100% Crop) |
ISO 3200 (100% Crop) |
ISO 3200 (100% Crop) |
ISO 6400 (100% Crop) |
ISO 6400 (100% Crop) |
ISO 12800 (100% Crop) |
ISO 12800 (100% Crop) |
ISO 25600 (100% Crop) |
ISO 25600 (100% Crop) |
File Quality
The Panasonic Lumix DMC-GX8 has 2 different JPEG image quality settings available, with Fine being the highest quality option. Here are some 100% crops which show the quality of the various options, with the file size shown in brackets.
Fine (9.08Mb) (100% Crop) |
Normal (4.08Mb) (100% Crop) |
RAW (23.1Mb) (100% Crop) |
|
Sharpening
Here are two 100% crops which have been Saved as Web - Quality 50 in Photoshop. The right-hand image has had some sharpening applied in Photoshop. The out-of-the camera images are a little soft at the default sharpening setting, and benefit from further sharpening in a program like Adobe Photoshop. You can also change the in-camera sharpening level by tweaking the Film Mode, with five different settings available.
Original (100% Crop) |
Sharpened (100% Crop) |
Night
The Panasonic Lumix DMC-GX8 maximum shutter speed is 60 seconds and there's also a Bulb option for exposures up to 4 minutes long, which is excellent news if you're seriously interested in night photography. The shot below was taken using a shutter speed of 15 seconds at ISO 125. The camera takes the same amount of time again to apply noise reduction, so for example at the 15 second setting the actual exposure takes 30 seconds.
Night |
Night (100% Crop) |
Image Stabilisation
The Panasonic Lumix DMC-GX8's offers two kinds of image stabilisation that work in conjunction with each other - built-into the camera body, and via the 12-35mm kit lens. Image stabilisation allows you to take sharp photos at slower shutter speeds than other digital cameras. To test this, we took 2 handheld shots of the same subject with the same settings. The first shot was taken with image stabilisation turned off on the lens, the second with it turned on. Note that you can't actually manually turn off the off the in-camera image stabilisation.
Shutter Speed / Focal Length | Image Stabilisation Off (100% Crop) | Image Stabilisation On (100% Crop) |
1/8 sec / 70mm |
Intelligent Resolution
The Panasonic Lumix DMC-GX8's Intelligent Resolution feature identifies outlines, texture areas and soft gradation areas of the image and then automatically optimizes the edges and detailed texture areas while using noise reduction to make the soft gradation areas smoother. There are three available strengths - low, standard and high.
Off |
Low |
Standard |
High |
Extended | |
Intelligent Dynamic
The Panasonic Lumix GX8's Intelligent Dynamic mode adjusts the exposure setting to record more detail in the highlights and shadows, with three strengths available - low, standard and high.
Off |
Low |
Standard |
High |
HDR
In the HDR mode the Panasonic Lumix GX8 combines 3 frames taken at different exposures to create a single image with increased dynamic range.
Off |
+1EV |
+2EV |
+3EV |
Multiple Exposure
The Panasonic Lumix DMC-GX8's Multiple Exposure mode combines two or three different pictures to create one composite image.
Multiple Exposure |
Photo Styles
Panasonic's Photo Styles, similar to Nikon's Picture Styles, Canon's Picture Controls and Olympus' Picture Modes, are preset combinations of different sharpness, contrast, saturation and noise reduction settings. The six available Photo Styles are shown below in the following series, which demonstrates the differences. There is also a Custom option so that you can create your own look.
Standard |
Vivid |
Natural |
Monochrome |
Scenery |
Portrait |
Filters
The Panasonic Lumix DMC-GX8 has an extensive range of creative Filters with 22 different options on offer.
Expressive |
Retro |
Old Days |
High Key |
Low Key |
Sepia |
Monochrome |
Dynamic Monochrome |
Rough Monochrome |
Silky Monochrome |
Impressive Art |
High Dynamic |
Cross Process |
Toy Effect |
Toy Pop |
Bleach Bypass |
Miniature Effect |
Soft Focus |
Fantasy |
Star Filter |
One Point Color |
Sunshine |
Panoramas
The Panasonic Lumix DMC-GX8 allows you to take panoramic images very easily, by 'sweeping' with the camera while keeping the shutter release depressed. The camera does all the processing and stitching and even successfully compensates for moving subjects.
Standard |
Wide |
Sample Images
This is a selection of sample images from the Panasonic Lumix DMC-GX8 camera, which were all taken using the 20 megapixel Fine JPEG setting. The thumbnails below link to the full-sized versions, which have not been altered in any way.
1/50s · f/4 · ISO 200
50mm
Download Original
1/100s · f/4 · ISO 400
50mm
Download Original
1/200s · f/4 · ISO 800
50mm
Download Original
1/400s · f/4 · ISO 1600
50mm
Download Original
1/800s · f/4 · ISO 3200
50mm
Download Original
1/1600s · f/4 · ISO 6400
50mm
Download Original
1/3200s · f/4 · ISO 12800
50mm
Download Original
1/6400s · f/4 · ISO 25600
50mm
Download Original
1/25s · f/4 · ISO 100
52mm
Download Original
1/250s · f/8 · ISO 100
24mm
Download Original
1/320s · f/8 · ISO 100
70mm
Download Original
1/320s · f/8 · ISO 100
70mm
Download Original
1/160s · f/11 · ISO 100
24mm
Download Original
1/160s · f/11 · ISO 100
24mm
Download Original
1/160s · f/11 · ISO 100
70mm
Download Original
1/1300s · f/2.8 · ISO 100
70mm
Download Original
1/640s · f/2.8 · ISO 100
70mm
Download Original
1/800s · f/2.8 · ISO 100
70mm
Download Original
1/400s · f/7.1 · ISO 100
24mm
Download Original
1/1000s · f/2.8 · ISO 100
66mm
Download Original
1/800s · f/2.8 · ISO 100
66mm
Download Original
1/1300s · f/2.8 · ISO 100
66mm
Download Original
1/320s · f/8 · ISO 100
24mm
Download Original
1/500s · f/2.8 · ISO 100
70mm
Download Original
1/800s · f/2.8 · ISO 100
70mm
Download Original
1/30s · f/8 · ISO 100
24mm
Download Original
1/60s · f/8 · ISO 100
70mm
Download Original
1/100s · f/8 · ISO 100
70mm
Download Original
1/5s · f/8 · ISO 100
70mm
Download Original
1/25s · f/8 · ISO 100
26mm
Download Original
1/30s · f/2.8 · ISO 100
70mm
Download Original
1/800s · f/2.8 · ISO 100
70mm
Download Original
1/80s · f/8 · ISO 100
24mm
Download Original
1/100s · f/2.8 · ISO 100
70mm
Download Original
1/500s · f/2.8 · ISO 100
70mm
Download Original
1/125s · f/2.8 · ISO 100
70mm
Download Original
1/200s · f/2.8 · ISO 100
70mm
Download Original
1/30s · f/8 · ISO 100
24mm
Download Original
1/25s · f/8 · ISO 100
24mm
Download Original
1/250s · f/8 · ISO 100
24mm
Download Original
1/200s · f/8 · ISO 100
70mm
Download Original
1/60s · f/8 · ISO 100
24mm
Download Original
1/25s · f/8 · ISO 100
70mm
Download Original
1/250s · f/11 · ISO 100
70mm
Download Original
1/1000s · f/2.8 · ISO 100
70mm
Download Original
1/1000s · f/2.8 · ISO 100
70mm
Download Original
1/50s · f/5.6 · ISO 100
24mm
Download Original
1/100s · f/8 · ISO 100
26mm
Download Original
1/100s · f/8 · ISO 100
70mm
Download Original
1/160s · f/4 · ISO 100
70mm
Download Original
1/125s · f/11 · ISO 100
24mm
Download Original
1/250s · f/2.8 · ISO 100
70mm
Download Original
1/500s · f/2.8 · ISO 100
70mm
Download Original
1/800s · f/2.8 · ISO 100
70mm
Download Original
1/60s · f/2.8 · ISO 100
24mm
Download Original
1/60s · f/2.8 · ISO 100
42mm
Download Original
1/400s · f/8 · ISO 100
48mm
Download Original
1/160s · f/8 · ISO 100
24mm
Download Original
1/30s · f/8 · ISO 100
24mm
Download Original
1/80s · f/2.8 · ISO 250
70mm
Download Original
1/100s · f/8 · ISO 200
24mm
Download Original
1/80s · f/8 · ISO 200
24mm
Download Original
1/80s · f/8 · ISO 3200
70mm
Download Original
1/4000s · f/2.8 · ISO 200
70mm
Download Original
1/200s · f/8 · ISO 200
24mm
Download Original
1/400s · f/8 · ISO 6400
70mm
Download Original
1/50s · f/8 · ISO 3200
70mm
Download Original
1/200s · f/2.8 · ISO 800
70mm
Download Original
1/320s · f/2.8 · ISO 800
70mm
Download Original
1/125s · f/8 · ISO 400
24mm
Download Original
1/80s · f/8 · ISO 3200
70mm
Download Original
1/125s · f/8 · ISO 200
70mm
Download Original
1/10s · f/11 · ISO 200
38mm
Download Original
1/25s · f/8 · ISO 800
70mm
Download Original
1/2000s · f/2.8 · ISO 1600
70mm
Download Original
1/640s · f/2.8 · ISO 3200
70mm
Download Original
1/2000s · f/2.8 · ISO 200
70mm
Download Original
1/320s · f/2.8 · ISO 800
70mm
Download Original
1/320s · f/2.8 · ISO 400
70mm
Download Original
1/640s · f/2.8 · ISO 400
70mm
Download Original
1/320s · f/2.8 · ISO 400
70mm
Download Original
1/1300s · f/2.8 · ISO 800
70mm
Download Original
1/2500s · f/2.8 · ISO 1600
70mm
Download Original
1/4000s · f/2.8 · ISO 1600
70mm
Download Original
1/160s · f/5.6 · ISO 800
24mm
Download Original
1/1000s · f/2.8 · ISO 800
24mm
Download Original
1/1000s · f/2.8 · ISO 200
70mm
Download Original
1/400s · f/2.8 · ISO 200
70mm
Download Original
1/320s · f/8 · ISO 200
70mm
Download Original
1/4s · f/2.8 · ISO 100
24mm
Download Original
1/8s · f/2.8 · ISO 200
24mm
Download Original
1/15s · f/2.8 · ISO 400
24mm
Download Original
1/30s · f/2.8 · ISO 800
24mm
Download Original
1/60s · f/2.8 · ISO 1600
24mm
Download Original
1/125s · f/2.8 · ISO 3200
24mm
Download Original
1/250s · f/2.8 · ISO 6400
24mm
Download Original
1/500s · f/2.8 · ISO 12800
24mm
Download Original
1/1000s · f/2.8 · ISO 25600
24mm
Download Original
Sample RAW Images
The Panasonic Lumix DMC-GX8 enables users to capture RAW and JPEG format files. We've provided some Panasonic RAW (RW2) samples for you to download (thumbnail images shown below are not 100% representative).
1/50s · f/4 · ISO 200
50mm
Download original
1/100s · f/4 · ISO 400
50mm
Download original
1/200s · f/4 · ISO 800
50mm
Download original
1/400s · f/4 · ISO 1600
50mm
Download original
1/800s · f/4 · ISO 3200
50mm
Download original
1/1600s · f/4 · ISO 6400
50mm
Download original
1/3200s · f/4 · ISO 12800
50mm
Download original
1/6400s · f/4 · ISO 25600
50mm
Download original
1/25s · f/4 · ISO 100
52mm
Download original
1/250s · f/8 · ISO 100
24mm
Download original
1/320s · f/8 · ISO 100
70mm
Download original
1/320s · f/8 · ISO 100
70mm
Download original
1/160s · f/11 · ISO 100
24mm
Download original
1/160s · f/11 · ISO 100
24mm
Download original
1/160s · f/11 · ISO 100
70mm
Download original
1/1300s · f/2.8 · ISO 100
70mm
Download original
1/640s · f/2.8 · ISO 100
70mm
Download original
1/800s · f/2.8 · ISO 100
70mm
Download original
1/400s · f/7.1 · ISO 100
24mm
Download original
1/1000s · f/2.8 · ISO 100
66mm
Download original
1/1300s · f/2.8 · ISO 100
66mm
Download original
1/320s · f/8 · ISO 100
24mm
Download original
1/500s · f/2.8 · ISO 100
70mm
Download original
1/800s · f/2.8 · ISO 100
70mm
Download original
1/60s · f/8 · ISO 100
70mm
Download original
1/25s · f/8 · ISO 100
26mm
Download original
1/800s · f/2.8 · ISO 100
70mm
Download original
1/80s · f/8 · ISO 100
24mm
Download original
1/100s · f/2.8 · ISO 100
70mm
Download original
1/500s · f/2.8 · ISO 100
70mm
Download original
1/125s · f/2.8 · ISO 100
70mm
Download original
1/200s · f/2.8 · ISO 100
70mm
Download original
1/25s · f/8 · ISO 100
24mm
Download original
1/250s · f/8 · ISO 100
24mm
Download original
1/200s · f/8 · ISO 100
70mm
Download original
1/60s · f/8 · ISO 100
24mm
Download original
1/250s · f/11 · ISO 100
70mm
Download original
1/1000s · f/2.8 · ISO 100
70mm
Download original
1/50s · f/5.6 · ISO 100
24mm
Download original
1/100s · f/8 · ISO 100
70mm
Download original
1/160s · f/4 · ISO 100
70mm
Download original
1/125s · f/11 · ISO 100
24mm
Download original
1/250s · f/2.8 · ISO 100
70mm
Download original
1/500s · f/2.8 · ISO 100
70mm
Download original
1/60s · f/2.8 · ISO 100
24mm
Download original
1/60s · f/2.8 · ISO 100
42mm
Download original
1/30s · f/8 · ISO 100
24mm
Download original
1/100s · f/8 · ISO 200
24mm
Download original
1/80s · f/8 · ISO 200
24mm
Download original
1/80s · f/8 · ISO 3200
70mm
Download original
1/4000s · f/2.8 · ISO 200
70mm
Download original
1/200s · f/8 · ISO 200
24mm
Download original
1/400s · f/8 · ISO 6400
70mm
Download original
1/50s · f/8 · ISO 3200
70mm
Download original
1/320s · f/2.8 · ISO 800
70mm
Download original
1/125s · f/8 · ISO 400
24mm
Download original
1/80s · f/8 · ISO 3200
70mm
Download original
1/125s · f/8 · ISO 200
70mm
Download original
1/10s · f/11 · ISO 200
38mm
Download original
1/2000s · f/2.8 · ISO 1600
70mm
Download original
1/640s · f/2.8 · ISO 3200
70mm
Download original
1/2000s · f/2.8 · ISO 200
70mm
Download original
1/320s · f/2.8 · ISO 800
70mm
Download original
1/320s · f/2.8 · ISO 400
70mm
Download original
1/640s · f/2.8 · ISO 400
70mm
Download original
1/320s · f/2.8 · ISO 400
70mm
Download original
1/1300s · f/2.8 · ISO 800
70mm
Download original
1/2500s · f/2.8 · ISO 1600
70mm
Download original
1/4000s · f/2.8 · ISO 1600
70mm
Download original
1/160s · f/5.6 · ISO 800
24mm
Download original
1/1000s · f/2.8 · ISO 800
24mm
Download original
1/1000s · f/2.8 · ISO 200
70mm
Download original
1/320s · f/8 · ISO 200
70mm
Download original
1/8s · f/2.8 · ISO 200
24mm
Download original
1/15s · f/2.8 · ISO 400
24mm
Download original
1/30s · f/2.8 · ISO 800
24mm
Download original
1/60s · f/2.8 · ISO 1600
24mm
Download original
1/125s · f/2.8 · ISO 3200
24mm
Download original
1/250s · f/2.8 · ISO 6400
24mm
Download original
1/500s · f/2.8 · ISO 12800
24mm
Download original
1/1000s · f/2.8 · ISO 25600
24mm
Download original
Sample Movie & Video
This is a sample movie at the quality setting of 3840x2160 pixels at 25 frames per second. Please note that this 15 second movie is 176Mb in size.
Product Images
Front of the Panasonic Lumix DMC-GX8 |
Front of the Panasonic Lumix DMC-GX8 |
Front of the Panasonic Lumix DMC-GX8 / Tilting Viewfinder |
Side of the Panasonic Lumix DMC-GX8 |
Side of the Panasonic Lumix DMC-GX8 |
Side of the Panasonic Lumix DMC-GX8 |
Side of the Panasonic Lumix DMC-GX8 |
Rear of the Panasonic Lumix DMC-GX8 |
Rear of the Panasonic Lumix DMC-GX8 / Image Displayed |
|
Rear of the Panasonic Lumix DMC-GX8 / Turned On |
Rear of the Panasonic Lumix DMC-GX8 / Main Menu |
Rear of the Panasonic Lumix DMC-GX8 / Quick Menu |
Rear of the Panasonic Lumix DMC-GX8 / Tilting Viewfinder |
Rear of the Panasonic Lumix DMC-GX8 / Tilting LCD Screen |
Rear of the Panasonic Lumix DMC-GX8 / Tilting LCD Screen |
Top of the Panasonic Lumix DMC-GX8 |
Bottom of the Panasonic Lumix DMC-GX8 |
Side of the Panasonic Lumix DMC-GX8 |
Side of the Panasonic Lumix DMC-GX8 |
Front of the Panasonic Lumix DMC-GX8 |
Front of the Panasonic Lumix DMC-GX8 |
Memory Card Slot |
Battery Compartment |
Conclusion
The new rangefinder-styled Panasonic Lumix DMC-GX8 compact system camera gets a lot of things absolutely right, offering intuitive handling, lots of customisation options, solid weather-proofed build quality, and an excellent OLED viewfinder and rear screen, but some of the headline-grabbing features don't live up their full potential, while both the camera and its price have become somewhat inflated.
The GX8's new 20 megapixel sensor will garner a lot of headlines, but in reality it only offers approximately 15% more resolution than the 16-megapixel sensor that's used by the vast majority of Micro Four Thirds cameras, which is hardly earth-shattering. Thankfully the megapixel increase hasn't had a negative impact on overall image quality. Images shot at ISO 125-1600 are clean, with a little noise appearing at 3200 and more at the still very usable setting of 6400. ISO 12800 is best reserved for resizing and smaller prints, while the top speed of 25600 is only for emergency use, Overall the GX8 continues to offer excellent image quality, but the jump to 20 megapixels shouldn't be the reason that you buy this camera over a 16-megapixel competitor.
Similarly, the combination of a Lens Optical Image Stabiliser and a Body Image Stabiliser in the world's first Dual I.S system isn't quite as effective as it sounds. Sure, it moves things on for the Panasonic system in comparison to the rest of their current range, but the company and their new system is still very much playing catch-up with Olympus' market-leading 5-axis stabilisation.
In our view, the new 20 megapixel sensor and dual image stabilisation system prove to be less important than the much-improved OLED viewfinder and free-angle OLED rear screen, which along with the new exposure compensation dial, second control dial and an even larger number of customisable controls make the DMC-GX8 one of the best-handling compact system cameras currently on the market. There are a couple of trade-offs, notably the sacrifice of the GX7's pop-up flash and the larger size of the GX8, but overall this is the most intuitive and configurable Lumix CSC that we've reviewed.
In summary, the Lumix DMC-GX8 is another great compact system camera from Panasonic, but the new sensor and dual image stabilisation system aren't quite as revolutionary as advertised, and the larger design and crucially higher price-point also detract from what is otherwise an excellent, but not exceptional, camera.
Ratings (out of 5) | |
---|---|
Design | 4.5 |
Features | 5 |
Ease-of-use | 4.5 |
Image quality | 5 |
Value for money | 4 |
Main Rivals
Listed below are some of the rivals of the Panasonic Lumix DMC-GX8.
Canon EOS M3
The Canon EOS M3 is a new compact system camera that offers 24 megapixel resolution, full 1080p high-definition videos, a faster auto-focusing system, and a touch-screen interface. Other key features of the EOS M3 include a tilting 3-inch LCD screen, ISO range of 100-12,800, wi-fi and NFC connectivity, and a built-in flash. Is Canon's new mirrorless model finally a real contender? Read our Canon EOS M3 review to find out...
Fujifilm X-T1
The Fujifilm X-T1 is a brand new compact system camera that looks, feels and performs very much like a classic DSLR that''s been shrunk in the wash. Is this the best X-series camera that Fujifilm have released, and can it compete with the likes of the Sony A7/A7R and Olympus OM-D E-M1, not to mention DSLRs from Canon and Nikon? Read our in-depth Fujifilm X-T1 review to find out...
Nikon 1 V3
The Nikon 1 V3 is the latest flagship compact system camera from Nikon, boasting an amazingly fast 20fps burst shooting rate with continuous focusing (60fps without), a new tilting touchscreen LCD, built-in wi-fi, new 18.4-megapixel "CX" format sensor and a more compact design . Read our in-depth Nikon 1 V3 review to find out if this is the best Nikon compact system camera yet...
Olympus OM-D E-M1
The Olympus O-MD E-M1 is a new professional compact system camera. Targeting its DSLR rivals, Olympus are promoting the E-M1 as a smaller and more capable camera. Read our expert Olympus E-M1 review to find out if it really can beat the competition...
Olympus OM-D E-M5 Mark II
The Olympus OM-D E-M5 Mark II is a new high-end compact system camera with a number of innovative features that make it stand out from the crowd, including the world's most effective image stabilisation system. Read our expert Olympus E-M5 II review to find out if it's also the best compact system camera...
Panasonic Lumix DMC-G7
The Panasonic Lumix DMC-G7 is a new compact system camera designed to bring 4K shooting to the masses. With an affordable price-tag and a wealth of features, can the 4K Panasonic G7 succeed in an ever more crowded market-place? Read our in-depth Panasonic Lumix DMC-G7 review, with sample photos, test shots, videos and more, to find out...
Panasonic Lumix DMC-GH4
The Panasonic Lumix DMC-GH4 is the first compact system camera to offer 4K video shooting. The exciting GH4 also features a 16 megapixel sensor, 12fps burst shooting, 3 inch swivelling touchscreen, electronic viewfinder, built-in wi-fi and NFC connectivity, a weather-proof body, and an extensive ISO range of 100-25600. Read our in-depth Panasonic Lumix DMC-GH4 review complete with with sample photos, test shots, videos and more...
Samsung NX1
The NX1 is the new professional model in Samsung's compact system camera range. The weather-proof Samsung NX1 features a DSLR-like design, 3-inch tilting AMOLED screen, electronic viewfinder, 4K video recording, built-in wi-fi, bluetooth and NFC connectivity, 15fps burst shooting, and an APS-C CMOS sensor with 28.2 megapixels. Read our in-depth Samsung NX1 review, complete with sample images and video, to find out if this is a serious proposition for professionals...
Samsung NX500
The Samsung NX500 is the World's most affordable compact system camera to feature 4K video recording. The Samsung NX500 also features a compact rangefinder-like design, 3-inch tilting AMOLED screen, built-in wi-fi, bluetooth and NFC connectivity, 9fps burst shooting, and an APS-C CMOS sensor with 28.2 megapixels. Read our in-depth Samsung NX500 review, complete with sample images and videos, to find out if it's a game-changer...
Sony A6000
The Sony A6000 is a new compact system camera that features the fastest auto-focusing system in the world. With a 24.3 megapixel APS HD CMOS sensor, 1080p HD movies, high-res 3 inch OLED screen, electronic viewfinder and built-in flash, the Sony NEX-6 also offers 11fps burst shooting, wi-fi and NFC connectivity, and downloadable PlayMemories Camera Apps. Read our full Sony A6000 review to find out if it's the best Sony NEX camera yet...
Sony A7
The Sony A7 is the second mirrorless camera in the World to offer a full-frame sensor, but this time it's a slightly more modest 24 megapixels, rather than the A7R's 36 megapixels. The cheaper Sony A7 also offers a more innovative and potentially quicker hybrid AF system, faster flash sync and burst shooting speeds, and a quieter electronic shutter. Is the Sony A7 just as good as its big brother? Read our Sony A7 review to find out...
Specifications
TYPE | Type | Digital Single Lens Mirrorless camera | |
Recording media | SD Memory Card, SDHC Memory Card, SDXC Memory Card/(Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards) | ||
Image sensor size | 17.3 x 13.0 mm (in 4:3 aspect ratio) | ||
Lens mount | Micro Four Thirds mount | ||
IMAGE SENSOR | Type | Live MOS Sensor | |
Total pixels | 21.77 Megapixels | ||
Camera effective pixels | 20.30 Megapixels | ||
Color filter | Primary color filter | ||
Dust reduction system | Supersonic wave filter | ||
RECORDING SYSTEM | Recording file format | Still image | JPEG (DCF, Exif 2.3), RAW, MPO (When attaching 3D lens in Micro Four Thirds system standard) |
Motion picture | AVCHD (Audio format: Dolby Digital 2ch), MP4 (Audio format: AAC 2ch) | ||
Aspect ratio | 4:3, 3:2, 16:9, 1:1 | ||
Image quality | RAW, RAW+Fine, RAW+Standard, Fine, Standard/MPO+Fine / MPO+Standard (with 3D lens in Micro Four Thirds system standard) | ||
Color Space | sRGB, AdobeRGB | ||
File size(Pixels) | Still Image | [4:3] 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 1824x1368 (When attaching 3D lens in Micro Four Third system standard)/[3:2] 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 1824x1216 (When attaching 3D lens in Micro Four Third system standard)/[16:9] 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 1824x1024 (When attaching 3D lens in Micro Four Third system standard)/[1:1] 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 1712x1712 (When attaching 3D lens in Micro Four Third system standard) | |
Motion picture* | MP4*:PAL area | [4K] 3840x2160: 4K/25p 100Mbps, 4K/24p 100Mbps/[Full HD] 1920x1080: FHD/50p 28Mbps, FHD/25p 20Mbps/[HD] 1280x720: HD/25p 10Mbps/[VGA] 640x480: VGA/25p 4Mbps | |
AVCHD*:PAL area | [Full HD] 1920x1080: FHD/50p: 28Mbps, 50p recording/[Full HD] 1920x1080: FHD/50i: 17Mbps, 50i recording/[Full HD] 1920x1080: FHD/25p: 24Mbps, 50i recording (sensor output is 25fps)/[Full HD] 1920x1080: FHD/24p: 24Mbps | ||
Continuous recordable time (Motion picture) | AVCHD [FHD/50i]: Approx. 120 min (rear monitor), 120 min (LVF) with H-HS12035/AVCHD [FHD/50i]: Approx. 120 min (rear monitor), 120 min (LVF) with H-FS1442A/AVCHD [FHD/50i]: Approx. 120 min (rear monitor), 120 min (LVF) with H-FS14140/MP4 [4K/25p]: Approx. 100 min (rear monitor), 100 min (LVF) with H-HS12035/MP4 [4K/25p]: Approx. 100 min (rear monitor), 100 min (LVF) with H-FS1442A/MP4 [4K/25p]: Approx. 100 min (rear monitor), 100 min (LVF) with H-FS14140 | ||
Actual recordable time (Motion picture) | AVCHD [FHD/50i]: Approx. 60 min (rear monitor), 60 min (LVF) with H-HS12035/AVCHD [FHD/50i]: Approx. 65 min (rear monitor), 70 min (LVF) with H-FS1442A/AVCHD [FHD/50i]: Approx. 60 min (rear monitor), 60 min (LVF) with H-FS14140/MP4 [4K/25p]: Approx. 50 min (rear monitor), 50 min (LVF) with H-HS12035/MP4 [4K/25p]: Approx. 50 min (rear monitor), 50 min (LVF) with H-FS1442A/MP4 [4K/25p]: Approx. 50 min (rear monitor), 50 min (LVF) with H-FS14140 | ||
Image Stabilization System | Image Sensor Shift Type | ||
WiFi FUNCTION | WiFi | IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode | |
NFC | ISO/IEC 18092, NFC-F (Passive Mode) | ||
QR Code Connection | Yes | ||
Password-less connection | Yes (ON / OFF selectable) | ||
FOCUS | Type | Contrast AF system | |
Focus mode | AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF | ||
AF mode | Face/Eye Detection / Tracking / 49-Area / Custom Multi / 1-Area / Pinpoint/(Full area touch is available) | ||
AF detective range | EV -4 - 18 (ISO100 equivalent) | ||
AF assist lamp | Yes | ||
AF lock | Yes (AF/AE LOCK button) | ||
Others | One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter | ||
DFD technology | Yes | ||
Starlight AF | Yes | ||
VIEWFINDER | Tilting | Yes | |
Type | OLED Live View Finder (2,360k dots) | ||
Field of view | Approx. 100% | ||
Magnification | Approx. 1.54x / 0.77x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1 | ||
Eye point | Approx. 21 mm from eyepiece lens | ||
Diopter adjustment | -4.0 - +3.0 (dpt) | ||
Eye sensor | Yes | ||
Eye sensor adjustment | High / Low | ||
EXPOSURE CONTROL | Light metering system | 1728-zone multi-pattern sensing system | |
Light metering mode | Multiple / Center Weighted / Spot | ||
Metering range | EV 0 - 18 (F2.0 lens, ISO100 equivalent) | ||
Exposure mode | Program AE, Aperture Priority AE, Shutter Priority AE, Manual, | ||
ISO sensitivity (Standard Output Sensitivity) | Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)/(Up to ISO6400 in motion picture recording) (ISO Auto in M mode) | ||
Exposure compensation | 1/3 EV step ±5EV (±3EV for motion picture) | ||
AE lock | Yes (AF/AE LOCK button) | ||
AE bracket | 3, 5, 7 frames in 1/3, 2/3 or 1 EV Step, Max. ±3 EV, single/burst | ||
WHITE BALANCE | White balance | Auto / Daylight / Cloudy / Shade / incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting | |
White balance adjustment | Blue/Amber bias, Magenta/Green bias | ||
Color temperature setting | 2500-10000K in 100K | ||
White balance bracket | 3 exposures in blue/amber axis or in magenta/green axis | ||
SHUTTER | Type | Focal-plane shutter | |
Shutter speed | Still image: Bulb (Max. 30 minutes), 1/8,000 - 60/Motion picture: 1/16,000 - 1/25/Electronic shutter: 1/16,000 - 1 | ||
Self timer | 10sec, 3 images / 2sec / 10sec | ||
Remote control | Remote control with Bulb function by DMW-RSL1 (Optional) | ||
PANORAMA SHOT | Panorama shot | Yes (Standard / Wide) | |
BURST SHOOTING | Burst speed | Mechanical shutter/AFS: H: 8 frames/sec, M: 5.5 frames/sec (with Live View), L: 2 frames/sec (with Live View)/AFC: H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View)/Electronic shutter/AFS: H: 10 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View)/AFC: H: 6 frames/sec, M: 6 frames/sec (with Live View), L: 2 frames/sec (with Live View) | |
Number of recordable images | More than 30 images (when there are RAW files with the particular speed)/More than (TBD) images (when there are no RAW files)/(depending on memory card type, aspect, picture size and compression) | ||
FLASH | Flash type | TTL External Flash (Optional) | |
Flash Mode | Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off * For iA, iA+ only. | ||
Synchronization speed | Less than 1/250 second | ||
Flash output adjustment | 1/3EV step ±3EV | ||
Flash synchronization | 1st. Curtain Sync, 2nd Curtain Sync. | ||
Synchronization for flash dimming and exposure compensation | Yes | ||
REAR MONITOR | Type | OLED monitor with static touch control | |
Monitor size | Free-angle 3.0-inch / 3:2 aspect / Wide viewing angle | ||
Pixels | Approx. 1,040k dots | ||
Filed of view | Approx. 100% | ||
Monitor adjustment | Brightness, Contrast, Saturation, Red Tint, Blue Tint | ||
4K PHOTO MODE | Loop rec function | Yes (in 4K Burst (S/S) mode) | |
4K Photo mode* | 4K Burst: 30 frames/sec, max. 29 minutes 59 seconds/4K Burst (S/S): 30 frames/sec, max. 29 minutes 59 seconds/4K Pre-Burst: 30 frames/sec, approx. 2 seconds/(depending on memory card size and battery power) | ||
Exif information | Yes | ||
Selectable aspect ratio | Yes (4:3 / 3:2 / 16:9 / 1:1 are selectable) | ||
Exposure mode | Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure | ||
Marking function | Yes (in 4K Burst (S/S) mode) | ||
LIVE VIEW | Digital zoom | 2x, 4x | |
Extra Tele Conversion | Still image: Max. 2x/Motion picture: 2.7x (FHD), 4.0x (HD), 5.4x (VGA) | ||
Other functions | Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Center Marker, Highlight display (Still image / motion picture), Zebra pattern (Still image / motion picture) | ||
TIME LAPSE SHOT | Yes | ||
STOP MOTION ANIMATION | Yes | ||
DIRECTION DETECTION FUNCTION | Direction Detection Function | Yes | |
FUNCTION BUTTON | Fn1, Fn2, Fn3, Fn4, Fn5, Fn6, Fn7, Fn8, Fn9, Fn10, Fn11, Fn12, Fn13 | Wi-Fi / Q.MENU / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF/AE LOCK / AF-ON / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / 1 Shot RAW+JPG / 1 Shot Spot Metering / Cursor Button Lock / Dial Operation Switch / Photo Style / Filter Select / Aspect Ratio / Picture Size / Quality / Metering Mode / 4K PHOTO / Highlight Shadow / i. Dynamic / i. Resolution / HDR / Electronic Shutter / Flash Mode / Flash Adjust. / Ex. Tele Conv. / Digital Zoom / Stabilizer / Snap Movie / Motion Pic. Set / Picture Mode / Silent Mode / AFS/AFF / Peaking / Histogram / Guide Line / Zebra Pattern / Monochrome Live View / Rec Area / Step Zoom / Zoom Speed / Touch Screen / Sensitivity / White Balance / AF Mode/MF / Drive Mode / Restore to Default | |
PHOTO STYLE | Still image and motion picture | Standard / Vivid / Natural / Monochrome / Scenery / Portrait / Custom / Cinelike D* / Cinelike V* *When Creative Video Mode is selected. | |
SILENT MODE | Yes | ||
CREATIVE CONTROL | Still image | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome / Silky Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus / Fantasy / Star Filter / One Point Color / Sunshine | |
Motion picture | Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color | ||
MOTION PICTURE FUNCTION | Flicker reduction | [1/50] / [1/60] / [1/100] / [1/120] / OFF | |
Cinelike gamma | Cinelike D / Cinelike V | ||
PLAYBACK | Playback function | 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only / 4K PHOTO / 3D / Category Selection / Favorite, duration & effect is selectable), Playback Mode (Normal / Picture / Video / 4K PHOTO / 3D Play / Category / Favorite), Location Logging, RAW Processing, Clear Retouch, Title Edit, Text Stamp, Video Divide, Time Lapse Video, Stop Motion Video, Resize, Cropping, Rotate, Rotation Display, Favorite, DPOF Print Set, Protect, Face Recognition Edit, Picture Sort, Creating Still Pictures from a Motion Picture | |
IMAGE PROTECTION / ERASE | Protection | Single / Multi | |
Erase | Single / Multi / All / Except Favorite | ||
Direct Print | PictBridge compatible | ||
INTERFACE | USB | USB 2.0 High Speed Multi | |
HDMI** | microHDMI TypeD / VIERA Link/Video: Auto / 4K / 1080p / 1080i / 720p / 576p/Audio: Stereo | ||
Audio video output | Monaural Type, NTSC/PAL/*Check the website of the Panasonic sales company in your country or region for details on the products that are available in your market. | ||
Microphone | Stereo, Wind-cut: OFF / Standard / High | ||
Speaker | Monaural | ||
Remote input | φ2.5mm for remote | ||
External microphone input | φ2.5mm for external microphone/Stereo/Monaural is selectable when attaching DMW-MS1 (optional). | ||
LANGUAGE | OSD language | Japanese, English, German, French, Italian, Spanish | |
POWER | Battery | Li-ion Battery Pack (7.2V, 1200mAh, 8.7Wh) (Included)/Battery Charger | |
Battery life (CIPA standard) | Approx. 330 images (rear monitor), 310 images (LVF) with H-HS12035/Approx. 340 images (rear monitor), 320 images (LVF) with H-FS1442A/Approx. 330 images (rear monitor), 310 images (LVF) with H-FS14140 | ||
DIMENSIONS / WEIGHT | Dimensions (W x H x D) | 133.2 x 77.9 x 63.1 mm / 5.24 x 3.07 x 2.48 inch (excluding protrusions) | |
Weight | Approx. 487g / 1.07 lb (SD card, Battery, Body)/Approx. 435g / 0.96 lb (Body only)/Approx. 597g / 1.32 lb (SD card, Battery, H-FS1442A lens included)/Approx. 752g / 1.66 lb (SD card, Battery, H-FS14140 lens included)/Approx. 790g / 1.75 lb (SD card, Battery, H-HS12035 lens included) | ||
OPERATING ENVIRONMENT | Operating temperature | 0℃ to 40℃ (32°F to 104°F) | |
Operating humidity | 10%RH to 80%RH | ||
STANDARD ACCESSORIES | Software | PHOTOfunSTUDIO 9.7 PE/(Windows Vista / Windows 7 / Windows 8 / Windows 8.1)/SILKYPIX® Developer Studio 4.3 SE/(Windows Vista / Windows 7 / Windows 8 / Windows 8.1, Mac OS X v10.5 - v10.10)/LoiLoScope (Trial version)/(Windows Vista / Windows 7 / Windows 8 / Windows 8.1) | |
Standard accessories | DMC-GX8A Kit/Hot Shoe Cover, Body Cap, Battery Pack, Battery Charger, USB Connection Cable, Shoulder Strap, DVD, AC Cable*, Lens Hood, Lens Cap, Lens Rear Cap/* Depends on the country or region. | ||
CREATIVE VIDEO MODE | Exposure mode | Program AE / Aperture-Priority / Sutter-Priority / Manual Exposure | |
INTERCHANGEABLE LENS-1 | Lens Name | LUMIX G X VARIO 12-35mm / F2.8 ASPH. / POWER O.I.S. | |
Lens Construction | 14 elements in 9 groups (4 aspherical lenses , 1 UED lens, 1 UHR lens) | ||
Nano Surface Coating | Yes | ||
Mount | Micro Four Thirds mount | ||
Optical Image Stabilizer | Yes (POWER O.I.S.) | ||
Focal Length | f=12-35mm (35mm camera equivalent 24-70mm) | ||
Aperture Type | 7 diaphragm blades / Circular aperture diaphragm | ||
Maximum Aperture | F2.8 | ||
Minimum Aperture | F22 | ||
Closest Focusing Distance | 0.25m / 0.82ft | ||
Maximum magnification | Approx. 0.17x / 0.34x (35mm camera equivalent) | ||
Diagonal Angle of View | 84°(Wide) to 34°(TELE) | ||
General | Filter Size | φ58mm / 2.3in | |
Max. Diameter | φ67.6mm / 2.7in | ||
Overall Length | Approx. 73.8mm / 2.9in (from the tip of the lens to the base side of the lens mount) | ||
Weight [g] | Approx. 305g (excluding lens cap and lens rear cap) | ||
Weight [oz] | Approx. 10.8oz (excluding lens cap and lens rear cap) | ||
NOTE | * About motion picture recording / 4K Photo recording | ||
NOTE | - Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures. | ||
NOTE | - Use a card with SD Speed Class with "UHS-I UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [4K PHOTO]. | ||
NOTE | (SD speed class is the speed standard regarding continuous writing.) | ||
NOTE | - Maximum time to record motion pictures continuously with [MP4] in [4K] is 29 minutes 59 seconds. | ||
NOTE | - You can continuously record a motion picture with its size set to [4K] in [MP4] or [4K PHOTO] without a pause even if the motion picture exceeds 4GB. However, the recorded content has to be played back as multiple files. | ||
NOTE | - Maximum time to record motion pictures continuously with [MP4] in [FHD] [HD] [VGA] is 29 minutes 59 seconds or up to 4 GB. | ||
NOTE | - Maximum time to record motion pictures continuously with [AVCHD] is 29 minutes 59 seconds. | ||
NOTE | ** For [4K] video output, use an HDMI cable that has the HDMI logo on it, and that is described as"4K compatible". |
Loading comments…
