Introduction

Ease of Use

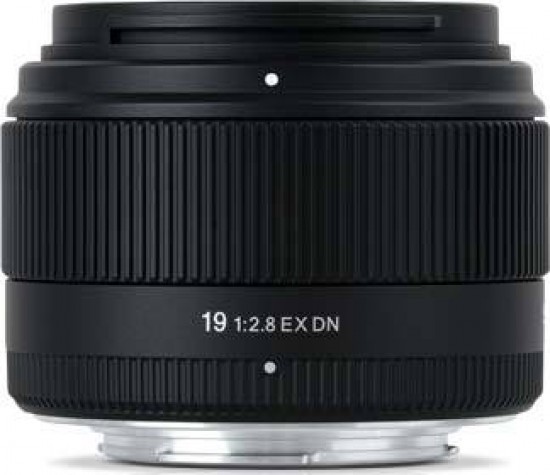

The Sigma 19mm f/2.8 EX DN lens

Weighing in at a mere 140 grams, the plastic-bodied Sigma 19mm f/2.8 EX DN is very lightweight. It's substantially longer than the rival Panasonic Lumix G 20mm f/1.7 ASPH pancake lens, though, and also strangely bigger than the 30mm lens that Sigma launched at the same time. As seen in the photos below, it complements a mid-sized Micro Four Thirds camera like the Olympus E-PL1 well.

The Sigma 19mm f/2.8 EX DN lens mounted on an Olympus E-PL1

The Sigma 19mm f/2.8 EX DN lens mounted on an Olympus E-PL1

The Sigma 19mm f/2.8 EX DN lens mounted on an Olympus E-PL1

Build quality is pretty decent for what is a consumer lens. Most of the outer parts are plastic - contributing to the light weight of the lens - but the optical elements are made of high-grade glass. The focus ring is quite wide and ridged.

Front of the Sigma 19mm f/2.8 EX DN lens

In terms of features, the Sigma 19mm f/2.8 EX DN offers all the basics that you need from a prime lens. The main exception is the lack of built-in Vibration Reduction, although the fast maximum aperture of f/2.8 makes up for this to some extent.

Front of the Sigma 19mm f/2.8 EX DN lens, isometric view

Focusing is usefully internal and manual focusing is possible when set on the specific camera body. The Sigma 19mm f/2.8 EX DN lens may have a lot of plastic parts, but the lens mount is, thankfully, made of metal.

Rear of the Sigma 19mm f/2.8 EX DN lens

Surprisingly given its price, the Sigma 19mm f/2.8 EX DN ships with a good quality soft case, but sadly no lens hood. It accepts 46mm filters.

Focal Range

At the 19mm focal length the angle of view is 59.3 degrees for Micro Four Thirds cameras and 75.3 degrees for Sony E-Mount.

  Field of view at 19mm

Focusing

The Sigma 19mm f/2.8 EX DN lens has quite a wide focus ring. There are no hard stops at both ends of the range, making it a little more difficult to set focus at infinity. Polariser users should be pleased that the 46mm filter thread doesn't rotate on focus.

When it comes to auto-focusing, the Sigma 19mm f/2.8 EX DN zoom is a quick performer, taking about 0.2 seconds to lock onto the subject when mounted on the Panasonic Lumix DMC-GF3 that we tested it with.

We didn't experience much "hunting", either in good or bad light, with the lens accurately focusing almost all of the time. It's also a quiet performer, thanks to the newly developed linear AF motor which makes this lens well-suited to video recording.

Chromatic Aberrations

Chromatic aberrations, typically seen as purple or blue fringes along contrasty edges, can be detected in some shots but they are not very prominent at all.

Light Fall-off

With the lens set to its maximum aperture, there is a bit of light fall-off in the extreme corners, but it won't really affect your real-world shots.

Light fall-off

Macro

The Sigma 19mm f/2.8 EX DN isn't claimed to be a macro lens, but it delivers a pretty good performance nonetheless. It has a minimum focusing distance of 20cm/7.9in and a maximum magnification ratio of 1:7.4. The following example demonstrates how close you can get to your subject, in this case a Compact Flash memory card.

Close-up performance

Bokeh

Bokeh is a word used for the out-of-focus areas of a photograph, and is usually described in qualitative terms, such as smooth / creamy / harsh etc. In the Sigma 19mm f/2.8 EX DN lens, Sigma employed an iris diaphragm with seven rounded blades, which has resulted in nice bokeh in our view. We do realise, however, that bokeh evaluation is subjective; so we've included several 100% crops for your perusal.

Sharpness

In order to show you how sharp this lens is, we are providing 100% crops on the following pages.
