Nikon 1 J3 Review

4.0
February 22, 2013 | Mark Goldstein |

Introduction

The Nikon 1 J3 is the new mid-range model in Nikon's compact system camera line-up. The J3 offers more megapixels, a smaller and lighter body, and a more simplified control layout than its predecessor, the 4-month-old J2. Read our in-depth Nikon 1 J3 review now...

The Nikon 1 J3 is a compact system camera featuring a new 14.2-megapixel “CX” format sensor and the Nikon 1 lens mount. Boasting continuous shooting speeds of 15fps with continuous autofocus and 60fps with fixed-point autofocus, Full 1080p HD video capture, an ultra-fast hybrid auto-focus system, Best Moment Capture and the unique Motion Snapshot Mode, the Nikon J3 also offers more conventional shooting modes like Programmed Auto, Aperture and Shutter Priority, as well as Metered Manual. Also on-board is a high resolution 3-inch LCD display with 921k dots, an electronic shutter and a built-in pop-up flash. The Nikon 1 J3 is available in white, black, silver, red and champagne and is priced at $599.95 / £579.99 / €719.00 with a 10-30mm zoom lens, or $849.95 / £719.99 / €899.00 in a double-lens kit with the 10-30mm and 30-110mm zoom lenses.

Ease of Use

The Nikon 1 J3 is mostly made out of aluminium with magnesium alloy reinforced parts and is therefore heavier than you would think based on its size alone, weighing in at 201g for the body only (36g lighter than its predecessor, the J2). It also feels better made than the official product shots would have you believe. With an essentially grip-less design, the Nikon J3 is very much a two-handed affair that requires you to hold the camera's weight in the left hand, clutching the lens, and use your right hand for balance and operating the controls. This is actually a good thing as it forces you to pay attention to holding the camera properly, which in turn goes a long way towards avoiding shake-induced blur in your photos.

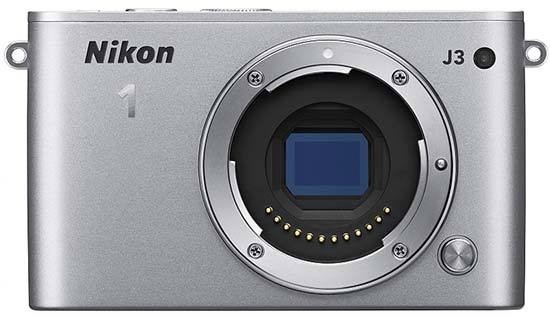

The camera's has an even cleaner, more minimalist front plate than the J2, dominated by the Nikon 1 lens mount. Instead of being a scaled-down version of the good old F mount, it's a completely new design that provides 100% electronic communication between the attached lens and the camera body, courtesy of a dozen contacts. Just like on the manufacturer's F-mount SLR cameras, there is a white dot for easy lens alignment, although it has moved from the 2 o'clock position (when viewed front on) to the top of the mount. The lenses themselves feature a short silver ridge on the lens barrel, which needs to be in alignment with said dot in order for you to be able to attach the lens to the camera. While this may require a bit of getting used to, it actually makes changing lenses quicker and easier.

With no lens attached, you can see the sensor sitting right behind the plane of the bayonet mount. The sensor is the same 14 megapixel images as used by the flagship J3 model. Measuring 13.2x8.8mm this "CX" format imaging chip has double the surface area of the biggest imagers used in compact and bridge cameras like the Fujifilm X20 and S100FS, but only about half the area of a standard Four Thirds sensor. In linear terms, a Four Thirds chip has a 1.36x longer diagonal than the Nikon CX imager. Given that Four Thirds has a 2x focal length multiplier, the CX "crop factor" works out to about 2.72, meaning that a 10mm lens has approximately the same angle of view as a 27.2mm lens on an FX or 35mm film camera. The Nikon 1 Nikkor 10-30mm standard zoom is thus equivalent to a 27.2-81.6mm (or, practically speaking, 28-80mm) FX lens in terms of its angle-of-view range.

The rest of the Nikon J3's faceplate is almost empty, featuring only the lens release button and an AF assist/self-timer lamp. There's no grip at all on the smooth front of the Nikon 1 J3.

Nikon 1 J3 Nikon 1 J3
Front Rear

There are two ways of powering on the Nikon 1 J3. You can either use the on/off button sitting next to the shutter release or, if you have a collapsible-barrel zoom lens attached, you can simply press the unlocking button on the lens barrel and turn the zoom ring to unlock the lens, an act that causes the camera to switch on automatically. This is an ingenious solution as you need to unlock the lens for shooting anyway. Start-up takes just over a second - nothing to write home about but still decent and entirely adequate.

You can frame your shots using the rear screen - there's no electronic viewfinder as on the J3 model, a key difference between the two. The LCD screen is a three-inch, 921,000-dot display (the same screen that the J2 used) that boasts wide viewing angles, great definition and accurate colours and improved visibility in strong daylight. We missed an EVF when using the J3, as holding the camera up to eye-level helps to stabilise the lens and avoid camera shake.

The control layout is rather peculiar. The Nikon 1 J3 has a small, top-mounted mode dial that lacks most of the shooting modes that are usually found on similar dials - most notably P, A, S and M - even though it has enough room to accommodate them. These modes are available on the J3 but you have to dive into the rather long-winded and not entirely logical menu to find them. The J3's mode dial now has five settings, Motion Snapshot, Best Moment Capture, green Auto Photo for beginners, the Creative mode, and Video.

The four-way controller on the rear also has four functions mapped onto its Up, Right, Down and Left buttons; including the "F" function, exposure compensation, flash mode and self-timer, respectively. Although this isn't a bad choice of functions, the fact that there is no ISO button will doubtlessly cause a lot of photographers interested in buying the Nikon J3 to be unhappy.

Nikon 1 J3 Nikon 1 J3
Front Side

Sadly the "F" button isn't a programmable function button, but it does change operation depending upon which shooting mode you're using. In the Creative mode, it allows you to quickly choose between the various shooting modes, while in Video mode it lets you toggle between regular and slow-motion recording.

The J3 has a a scroll wheel around the four-way pad which is used to set the shutter speed in Manual and Shutter Priority modes (once you've found them in the menu, that is). Last but not least, there are three small buttons around the navigation pad, flush against the rear panel of the camera, including Playback, Menu and Delete.

The Auto Photo mode, marked with a green camera icon, is for beginners, with a much reduced set of options on offer (image quality, image size and continuous). The Nikon J3's Scene Auto Selector is a smart auto mode in which the camera analyses the scene in front of its lens and picks what it thinks is the right mode for that particular scene. The Creative Mode is where you will want to be most of the time. With the mode dial set to this position, you can pick your desired exposure mode from the menu. You can also choose one of the conventional PASM modes, which give you full menu access and the ability to manually set the aperture, shutter speed, or both (Program AE Shift is available in P mode). ISO and white balance can also be manually selected, but only from the menu, as already mentioned.

Of course there's AWB and auto ISO as well, with the latter coming in three flavours (Auto 160-800, 160-3200 or 160-6400) allowing you to specify how high you want the camera to go when the light gets low. You can also choose from three AF Area modes, including Auto Area, in which the camera takes control of what it focuses on (this isn't a great mode to have as your default as the camera obviously can't read your mind and may focus on something else than your actual subject); Single Point, in which you can pick one of 135 AF points by first hitting OK and then moving the active AF point around the frame using the four-way pad; and Subject Tracking, in which you pick your subject, press OK and allow the camera to track that subject as it moves around, as long as it doesn't leave the frame of course.

Nikon 1 J3 Nikon 1 J3
Pop-up Flash Top

The Nikon 1 J3 has an intriguing hybrid auto-focus system that combines contrast- and phase-difference detection in a similar fashion as the Fujifilm F300EXR did. This allows the Nikon 1 J3 to focus extremely quickly in good light, even on a moving subject. The company claims the Nikon 1 system cameras are the fastest-focusing machines in the world, and this matches our experience - as long as there's enough light. When light levels drop, the camera switches to contrast-detect AF which, though faster than on most cameras, isn't nearly as fast as the other method. It's always the camera that decides which AF method to use - the user has no influence on this.

Generally speaking, the J3 will usually only resort to contrast detection when light levels are low. In good light, we were able to take sharp photos of fast-moving subjects. The Nikon J3 certainly does not disappoint here. Manual focusing is also possible, although the Nikon 1 lenses do not have focus rings. If you want to focus manually, you first have to hit the AF button, choose MF, press OK and then use the scroll wheel to adjust focus. To assist you with this, the Nikon J3 magnifies the central part of the image and displays a rudimentary focus scale along the right side of the frame - but those are the only focusing aids you get. There's no peaking function available as on some rival models.

The J3 has an electronic shutter (the J3 also has a mechanical shutter). It's completely silent (the focus confirmation beep can be disabled from the menu) and allows the use of shutter speeds as fast as 1/16,000th of a second and, with the Electronic Hi setting selected, lets you shoot full-resolution stills at 60 frames per second. Note however that while this is a major achievement, it's limited by a buffer that can only hold 20 raw files. Additionally, the use of this mode precludes AF tracking - you have to lower the frame rate to 10fps if you want that -, and the viewfinder goes blank while the pictures are being taken. About the only application we can think of where shooting full-resolution stills at 60fps could really come in handy is AE bracketing for HDR imaging. At this rate, a series of 5 bracketed shots could be taken in less than 0.1 second, rendering small movements that can otherwise pose alignment problems - like leaves being blown in the wind - a non-issue. Alas, the Nikon J3 does not offer such a feature - in fact it does not offer autoexposure bracketing at all.

The Nikon 1 J3 can be set to shoot Full HD video footage, and you even get to choose from 1080p at 30fps or 1080i at 60fps, depending on whether you prefer to work with progressive or interlaced video. If you don't need Full HD, there's also 720p at 60fps, which is really smooth and still counts as high definition. Secondly, you get full manual control over exposure in video mode. This is an option; you don't have to shoot in M mode but you can if that's what you need. Thirdly, you get fast, continuous AF in video mode, and it works well, especially in good light. Movies are compressed using the H.264 codec and stored as MOV files. There are separate shutter release buttons for stills and video, and thanks to this - as well as the massive processing power of the Nikon J3 - you can take multiple full-resolution stills even while recording HD video. This works in the other way round too - you can capture a movie clip even when the mode dial is in the Still Image position, simply by pressing the red movie shutter release. We found that in this case the camera will invariably record the video at 720p/60fps.

Nikon 1 J3 Nikon 1 J3
Memory Card Slot Battery Compartment

In addition to being capable of shooting regular movies in HD quality, the Nikon 1 J3 can also shoot video at 400fps for slow-motion playback. The resolution is lower and the aspect ratio is an ultra-widescreen 2.67:1, but the quality is adequate for YouTube, Vimeo and the like. These videos are played back at 30fps, which is more than 13x slower than the capture speed of 400fps, allowing you to get creative and show the world an array of interesting phenomena that happen too quickly to observe in real time. The Nikon J3 goes even further by offering a 1200fps video mode, but the resolution and overall quality is too poor for that to be genuinely useful.

There are two Best Moment Capture modes, with the F button toggling between them. Smart Photo Selector allows the camera to capture no less than 20 photos at a single press of the shutter release, including some that were taken before fully depressing the button. The J3 analyses the individual pictures in the series and discards 15 of them, keeping only the five that it thinks are best in terms of sharpness and composition. This feature can be genuinely useful when photographing fast action and fleeting moments. The Slow View mode captures up to 40 full-resolution continuous shots and displays them in slow motion on the LCD screen, making it easier for you to select the exact moment that you want to keep from the burst sequence.

In the innovative Motion Snapshot mode the J3 records a brief high-definition movie - whose buffering starts at a half-press of the shutter release, so again includes events that had happened before the button was fully depressed - and also takes a still photograph. The movie and the still image are now saved in a single MOV file, making them much easier to share than on the J2.

The Nikon J3 stores photos and videos on SD/SDHC/SDXC memory cards, and supports the fastest UHS-I speed class. The camera runs on a smaller EN-EL20 battery to its V2 big brother, and is consequently capable of producing considerably less shots on a single charge, managing around 230, although it does help to make the camera body more compact. The camera's tripod socket is made of metal and is positioned in line with the lens' optical axis. This also means that changing batteries or cards is not possible while the J3 is mounted on a tripod, as the hinges of the battery/card compartment door are too close to the tripod mount.
