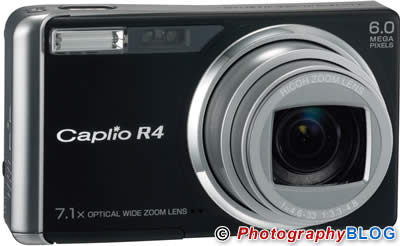

Ricoh Caplio R4

February 23, 2006 | Mark Goldstein | Digital Compact Cameras , PMA Show 2006 | Comment |

Ricoh Caplio R4PMA 2006: The Ricoh Caplio R4 is announced today. 6 megapixels, 7x zoom lens, 2.5 inch LCD screen, Vibration Correction function. The Ricoh R4 will be available from March for £249.99.

Ricoh UK Press Release

London –UK February 23rd 2006. – Ricoh has announced the release of the new Caplio R4 compact digital camera featuring a 7.1x optical wide zoom, (28–200 mm in 35 mm camera format), the largest in the compact class* and vibration correction function. With a smaller body, the new Ricoh R4, has a 7.1x (28—200 mm) wide-angle, high-powered zoom lens, the biggest in its class. Building on the highly successful R3, the new Ricoh R4 boasts 6 megapixels, longer battery life and a high resolution LCD. The R4 will be available in both Black and Silver.

Main Features of the Caplio R4

New 6.04 million square pixel CCD.
- Often used icons can be enlarged for greater visibility.
- The brightness of the LCD can be increased to maximum with a single touch and visibility can be adjusted to suit well-lighted areas.
- The CCD is effective up to 6.04 million square pixels with the Smooth Imaging Engine image processing system. Combined with the vibration correction function, representative, superior, high-definition images can be created.
- It is possible to select a 35mm aspect ratio (the horizontal to vertical ratio of the image) of 3:2.

The long-life rechargeable battery, a standard accessory, lets you shoot approx. 330 pictures.
- Thanks to the power-saving features of the internal circuit, it is possible to capture up to 330 separate images under CIPA standards using the standard accessory rechargeable battery even while using the large LCD display. (310 pictures for the Caplio R3).

New improved 2.5-inch large-scale LCD, with 150,000-pixel resolution.
- The Caplio R4 has an easy-to-see 2.5-inch large-scale LCD monitor with improved resolution (150,000 pixels compared to 110,000 for the Caplio R3).
- During playback, 12 pictures can be displayed simultaneously on the large screen. While checking previous and subsequent pictures, the screen can be separated into three parts to allow fast forwarding and rewinding.
- Often used icons can be enlarged for greater visibility.
- The brightness of the LCD can be increased to maximum with a single touch and visibility can be adjusted to suit well-lighted areas.

7.1x wide zoom lens, largest in its class, in a lightweight 135g, 26mm body!
- The newly developed Double Retracting Lens System, allows part of the lens assembly to protrude from the camera body during lens storage. This enables the body, a mere 26 mm, to have a 28–200 mm 7.1x wide zoom lens.
- The highly versatile Caplio R4 delivers outstanding results in practically any photographic situation, whether it’s capturing a panoramic landscape in one shot, wide-angle images in a room where everything is very close, or the fine details of distant objects.

Vibration Correction function, based on a CCD shift method.
- Whenever it detects excessive camera motion, the vibration correction system, based on a newly developed CCD shift method, moves the CCD in the opposite direction to counterbalance camera shake, resulting in sharp pictures that would have been blurred otherwise.
- As it is not necessary to incorporate the vibration correction system into the lens, many lens design options, were available, facilitating the design of a slim body and a wide to long telephoto range lens.
- The Caplio R4 shows its effectiveness best in high-powered telephoto, macro, or indoor shots without using flash. Once again the vibration correction system allows for sharp images that would not be possible otherwise.

The macro function, a Ricoh specialty, has been further strengthened.
- The camera’s macro mode, can take a macro shot of an object from just 1 cm away.
- The zoom macro function automatically sets the focal distance of the lens at the optimum distance for capturing an image of each object as large and close as possible.
- If AF Target Selection is used, it is even possible to focus on objects within the frame without moving the camera. By determining the optimum field of view, taking into consideration such information as the size or contrast of the object, focusing accuracy becomes that much higher when shooting in macro.

High-speed response capability enables stress-free shooting.
- Release time lag (the time from the instant the shutter button is fully pressed—without using focus lock—until exposure actually starts) is as fast as approx. 0.09 seconds on average. Quick responses are essential in order to capture picture-perfect but near-instantaneous moments such as the expressions and movement of children or pets. Now stress-free, near-instantaneous shots are possible.
- Time calculated from the instant the focus is locked (half-press) until exposure actually starts is a miraculous 0.007 seconds on average.
- Shooting interval and start time are both rapid, approx. 0.5 and 1.1 seconds, respectively (measured while the flash is off).

The skew correction function.
- Through an original algorithm, which automatically detects trapezoids in images and corrects them to rectangles, images of such things as blackboards, documents, or time schedules shot at any angle can be corrected so that the image looks as though it were shot from the front. The camera is most effective in business environments where blackboards, overhead projector, OHPs, time schedules, signs, etc. cannot be shot from the front.

A design combining style with portability
- The design combines functionality and texture with such features as a comfortable grip, easy-to-use controls, high-grade materials, surface finishing, and a compact body of 95.0 mm (W) x 53.0 mm (H) x 26.0 mm (D).

Price and Availability
The Caplio R4 will be available from March RRP £ 249.99 inc

Caplio R4 Major Specifications

CCD Effective 6.04 million square pixels (6.04 million pixels), 1/2.5-inch primary colour CCD
Lens Focal length f4.6-33 (equivalent to 28-200mm for 35mm cameras. When setting Step Zoom, six fixed possible steps: 28mm, 35mm, 50mm, 85mm, 135mm, and 200mm)
Brightness (F value) F 3.3 (W)-4.8 (T)
Vibration correction function CCD shift method
Zoom Optical 7.1x zoom, Digital 3.6x zoom
Object Distance approx. 0.3m-? (Wide), approx. 1.0m-? (Telephoto) Macro: approx. 0.01m-? (Wide), approx. 0.14m-? (Telephoto)

?8, 4,2,1-1/2000 sec.???

?1/30-1/2000 sec.
Resolution (pixels)

?2816 x 2112?2784 x 1856?2048 x 1536?1280 x 960?640 x 480

2816 x 2112?2048 x 1536

320 x 240?160 x 120
Picture Mode*1
F(Fine)/N (Normal)
ISO Sensitivity AUTO/64,100,200,400,800
? Auto/ Red-Eye Reduction/ Mandatory Flash/ Slow Synchro/ Flash Off
Flash Range*2: approx. 0.2m-2.4m (Wide), approx. 0.14m-1.8m (Telephoto) (ISO: AUTO)
Focus Auto Focus/ Manual Focus/ Snap/ ? (includes AF auxiliary light)
Exposure Adjustment TTL-CCD method photometric system: Multi (256 segments)/ Centre weight/ Spot
Exposure Compensation Manual Compensation (+2.0?-2.0EV in 1/3EV steps) Auto Bracket Function (-0.5EV.±0.+0.5EV)
White Balance Auto/ Fixed (Daylight, Overcast, Tungsten light, Tungsten light 2, Fluorescent, Manual)
Recording Media SD Memory Card (3.3V 32,64,128,256,512MB, 1GB)/Multi Media Card, Internal Memory (26MB)
Storage Capacity*3
(No. of Pictures)
(Internal 26MB Memory ?Still?2816 x 2112 (F: 13,N: 22), 2784 x 1856 (F: 14) 2048 x 1536 (F: 18,N36), 1280 x 960 (F: 33,N63), 640x480(N: 277)
Storage Capacity
(Internal 26MB Memory)
?Motion? 1 minute 17 seconds (320x240, 15frames/second), 4minutes 38 seconds*4 (160x120, 15 frames/second), 39 seconds (320x240, 30frames/second), 2minutes 26 seconds (160x120, 30 frames/second)
?Sound? 56 minutes 45 seconds *5
Storage Capacity
(File Sizes)
(Internal 26MB Memory) ?Still??2816 x 2112 F: approx. 1.83MB N: approx. 1.06MB, 2784 x 1856 F:1.63MB, 2048 x 1536.F: approx. 1.31MB N: approx. 672KB,1280 x 960 F: approx. 686KB N: approx. 356KB,640 x 480 N: approx. 83KB
Recording Mode Still (Continuous, S-Continuous, M-Continuous), Scene Mode (Portrait, Sports, Distant Landscape Night Scene, Text, High Sensitivity, Zoom Macro, Skew correction), Motion, Sound
Recording Format

Compressed: JPEG (Exif ver. 2.21) DCF*6compliant, DPOF support

TIFF (MMR system ITU-T.6)

AVI (Open DML Motion JPEG Format compliant)

?WAV (Exif ver.2.21 ? law)
LCD Monitor 2.5 inch Translucent Amorphous Silicon TFT LCD (approx. 114,000 pixels)
Self Timer Operating Time: approx. 10 sec./ 2 sec.
Interval Timer Shooting interval: 5 sec. – 3 hours (in 5 sec. increments) *7
PC Interface USB1.1 Choice of Ricoh original or Mass Storage driver*8
AV Interface Audio Out/ Video Out
Video Signal Method NTSC/PAL switchable
Dimensions (W x D x H) 95.0mm(W) x26.0mm (D) x53.0mm (H) (excluding projections)
Weight Approx. 135g (without battery, Hand strap)
Accessories approx. 30g (Rechargeable battery, Hand strap)
Battery Rechargeable Battery (DB-60), AC adaptor (AC-4c, optional accessories)
Shooting Capacity*9 Based on CIPA Standard: using the DB-60, approx. 310 pictures
Operating Temperature 0?40 ??

*1: Only N (Normal) is available for 640×480 size; only F (Fine) is available for 2592x1728 size
*2: When the flash range is set for ISO AUTO or ISO 400
*3: Average number of still images it is possible to record.
*4: Maximum recording time of 168 min. 30 sec. is possible with a 1GB SD card.
*5: Maximum recording time of 2063 min. 25 sec. is possible with a 1GB SD card.
*6: DCF is the abbreviation of JEITA standard “Design rule for Camera File system”. (It does not guarantee perfect inter-camera compatibility.)
*7: With flash OFF
*8: Mass Storage driver is compatible with Windows Me/2000/XP, Mac OS9, and OSX10.2-10.4
?  It is not compatible with Windows 98/98SE or Mac OS8.6,
*9: Battery performance was measured using CIPA-standard parameters. Actual performance may vary according to usage conditions and the brand of the battery.
