Canon Digital IXUS 120 IS Review

October 12, 2009 | Gavin Stoker | Rating star Rating star Rating star Rating star


The Canon Digital IXUS 120 IS (also known as the PowerShot SD940 IS Digital ELPH) is the slimmest ever IXUS / ELPH camera. Measuring 20mm thick, the 12 megapixel Canon 120 IS compact camera also offers a 4x optical zoom lens with an wide 28mm setting and Optical Image Stabilization, 2.7 inch LCD screen, 720p HD video with an HDMI output connection, Smart Auto mode with Scene Detection Technology, and a useful Hints & Tips feature for beginners. Available in four colours - black, blue, brown or silver - the Canon Digital IXUS 200 IS is out now for £299.00 / €349.00 / $299.99.

Ease of Use

Long before they went DSLR and super zoom crazy, consumers were buying cute little credit card sized Canon Digital IXUS compacts, offspring of its short-lived APS film camera range. Almost ten years down the line since their introduction, the latest, most compact incarnation of the IXUS is with us in the elegantly designed 120 IS - that suffix indicating optical image stabilization, with three user selectable anti shake modes offered.

This 12.1 megapixel model been heralded by its manufacturer as its slimmest wide-angle lens compact to date at 20mm in depth; so - following the original principle of the panoramic print producing APS range - could this be the perfect pocket camera for travelers to capture those natural vistas in glorious detail?

Here how the camera looks is as equally (if not more) important as how it handles and ultimately performs. From the beginning the IXUS family has been as much about fashion and form as internal feature set - style in perfect equilibrium with substance - and so, 28mm 4x optical zoom lens aside (equivalent to 28-112mm), the Canon Digital IXUS 120 IS predictably comes with a choice of different body colours: black, blue, brown or silver, thankfully subtly rather than garishly implemented.

We had the attractive chocolate brown in for testing, which, when sitting on the desk in front of us, had us subconsciously craving the sweet stuff. So is the 120 IS really good enough to eat?

At £299 it's not exactly the cheapest dish for those with an appetite for a reliable, beginner-friendly snapper for their handbag or top pocket. But then the metal-bodied IXUS range has always positioned itself as a premium brand that users might aspire to owning. And, with battery and card loaded, the latest Canon offering feels reassuringly weighty in the palm despite a body only weight of just 120g, and likewise well constructed, mixing metal and well-disguised plastic to winning effect.

Despite the small form factor, Canon has provided an adequately large 2.7-inch, 230k dot resolution LCD screen at the rear of the 120 IS (up from the IXUS 100 IS' 2.5-inches) for composing and reviewing shots in the absence of a traditional viewfinder like the one found on its predecessor. The screen on its own works well, though sunlight still proves an occasional nemesis.

In common with competitors the camera offers its own take on intelligent auto functionality pioneered on Panasonic's Lumix compact range - here named Smart Auto mode with Scene Detection technology. This enables users to simply point and shoot, the camera recognizing scenes and subjects then adjusting its parameters accordingly so all the photographer has to do is fully depress the shutter release button to go on and take the shot.

Canon Digital IXUS 120 IS Canon Digital IXUS 120 IS
Front Rear

At this beginner friendly end of the market, that's arguably all you want: a camera that takes usable images with the minimum of fuss and user input. Further hand holding features include the expected face detection, auto red eye removal plus blink detection - flagging up the fact that your subject has their eyes closed so you can take a replacement shot at the time - plus 'hints and tips' prompts within the provided on-screen menus.

Built in motion detection technology also purports to detect movement of camera and subject, boosting ISO settings accordingly (up to ISO1600 offered here) to prevent blurred images. The Canon range staple feature of iContrast likewise makes an appearance to ensure images don't suffer from blown highlights or overly dark foreground detail when faced with tricky exposures. For those interested in close ups and still life photography, the camera's macro mode allows focus as close as 3cm from a subject - again more than adequate given the IXUS' intended audience of 'status seekers'.

Video you say? Well the Canon Digital IXUS 120 IS provides high definition footage, even if at 1280x720 pixels rather than the Full HD 1920x1080. Unusually though - and as with its 100 IS predecessor - there's a port for HDMI (High Definition Multimedia Interface) provided alongside the regular USB/AV out port.

It's not all good news though. The optical zoom isn't accessible when shooting movies, pressing its toggle switch will only effect an equivalent 4x digital zoom, the lens itself staying put. So by using it you're compromising on quality. Approximately 10 minutes of HD footage will fit on a 4GB card, frame rate a commendably smooth 30 frames per second (fps).

With the Digic 4 processor on board the Canon Digital IXUS 120 IS proves a zippy performer. With a press of the small, recessed top plate power button the camera readies itself for action in just under two seconds, writing images to optional SD or SDHC media cards in a tad under three, with, unusually, no internal capacity - however modest - to fall back on. Post-capture the screen momentarily freezes displaying the captured image. The camera takes a moment or two to determine focus exposure, AF point highlighted in green with a beep of affirmation when it has done so. So, neither particularly quick nor slow but perfectly adequate for its class.

At the front, as with its forebears, the camera is an exercise in minimalism - metal surface silky smooth to the touch and lens barrel squirreled away within the body when inactive - whilst at the same time recalling 'classic' IXUS design of the series' APS incarnation. But while it looks similar to the previously released IXUS 100 IS, it's not its doppelganger.

Top right of the lens is a thin lozenge shaped sliver of a window housing the integral flash - its location meaning it's in danger of being obscured by a finger when holding the camera in both hands - whilst below is a barely discernable pin prick housing the built-in microphone.

Directly above the optic is a porthole-shaped window housing the indicator light for the self-timer/AF assist lamp. Other than that, and the forward protruding 'lip' of the zoom lever surrounding the shutter release button on the top plate, the IXUS maintains its 'clean' lines, a gentle curve to the surface running from left to right, top to bottom.

Canon Digital IXUS 120 IS Canon Digital IXUS 120 IS
Front Top

The top plate of the Canon Digital IXUS 120 IS is similarly fuss free yet sophisticated; controls on our brown review sample set into a darker coloured strip that encircles the exterior of the camera so that none of the buttons actually protrude and spoil this IXUS' straight lines.

Indeed, as we noted in our review of the IXUS 100 IS earlier this year, the shutter release button has had one of its rounded corners tapered to 'fit' the narrower depth. It's encircled by a spring loaded zoom lever with a small lip protruding to the front where it falls handily under the pad of your forefinger for quick operation. The zoom itself responds quickly yet smoothly as regards the transition from wide angle to maximum telephoto - a process taking two seconds at most.

Moving along the top plate to the left we find the aforementioned much smaller on/off power button, and, to the left again, a row of three holes for the camera's built-in speaker. While the left hand side of the camera - if viewed from the back - is devoid of any features apart from small screws top and bottom, the right hand side adds merely a means of attaching a wrist strap. This again apes its predecessor in the 100 IS.

Things get slightly more interesting with an examination of the back plate, dominated as expected by that aforementioned 2.7-inch LCD monitor, which provides an image slightly on the warm side. I didn't really miss the lack of an optical viewfinder this time around, since on the IXUS 100 IS it was small and murky. The rear controls themselves - though small - are still sufficiently large to ensure operation remains fluid.

The top right hand corner of the IXUS' back plate features a clever incorporation of A/V out, USB and HDMI connections, in that the plastic cover protecting them forms part of the design, flipped open by your thumbnail and then clicked firmly back into place.

Beneath this is a three-notch slider switch for the Canon Digital IXUS 120 IS's various shooting modes, easily operated by your thumbnail, that mirrors that provided on the previously released IXUS 100 and 110 IS cameras. Running from top to bottom are the unit's aforementioned 'smart' auto mode, regular program auto and, lastly, video mode. It's the only control on the camera back that isn't neatly flush to the body.

Neatly mirroring the shape and size of this control, and ranged to the left, is a familiar playback button, while below is a four way directional control pad for tabbing through menu options and captured images, with a familiar Canon function/set button at its centre.

Press the latter when in basic auto shooting mode and a minimal icon-led toolbar appears down the left hand side of the screen, instead of the L-shaped toolbar of previous generation models. Here we get the chance to influence image size and resolution and that's it. Flick the slider switch down a notch to program shooting mode however and many more user selectable options present themselves.

Canon Digital IXUS 120 IS Canon Digital IXUS 120 IS
Memory Card Slot Battery Compartment

Here you can tab down from program and select one of the camera's additional built-in scene modes. Each time one of the options - from portraits to kids and pets, fireworks, aquarium and ISO3200 equivalent low light mode - is highlighted, a small box of text appears alongside instructing the user as to the benefits of and uses for the proposed settings. So there's nothing to confuse beginners here.

Scene modes aside, also user selectable in program mode are the usual suspects: ISO settings (ISO80-1600), white balance, drive mode (single shot or continuous shooting), metering (evaluative, centre weighted or spot) plus Canon's regular 'My Colors' modes that allow the user to switch to optimal settings for more vivid colour, neutral, sepia, black and white, positive film, lighter skin tone, darker skin tone, vivid blue, vivid green or vivid red and finally a custom colour setting that can be adjusted to the user's preference.

Returning to the control pad just below the mode switch, we find located at north, south, east and west points are, in that order, a means of adjusting exposure compensation (+/- 2EV), while next, at the bottom of the pad, is a means of deleting unwanted images, or selecting the self-timer options. The ability to choose from the flash settings (auto, on, slow synchro, off) and switch focus from infinity to macro (and back) complete the package.

Beneath these, again features shared with the IXUS 100 IS, are a self-explanatory final pairing of buttons - marked 'display' (with a press turning off the shooting icons littering the screen) and 'menu' respectively. Pressing the latter brings up two folders on-screen - the first containing the shooting menu, the second the more general purpose set up menu.

The first folder offers ability to activate the digital zoom, call up grid lines or a 3:2 format ratio guide on screen, activate i-Contrast, image stabilisation modes (continuous, shoot only, active when panning, or off), plus face and blink detection.

The second available folder contains the set up menu, offering the ability to tweak various sound and start up options - unlike previous generations of Digital IXUS, there's not a rather unnecessary separate menu folder for doing this - plus format the SD or SDHC card in use. The more experienced user can also turn off the aforementioned 'hints and tips' speech bubbles if they prove too much as well as manually adjust LCD brightness or reset all settings.

The base of the camera meanwhile features a standard screw thread for attaching this IXUS to a tripod, plus a sliding door protecting both the SD/SDHC card port (with no internal memory to fall back on) and slender build rechargeable lithium ion battery, good for an underwhelming but not disastrous 220 shots from a single charge - a fraction better than the IXUS 100 IS' 210 images.

With style at the forefront of the marketing push for the Canon Digital IXUS 120 IS, does the camera show an equal emphasis on substance when it comes to what really counts; namely the images produced? Read on for more…

Image Quality

All of the sample images in this Review were taken using the 12 megapixel JPEG setting, which gives an average image size of around 3.5Mb.

There are some great new £299 pocket cameras around at the moment from all the major manufacturers, and with a very similar level of specification. So does the Canon do enough to justify the expense, and your patronage in the face of so many alternative options? Something looking this good on the outside must have a compromised performance, right?

Nobody is going to be expecting DSLR-like quality here and happily the IXUS 120 IS' combination of lens and sensor captures a good level of detail on a par with what you'd expect from a pocket snapper. If results are not the sharpest ever they're still more than merely usable.

Left on default settings colours are naturalistic, exposures are even, and with blue skies and plenty of early autumn sunshine around we were able to achieve some pleasing results without having to dive into the 'My colours' effects settings for added warmth or visual oomph.

Inevitably there is some slight evidence of pixel fringing between areas of high contrast, visible when zooming right into an image, but this is par for the course with this class of camera Canon is far from the worst offender. And in any event, most users wouldn't even notice - certainly not when printing out 6x4s or 8x10s.

In terms of low light performance, starting lower than most point and shoot compacts courtesy of an ISO 80 setting, the IXUS 120 IS does rather well, keeping noise at low levels until ISO 800 and delivering a relatively 'clean' shot also at ISO 1600 setting, albeit with an overall softening of detail. At top ISO 3200 setting - selected by tabbing through the scene modes - definition is beginning to ebb away, but it's comparable to results we've seen at ISO 1600 on lesser models, so still a setting worth having.

So, while pictures are obviously not match for those from bridge cameras nor DSLRs, for an undemanding yet style conscious audience wanting a very portable snapper, the IXUS 120 IS pretty much ticks all the boxes.


There are 7 ISO settings available on the Canon Digital IXUS 120 IS. Here are some 100% crops which show the noise levels for each ISO setting.

ISO 80 (100% Crop)

ISO 100 (100% Crop)


ISO 200 (100% Crop)

ISO 400 (100% Crop)


ISO 800 (100% Crop)

ISO 1600 (100% Crop)


ISO 3200 (100% Crop)



Here are two 100% crops which have been Saved as Web - Quality 50 in Photoshop. The right-hand image has had some sharpening applied in Photoshop. The out-of-the camera images are just a little soft at the default sharpening setting. You can change the in-camera sharpening level if you don't like the default look.

Original (100% Crop)

Sharpened (100% Crop)


Chromatic Aberrations

The Canon Digital IXUS 120 IS handled chromatic aberrations quite well during the review, with some purple fringing present around the edges of objects in high-contrast situations, as shown in the examples below.

Example 1 (100% Crop)

Example 2 (100% Crop)


The Canon Digital IXUS 120 IS allows you to focus on a subject that is 3cms away from the camera. The first image shows how close you can get to the subject (in this case a compact flash card). The second image is a 100% crop.

Macro Shot

100% Crop


The flash settings on the Canon Powershot SX20 IS are Auto, Manual Flash On / Off, Slow Sync Speed and Red-eye Reduction. These shots of a white coloured wall were taken at a distance of 1.5m.

Flash Off - Wide Angle (28mm)

Flash On - Wide Angle (28mm)

ISO 64 ISO 64

Flash Off - Telephoto (112mm)

Flash On - Telephoto (112mm)

ISO 64 ISO 64

And here are some portrait shots. As you can see, neither the Flash On or the Red-eye-Reduction settings caused any red-eye.

Flash On

Flash On (100% Crop)

Red-eye Reduction

Red-eye Reduction (100% Crop)


The Canon Powershot SX20 IS's maximum shutter speed is 15 seconds, which is great news if you're seriously interested in night photography. The shot below was taken using a shutter speed of 1 second at ISO 800. I've included a 100% crop of the image to show what the quality is like.

Night Shot

Night Shot (100% Crop)

Sample Images

This is a selection of sample images from the Canon Digital IXUS 120 IS camera, which were all taken using the 12 megapixel JPEG setting. The thumbnails below link to the full-sized versions, which have not been altered in any way.

Sample Movie & Video

This is a sample movie at the quality setting of 1280 x 720 pixels at 30 frames per second. Please note that this 33 second movie is 96.9Mb in size.

Product Images

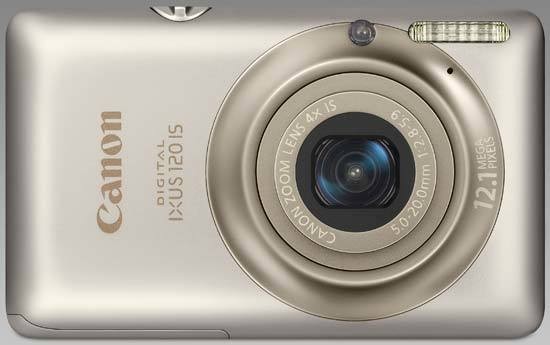

Canon Digital IXUS 120 IS

Front of the Camera

Canon Digital IXUS 120 IS

Front of the Camera / Lens Extended

Canon Digital IXUS 120 IS

Isometric View

Canon Digital IXUS 120 IS

Isometric View

Canon Digital IXUS 120 IS

Rear of the Camera

Canon Digital IXUS 120 IS

Rear of the Camera / Image Displayed

Canon Digital IXUS 120 IS

Top of the Camera

Canon Digital IXUS 120 IS

Bottom of the Camera

Canon Digital IXUS 120 IS

Side of the Camera


Canon Digital IXUS 120 IS

Side of the Camera

Canon Digital IXUS 120 IS
Memory Card Slot
Canon Digital IXUS 120 IS
Battery Compartment


Those looking for a portable, well-built, eye-catching snapshot model with a smattering of cappuccino bar style for weekend breaks or social events could do worse than check out Canon's Digital IXUS 120 IS.

While its asking price would buy a competing compact with more actual creative features, a much bigger lens and broader focal range - if wanted - that's not really what this camera is about. It's not so much a photographic tool as a lifestyle accessory.

That said, it does feature most of the latest photographic essentials - intelligent auto, or rather 'smart' capture, plus face detection, blink detection and all the rest, and unusual but pleasantly surprising to find a 'grown up' HDMI out port on what's otherwise an entry-level compact.

Though intuitive to use anyway, there's an added degree of user friendliness provided by the hints and tips text bubbles, helping along any first timers confused about how selecting various shooting and menu options might benefit their photography.

And, though we noticed our review sample sadly picking up a couple of surface scratches from being transported through the two-week test period, if looked after the otherwise sturdily built camera should provide several years of service.

Another welcome addition to the Canon family then, if not much of a radical departure from the existing IXUS 100 IS model, thus reflected in our test score.

4 stars

Ratings (out of 5)
Design 5
Features 4
Ease-of-use 4
Image quality 4
Value for money 3.5

Review Roundup

Reviews of the Canon Digital IXUS 120 IS from around the web. »

It's been a busy year for Canon. Take the gorgeous new Digital IXUS 120 IS. Look familiar? If so, that's because it's visually almost identical to its predecessor, the IXUS 100 IS, which was launched in Canon's spring collection just seven months ago. And while the touchscreen-wielding 200 IS, the other new face in the IXUS lineup, delivers innovation in a subtly quirky design, the 12.1-megapixel 120 IS is all about looks.
Read the full review » »

A follow-up of sorts to the SD780 IS, the Canon PowerShot SD940 IS is another very small, very lightweight 12-megapixel camera. It drops the SD780's optical viewfinder, and in its place gets a larger 2.7-inch LCD in back, and a wide-angle 28mm-equivalent lens with a 4x zoom in front. Aside from a couple minor interface tweaks, everything else basically stays the same; this includes the earlier model's mixed performance and tendency to produce purple fringing. However, neither is extreme for this class of camera, and all things considered, the SD940 IS is one of the best ultracompacts available.
Read the full review »





1/2.3” CCD

Effective Pixels


Colour Filter Type

Primary Colour



DIGIC 4 with iSAPS technology



Focal Length

5.0 – 20.0 mm (35mm equivalent: 28 – 112mm)


Optical 4x. Digital approx. 4x¹ (with Digital Tele-Converter approx. 1.5x or 2.0x and Safety Zoom ²)¹. Combined approx. 16x

Maximum f/number

f/2.8 – f/5.9


6 elements in 5 groups (1 double sided UA element, 1 single sided UA element)

Image Stabilisation

Yes (shift-type)




AF System/ Points

AiAF (Face Detection / 9-point), 1-point AF (fixed to centre)

AF Modes

Single, Servo AF/AE¹

AF Point Selection

Size (Normal, Small)

AF Lock

On/Off Selectable

AF Assist Beam


Closest Focusing Distance

3cm (W) from front of lens in macro



Metering modes

Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot (centre)

AE Lock

On/Off Selectable

Exposure Compensation

+/- 2 EV in 1/3 stop increments.
i-Contrast for automatic dynamic range correction

ISO sensitivity*

AUTO, 80, 100, 200, 400, 800, 1600



1 - 1/1500 sec (factory default)
15 - 1/1500 sec (total range - varies by shooting mode)






Auto (including Face Detection WB), Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom



2.7” PureColor LCD II (TFT), approx. 230,000 dots




Adjustable to one of five levels. Quick-bright LCD




Auto, Manual Flash On / Off

Slow Sync Speed


Red-Eye Reduction


Flash Exposure Compensation

Face Detection FE

Flash Exposure Lock


Built-in Flash Range

30cm-4.0m (W) / 50cm-2.0m (T)

External Flash

Canon High Power Flash HF-DC1



Auto*, P, Portrait, Night Snapshot, Kids & Pets, Indoor, Sunset, Fireworks, Long Shutter, Beach, Underwater, Aquarium, Foliage, Snow, ISO 3200¹, Digital Macro, Color Accent, Color Swap, Stitch Assist, Movie. *with Scene Detection Technology and Motion Detection Technology

Photo Effects

My Colors (My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, Custom Color)

Drive modes

Single, Continuous, Self-Timer, FaceSelf-Timer

Continuous Shooting

Approx. 0.8 shots/sec.¹ (until memory card becomes full)²



Image Size

(L) 4000 x 3000, (M1) 3264 x 2448, (M2) 2592 x 1944, (M3) 1600 x 1200, (S) 640 x 480, (W) 4000 x 2248. Resize in playback (M3, S, 320 x 240)


Fine, Normal


(HD) 1280 x 720, 30fps, (L)640 x 480, 30fps, (M)320 x 240, 30fps

Movie Length

(HD) Up to 4GB or 10 min. 0 sec¹
(L and M) Up to 4GB or 1 hour²


Still Image Type

JPEG compression, (Exif 2.2 [Exif Print] compliant) / Design rule for Camera File system, Digital Print Order Format [DPOF] Version 1.1 compliant


MOV [H.264 + Linear PCM (monaural)]



Canon Printers

Canon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge (ID Photo Print, Fixed Size Print and Movie Print supported on SELPHY CP & ES printers only)




Red-Eye Correction

Yes, during shooting and playback

My Camera / My Menu

Start-up image and camera sounds customisation

My Category

Image tagging feature

Intelligent Orientation Sensor




Playback Zoom

Approx. 2x – 10x

Self Timer

Approx. 2 or 10 sec., Custom or FaceSelf-Timer

Menu Languages

English, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Simplified Chinese, Chinese (traditional), Japanese, Russian, Portuguese, Korean, Greek, Polish, Czech, Hungarian, Turkish, Thai, Arabic, Ukrainian, Romanian, Farsi




Hi-Speed USB (MTP, PTP) dedicated connector (Mini-B compatible)


HDMI Mini Connector. A/V output (PAL/NTSC)



SD, SDHC, MMC, MMCplus, HC MMCplus



PC & Macintosh

Windows XP SP2-3 / Vista (including SP1-2)
Mac OS X v10.4 - 10.5


Browsing & Printing

ZoomBrowser EX / ImageBrowser






Rechargeable Li-ion Battery NB-4L (battery and charger supplied)

Battery life

Approx. 220 shots¹
Approx. 360 min. playback

A/C Power Supply

Optional, AC adapter kit ACK-DC10


Cases / Straps

Soft Leather Case DCC-1200 Digital IXUS Metal or Leather Strap

Waterproof / Weatherproof Case

Waterproof Case (40m) WP-DC33, Waterproof Case Weight WW-DC1


High Power Flash HF-DC1

Power Supply & Battery Chargers

AC Adapter Kit ACK-DC10


Canon HDMI Cable HTC-100



Operating Environment

0 – 40 °C, 10 – 90% humidity

Dimensions (WxHxD, excl. protrusions)

89.5 x 54.9 x 20.0mm

Weight (body only)

Approx. 120g


¹ Digital zoom available for still image and standard movie modes only. Optical zoom may not be available during movie recording.
² Depending on the image size selected.

AF Modes

¹ Some settings limit availability


¹ Recording pixels fixed at 1600 x 1200 (ISO 3200 Mode) and 1824 x 1368 (Low Light Mode).

Continuous Shooting

¹ Under conditions where the flash does not fire.
² Depending on memory card speed / capacity / compression setting.

Movie Length

¹ The following Speed Class memory cards are required for maximum record
