Canon EOS 1100D Review

March 24, 2011 | Mark Goldstein | Rating star Rating star Rating star Rating star Half rating star

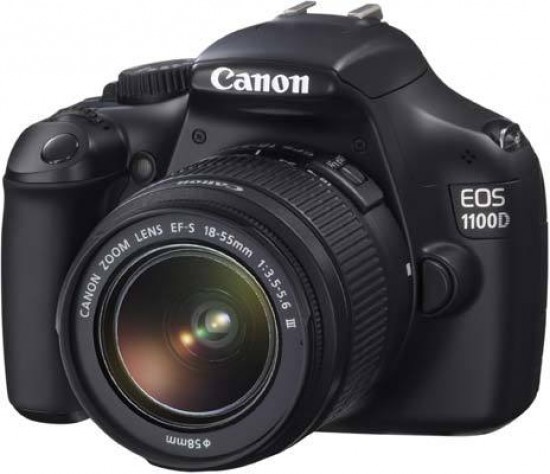

The Canon EOS 1100D (also known as the Digital Rebel T3) is the new entry-level model in Canon's extensive range of digital SLR cameras, replacing the 3 year old 1000D model. Aimed at first-time DSLR users, the 1100D inherits features from both the equally new and more expensive EOS 600D and the previous 1000D. It has a 12 megapixel CMOS sensor, 2.7 inch LCD screen, 3fps continuous shooting mode, 9 autofocus points, 63-zone iFCL exposure metering, ISO 100-6400 sensitivity, on-screen Feature Guide, and 720p HD video capture.

The Canon EOS 1100D is priced at £419.99 / €499.99 body only, £459.00 / €549.00 with the non-stabilised EF-S 18-55mm f/3.5-5.6 III lens, £499.99 / €599.99 / $599 with the new EF-S 18-55mm f/3.5-5.6 IS II lens, and £459.00 / €549.00 with the 18-55mm f/3.5-5.6 III lens.

For the first time for an EOS camera, the 1100D is also available in 3 different colours other than black - red, silver and brown - all with the EF-S 18-55mm f/3.5-5.6 IS II lens. The red EOS 1100D is available exclusively from Comet in early April 2011, priced at £499.00 / €599.00. The silver EOS 1100D is available exclusively from Jessops in early April 2011, priced at £499.00 / €599.00. The brown EOS 1100D is available exclusively from Harvey Norman's in Ireland in early April 2011, priced at £499.00 / €599.00.

Ease of Use

The Canon EOS 1100D / Rebel T3 is a small and light DSLR camera with an all-plastic shell, weighing in at just under 500g with the battery and memory card fitted and measuring 129.9 x 99.7 x 77.9 mm. In terms of build quality, the Canon EOS 1100D / T3 feels more than solid enough for an entry-level DSLR, on par with the more expensive 600D but as you'd expect not in the same league as the semi-professional EOS 60D and 7D models. It has a narrow, mildly uncomfortable hand-grip that unfortunately doesn't have any textured surface to aid your grip, with the entire body finished in an appealingly glossy but rather too smooth finish. Like all of Canon's APS-C digital SLR cameras, the EOS 1100D / T3 is compatible with the manufacturer's entire line-up of lenses, including both EF and EF-S glass. When changing lenses, EF lenses need to be aligned with the red dot on the lens mount, whereas EF-S lenses must be aligned with the white mark.

The 1100D's control layout is actually very similar to the 600D, with a few changes that for the most part make more sense for the beginner target audience. Virtually all of the important controls are located together at the right-hand side of the rear of the camera, rather than more liberally scattered around the body, which allows for a more straight-forward transition from compact to DSLR. Taking advantage of the extra room allowed by the smaller, fixed LCD screen, the buttons are also larger than on the 600D, again another subtle and effective concession to the 1100D's market. All of the buttons are clearly labelled but, being flush to the body, can be a little hard to press at times. We did miss the 600D's top-mounted ISO control, though, which has been rather inexplicably replaced by the release button for the pop-up flash.

The EOS 1100D has a rather small (2.7 inch) and low-resolution (230k dot) fixed LCD screen, one of the main ways that it achieves its budget price-point. The bright Pentamirror optical viewfinder offers 95% coverage of the scene, 0.80x magnification and dioptre control for glasses wearers. Depth of Field Preview is available when assigned to the SET button via Custom Function 8-5.

Canon EOS 1100D Canon EOS 1100D
Front Rear

We tested the EOS 1100D with the original EF-S 18-55mm f/3.5-5.6 IS lens, which offers a fairly standard focal range for a kit lens and crucially includes image stabilisation. This is important for Canon, as competitors like Sony, Olympus and Pentax all offer image stabilisation in their DSLRs. The difference between Canon (and Nikon) and the others is that Sony, Olympus and Pentax have opted for stabilisation via the camera body, rather than the lens, which therefore works with their entire range of lenses. Canon's system is obviously limited by which lenses you choose, but it does offer the slight advantage of showing the stabilising effect through the viewfinder. Canon and Nikon also claim that a lens-based anti-shake system is inherently better too, but the jury's out on that one.

The EOS 1100D's top-mounted shooting mode dial has a multitude of letters and icons. The so-called Creative Zone features Programmed Auto (P), Shutter Priority (Tv), Aperture Priority (Av), Manual (M) and A-DEP modes. The first four of these need no explanation, but A-DEP might be new to those who have never used a Canon SLR camera before. The abbreviation stands for Automatic Depth of Field, as in this mode, the camera will pick an f-stop that allows all the subjects covered by the nine AF points to be sharply rendered, and will also calculate and set the necessary shutter speed on its own.

There's a regular Full Auto mode rather than the cleverer fully-automatic Scene Intelligent Auto mode that the 600D offers, something that we would have liked to have seen featured on this camera too, and it also lacks the 600D's range of creative filters. The 1100D does have the same Creative Auto mode, though, which allows you to change a few key settings using the LCD screen via a simple slider system for changing the aperture and exposure compensation, or Background and Exposure as the camera refers to them. Creative Auto has been extended with the introduction of Basic +. Essentially a more extreme version of the well-established Picture Styles, this offers nine options including Standard, Vivid, Soft, Warm, Intense, Cool, Brighter, Darker and Monochrome, all of which can be interactively tweaked to suit your taste.

There's a host of scene modes including Flash Off, Portrait, Landscape, Sports, Night Portrait and, oddly enough for an interchangeable-lens camera, a close-up mode as well. The majority of these scene modes allow users who do not want to fiddle with shutter speeds, f-stops, white balance or ISO settings to let the camera know what type of photo they are about to take, which helps the EOS 1100D / T3 to optimise these settings for that particular subject. We struggled to see the point of the close-up mode though, as the quality of one's close-up shots depends more on the use of the right kinds of accessory - such as a macro lens and possibly a ring flash - than any camera setting. The new Feature Guide in the EOS 1100D’s menu system usefully provides a brief description of each setting and its effect.

Canon EOS 1100D Canon EOS 1100D
Front Side

In the Creative Zone, the photographer gets to set a lot of shooting variables, including white balance, sensitivity, AF mode, exposure compensation, drive mode and so on. Most of these functions have their own dedicated buttons on the back of the camera, while others can be set on the interactive status screen accessible via the Q (quick control) button. Examples for the latter include file quality settings, metering mode, flash exposure compensation and Auto Lighting Optimiser.

The available white balance settings are Auto, Daylight, Shade, Cloudy, Tungsten, Fluorescent, Flash and Custom; there is no way to enter a Kelvin value manually. You can fine-tune any of the presets using the White Balance Correction feature. The ISO speed can be changed by pressing the ISO button and turning the control wheel or using the arrow buttons on the navigation pad. You do not have to hold down the button while changing the setting. The ISO speed can be set from ISO 100 to ISO 6,400 in full-stop increments, and Auto ISO is also available. The chosen ISO speed is also displayed in the viewfinder.

The EOS 1100D / T3 offers a range of three auto focus modes (One Shot, AI Focus and AI Servo) and there's a 9-point AF module with a cross-type centre point and eight line-type AF sensors. One Shot AF is equivalent to AF-S, while AI Servo is the same thing as AF-C on other manufacturers' models. AI Focus is similar to what some other camera makers call AF-A in that it automatically switches from One Shot AF to AI Servo if a still subject starts moving. As regards AF point selection, it can be done manually by hitting the AF point selector button first, then using the four-way controller to select the AF point. The chosen/active AF point lights up in red in the viewfinder. In use, we have found the AF system to be pretty quick even with the kit lens, although the focus motor was a bit loud for our tastes (not surprisingly, given that the 18-55mm IS lens does not have USM).

There are a number of drive modes available on the Canon EOS 1100D / T3. These include Single Shot, Continuous Shooting, Self-timer and Remote Controlled Shooting. In Continuous Shooting mode, the camera can take pictures at a speed of 3 frames per second for up to 830 Large Fine JPEGs or 2fps for up to 5 RAW files. This is slower than the EOS 600D, especially if you're shooting in RAW, although the massive 830 shot buffer for JPEGs should cover most eventualities!

Canon EOS 1100D Canon EOS 1100D
Top Pop-up Flash

The metering modes offered by the camera include Evaluative, Centre-weighted and Partial, which uses 10% of the frame area - the 1100D doesn't have a spot metering option. In use, we found that the Evaluative metering mode provided fairly good exposures with a variety of subjects, thanks to the advanced 63-zone metering sensor. When shooting contrasty scenes, it is worth using the Evaluative mode in conjunction with the Auto Lighting Optimiser feature, accessible by hitting the Q button and using the interactive status panel.

The Live View button is within easy reach of your right thumb. Using this button it is easy to enter Live View, but it takes a surprising amount of time for the camera to actually display the live image (think several seconds). A grid line display and very useful live histogram can be enabled to help with composition and exposure, and you can zoom in by up to 10x magnification of the image displayed on the LCD screen. Focusing in Live View is achieved via a half-press of the shutter release as for normal shooting.

There are three auto focus options in Live View, including Quick, Live and Face Detection. The use of the Quick mode briefly interrupts the live view feed as the mirror is momentarily lowered so that the AF sensors can be engaged, and it also involves a lot of mirror slapping for the same reason. Live mode circumvents this problem by employing a contrast-detect method. While this is slower, and sometimes it may still take up to three seconds for the camera to lock focus in this mode, we found that about half a second was enough most of the time. This is still too slow for anything that moves - use the optical finder and the regular auto focus module for that type of shooting - but it is perfectly OK with still subjects. Obviously, you can also opt to focus manually, and as noted above, you can even magnify into the live image by up to 10x, which allows very accurate focusing.

Live View is also used for the Canon EOS 1100D / T3's movie mode. There's a choice of 24 or 30fps when shooting video at 720p 1280x720 pixels. Note that the available frame rates are also dependent on what you have set in the menu under "Video system": NTSC or PAL. If you turn the mode dial to the position denoted by the movie camera icon, the camera will enter Live View automatically. Before you start filming, you need to focus on the subject either manually or using auto focus as described above. You can't set the aperture, shutter speed and ISO manually as on the 600D, with the camera only offering automatic exposure control, but you can still use functions like AE lock and exposure compensation if you feel a need for it.

Canon EOS 1100D Canon EOS 1100D
Memory Card Slot Battery Compartment

Once everything is set up, you start filming by hitting the Live View/Record button on the back of the camera. The EOS 1100D / T3 will not automatically adjust focus during filming, but you can choose to initiate auto focus at any time while recording a clip. However, be warned that this can do more harm than good, as the microphone can pick up the sound of the focus motor, and the subject might even go out of focus for a few seconds. Setting a small aperture and relying on depth of field for focus is a better idea. Of course you may wish to utilise the DSLR's ability to produce footage with a shallow depth of field, but in that case, it might be a wise idea to purchase a couple of third-party accessories that make manual focusing and focus pulling easier.

The EOS 1100D's has a built-in pop-up flash with a guide number of 9.2 at ISO 100, coverage up to 17mm focal length, X-sync speed of 1/200sec and a recycle time of 2 seconds. There's also the expected hotshoe for use with one of Canon's external flashguns. There is a built-in microphone for mono recording, but you can't connect an external microphone for stereo recording. The HDMI port allows you to connect the EOS 1100D directly to an HDTV set. One notable omission is the lack of the EOS integrated cleaning system, which means that you'll need to manually clean the camera's sensor more often, something that we suspect most of the EOS 1100Ds owners will not even attempt.

The camera runs on a proprietary LP-E10 battery which, according to measurements that conform with CIPA standards, provides enough power for an impressive 750 images when using the optical viewfinder. The battery can be charged in the supplied LC-E10(E) charger. Also in the box is a neck strap, a software CD and a user manual, which Canon thankfully provides in printed form, in several languages.

Despite its budget price-tag, the Canon EOS 1100D / Rebel T3 is a responsive and intuitive DSLR that offers many of the key features of its bigger and more expensive sibling, the 600D / T3i, in a smaller and lighter body. This concludes our evaluation of the EOS 1100D's ergonomics, handling, feature set and performance. Let's take a look at its Image Quality next.

Image Quality

All of the sample images in this Review were taken using the 12 megapixel Fine JPEG setting, which gives an average image size of around 5Mb.

The Canon EOS 1100D produced images of excellent quality during the review period. This camera produces noise-free images at ISO 100 all the way up to ISO 1600, with some noise appearing at ISO 3200 and more at the fastest setting of 6400. Image stabilisation via the kit lens is a feature that helps the EOS 1100D keep up with its competitors, and one that works very well when hand-holding the camera in low-light conditions or when using the telephoto end of the zoom range. The Canon EOS 1100D dealt very well with chromatic aberrations, with limited purple and cyan fringing effects appearing only at the edges of the photo in high contrast situations.

The 12 megapixel images were a little soft straight out of the camera at the default sharpening setting and ideally require some further sharpening in an application like Adobe Photoshop, or you can change the in-camera setting. The built-in flash worked well indoors, with no red-eye and good overall exposure. The night photograph was very good, with the maximum shutter speed of 30 seconds and Bulb mode allowing you to capture enough light in all situations.


ISO sensitivity can be set between ISO 100 and ISO 6400 in full-stop increments. Here are some 100% crops which show the noise levels for each ISO setting, with JPEG on the left and the RAW equivalent on the right. The RAW files were developed with Canon's Digital Photo Professional (, using the software's default settings and noise reduction set to 0.



ISO 100 (100% Crop)

ISO 100 (100% Crop)


ISO 200 (100% Crop)

ISO 200 (100% Crop)


ISO 400 (100% Crop)

ISO 400 (100% Crop)


ISO 800 (100% Crop)

ISO 800 (100% Crop)


ISO 1600 (100% Crop)

ISO 1600 (100% Crop)


ISO 3200 (100% Crop)

ISO 3200 (100% Crop)


ISO 6400 (100% Crop)

ISO 6400 (100% Crop)

File Quality

The Canon EOS 1100D / Rebel T3 has 2 different JPEG file quality settings available, including Fine and Normal, with Fine being the higher quality option. Here are two 100% crops which show the quality of the two options.

Fine (4.33Mb) (100% Crop) Normal (2.17Mb) (100% Crop)
RAW (15.8Mb) (100% Crop)


The out-of-camera JPEGs are quite soft and at the default sharpening setting and benefit from some further sharpening in a program like Adobe Photoshop. You can also change the in-camera sharpening level to suit your tastes via the Picture Style options.

Original (100% Crop)

Sharpened (100% Crop)


Chromatic Aberrations

The EF-S 18-55mm f/3.5-5.6 IS kit lens handled chromatic aberrations well during the review. The examples shown here at 100% represent the absolute worst results you can expect from this lens mated to the EOS 1100D / T3.

Example 1 (100% Crop)

Example 2 (100% Crop)


The flash settings on the EOS 1100D / T3 are Auto, Manual Flash On/Off, and Red-Eye Reduction. These shots of a white coloured wall were taken at a distance of 1m.

Flash Off - Wide Angle (29mm)

Flash On - Wide Angle (29mm)

ISO 64 ISO 64

Flash Off - Telephoto (88mm)

Flash On - Telephoto (88mm)

ISO 64 ISO 64

And here are a couple of portrait shots. As you can see, neither the Flash On setting nor the Red-Eye Reduction option caused any amount of red-eye.

Flash On

Flash On (100% Crop)

Red-eye Reduction

Red-eye Reduction (100% Crop)


The Canon EOS 1100D's maximum shutter speed is 30 seconds and there's a Bulb mode for even longer exposures, which is excellent news if you're seriously interested in night photography. The shot below was taken using a shutter speed of 30 seconds, aperture of f/8 at ISO 100. Here is a 100% crop of the image to show what the quality is like.

Night Shot

Night Shot (100% Crop)

Image Stabilisation

The Canon EOS 1100D's EF-S 18-55mm f/3.5-5.6 IS kit lens offers image stabilisation, which allows you to take sharp photos at slower shutter speeds than with lenses that lack this function. To test this, I took 2 handheld shots of the same subject with the same settings. The first shot was taken with Image Stabilisation turned off, the second with it turned on. Here are two 100% crops of the images to show the results. As you can see, with Image Stabilisation turned on, the images are much sharper than with anti-shake turned off. This feature really does seem to make a difference and could mean capturing a successful, sharp shot or missing the opportunity altogether.

Shutter Speed / Focal Length

Anti Shake Off (100% Crop)

Anti Shake On (100% Crop)

1/5th / 88mm

Picture Controls

Canon's Picture Controls are preset combinations of different sharpness, contrast, saturation and colour tone settings. The available Picture Controls are shown below in the following series, which demonstrates the differences. You can tweak these Picture Controls to your liking, and there are also User Defined styles so that you can create your own look.







Creative Auto

Creative Auto has been extended with the introduction of Basic +. Essentially a more extreme version of the well-established Picture Styles, this offers nine options including Standard, Vivid, Soft, Warm, Intense, Cool, Brighter, Darker and Monochrome, all of which can be interactively tweaked to suit your taste.










Auto Lighting Optimizer

Auto Lighting Optimizer performs in-camera processing to even out the contrast and correct brightness. There are now 4 different settings - Off, Low, Standard and Strong.





Highlight Tone Priority

Highlight Tone Priority is a custom function (C.Fn-5), which can be enabled from the menu. Use of this custom function improves highlight detail by expanding the camera's dynamic range in the highlights. To test the effectiveness of this function, I photographed the same high-contrast scene in M mode at ISO 200 (the lowest sensitivity setting available with Highlight Tone Priority enabled), exposing for open shade. As you can see from these examples, Highlight Tone Priority reduced the extent of highlight blow-out considerably. The 100% crops also reveal that highlight detail was better retained and defined.



Peripheral Illumination Correction

Peripheral Illumination Correction, first seen in the EOS 500D, is an in-camera solution designed to reduce the effect of light fall-off in the image corners. It works, though the difference is not night and day.



Sample Images

This is a selection of sample images from the Canon EOS 1100D camera, which were all taken using the 12 megapixel Fine JPEG setting. The thumbnails below link to the full-sized versions, which have not been altered in any way.

Sample RAW Images

The Canon EOS 1100D enables users to capture RAW and JPEG format files. We've provided some Canon RAW (CR2) samples for you to download (thumbnail images shown below are not 100% representative).

Sample Movie & Video

This is a sample movie at the highest quality setting of 1280x720 pixels at 25 frames per second. Please note that this 10 second movie is 35.6Mb in size.

Product Images

Canon EOS 1100D

Front of the Camera

Canon EOS 1100D

Front of the Camera / Flash Raised

Canon EOS 1100D

Front of the Camera / Lens Removed

Canon EOS 1100D

Front of the Camera

Canon EOS 1100D

Isometric View

Canon EOS 1100D

Isometric View

Canon EOS 1100D

Isometric View

Canon EOS 1100D

Rear of the Camera / Turned Off

Canon EOS 1100D

Rear of the Camera / Image Displayed

Canon EOS 1100D

Rear of the Camera / Info Screen

Canon EOS 1100D

Rear of the Camera / Main Menu

Canon EOS 1100D

Rear of the Camera / Live View Mode

Canon EOS 1100D

Top of the Camera

Canon EOS 1100D
Bottom of the Camera
Canon EOS 1100D

Side of the Camera

Canon EOS 1100D

Side of the Camera

Canon EOS 1100D

Front of the Camera

Canon EOS 1100D

Front of the Camera

Canon EOS 1100D

Memory Card Slot

Canon EOS 1100D

Battery Compartment


The EOS 1100D / T3 is a great entry-level DSLR camera that's well-suited to its beginner target audience. The combination of proven metering, auto-focus and processing systems with a sensible 12 megapixel sensor and simplified control layout is a winning one. There are some notable downsides - the low-resolution LCD screen, lack of an integrated cleaning system, too smooth hand-grip, no spot metering mode, no manual video settings, and the puzzling omission of Scene Intelligent Auto mode - but the EOS 1100D / T3 ultimately delivers great image quality with the minimum of fuss at a very competitive price.

The small body, large buttons and intuitive external controls, Creative Auto mode and on-screen Feature Guide make the EOS 1100d more appealing to owners of compacts looking to upgrade to a DSLR, but we'd also have liked to see an integrated cleaning system and the Scene Intelligent Auto mode included too, both features which would have made this camera even more beginner-friendly. On the other hand, the EOS 1100D / T3 offers a number of key features that have made their way down the EOS range, most notably the 63-zome metering, 9-point AF system and Digic 4 processor, which help to make this a reliable and responsive camera.

The sensible 12 megapixel CMOS sensor may not make any headlines, but it does result in a very usable ISO range of 100-6400, with only the top setting really suffering from objectionable levels of noise. 720p video is another conservative choice, with no manual control over exposure and no auto-focusing during recording, but it does provide a solid enough introduction to the world of movie-making. We would have liked to have seen a higher-resolution LCD screen, though, with the 2.7 inch, 230K fixed screen looking rather under-specced compared to the competition and also the next model up the Canon range.

It's pretty hard to complain, however, when less than £500 / $600 buys you a DSLR camera with a standard zoom lens, which is easy and quick to operate, has most of the features that you'll actually use everyday, and delivers excellent image quality even in low light. The Canon EOS 1100D / T3 is in many ways a bigger leap forward than the 600D model that was announced at the same time, bringing a compelling DSLR experience to a much wider audience. Highly Recommended!

4.5 stars

Ratings (out of 5)
Design 4.5
Features 4
Ease-of-use 4.5
Image quality 4.5
Value for money 4.5

Review Roundup

Reviews of the Canon EOS 1100D from around the web. »

The Canon EOS 1100D, or Canon Rebel T3 as it's known Stateside, is the latest entry-level DSLR to come from Canon's stable since the Canon EOS 1000D (Rebel XS). It's been almost three years since then, so has Canon crammed enough new features into it's latest? The What Digital Camera Canon EOS 1100D (Rebel T3) review takes a look...
Read the full review »


Type 22.2 x 14.7mm CMOS
Effective Pixels Approx. 12.2M
Total Pixels Approx. 12.6M
Aspect Ratio 3:2
Low-Pass Filter Built-in/Fixed with fluorine coating
Sensor Cleaning Manual cleaning and Dust Delete Data acquisition
Colour Filter Type Primary Colour
Type DIGIC 4
Lens Mount EF/EF-S
Focal Length Equivalent to 1.6x the focal length of the lens
Type TTL-CT-SIR with a CMOS sensor
AF System/ Points 9 AF points (f/5.6 cross type at centre)
AF Working Range EV 0 - 18 (at 23°C & ISO100)
AF Modes AI Focus
One Shot
AI Servo
AF Point Selection Automatic selection, Manual selection
Selected AF Point Display Superimposed in viewfinder and indicated on LCD monitor
Predictive AF Yes up to 8m¹
AF Lock Locked when shutter button is pressed half way in One Shot AF mode
AF Assist Beam Intermittent firing of built-in flash or emitted by optional dedicated Speedlite
Manual Focus Selected on lens, default in Live View Mode
AF Microadjustment No
Metering Modes TTL full aperture metering with 63-zone SPC
(1) Evaluative metering (linked to all AF points)
(2) Partial metering at center (approx. 10% of viewfinder)
(3) Center weighted average metering
Metering Range EV 1-20 (at 23°C with 50mm f/1.4 lens ISO100)
AE Lock Auto: In 1-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in creative zone modes
Exposure Compensation +/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB)
AEB 3 shots +/- 2 EV, 1/2 or 1/3-stop increments
ISO Sensitivity* AUTO (100-6400), 100-6400 (in 1-stop increments)
Type Electronically-controlled focal-plane shutter, with electronic first curtain
Speed 30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
Type Auto white balance with the imaging sensor
Settings AWB, Daylight, Shade, Cloudy, Tungsten, White
Fluorescent light, Flash, Custom.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/Green +/-9
Custom White Balance Yes, 1 setting can be registered
WB Bracketing +/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias
Type Pentamirror
Coverage (Vertical/Horizontal) Approx. 95%
Magnification Approx. 0.80x¹
Eyepoint Approx. 21mm (from eyepiece lens center)
Dioptre Correction -2.5 to +0.5 m-1 (dioptre)
Focusing Screen Fixed
Mirror Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter)
Viewfinder Information AF information: AF points, focus confirmation light
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light
Image information: Highlight tone priority (D+), monochrome shooting, maximum burst (1 digit display), White balance correction, SD card information
Depth of Field Preview Yes, assigned to SET button with C.Fn-8-5
Eyepiece Shutter On strap
Type 6.8cm (2.7") TFT, approx. 230k dots
Coverage Approx. 100%
Viewing Angle (Horizontally/Vertically) Approx 170°
Brightness Adjustment Adjustable to one of seven levels
Display Options (1) Quick Control Screen
(2) Camera settings
Built-in Flash GN (ISO 100, meters) 9,2
Built-in Flash Coverage Up to 17mm focal length (35mm equivalent: 27mm)
Built-in Flash Recycle Time Approx. 2 seconds
Modes Auto, Manual Flash On/off
Red-Eye Reduction Yes - with red eye reduction lamp
X-Sync 1/200sec
Flash Exposure Compensation +/- 2EV in 1/2 or 1/3 increments
Flash Exposure Bracketing Yes, with compatible External Flash
Flash Exposure Lock Yes
Second Curtain Synchronisation Yes
HotShoe/ PC Terminal Yes/ -
External Flash Compatibility E-TTL II with EX series Speedlites,
wireless multi-flash support
External Flash Control Via camera menu screen
Modes Auto, Portrait, Landscape, Close-up, Sports, Night Portrait, No Flash, Creative Auto, Program AE , Shutter priority AE, Aperture priority AE, Manual, A-DEP
Picture Styles Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)
Colour Space sRGB and Adobe RGB
Image Processing Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Auto Correction of Lens Peripheral illumination
Basic+ (Shoot by ambience selection, Shoot by lighting or scene type)
Drive Modes Single, Continuous, Self timer (2s, 10s, 10s + continuous shots 2-10)
Continuous Shooting Max. JPEG Approx. 3fps for approx. 830 images¹
Max. RAW Approx 2fps for up to approx. 5 images²
Type Electronic viewfinder with image sensor
Coverage Approx. 100% (horizontally and vertically)
Frame Rate 30 fps
Focusing Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Quick mode, Live mode
Metering Real-time evaluative metering with image sensor
Active metering time can be changed
Display Options Grid overlay, Histogram
Still Image Type JPEG: Fine, Normal (Exif 2.30 compliant) / Design rule for Camera File system (2.0),
RAW: RAW (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant
RAW+JPEG Simultaneous Recording Yes, RAW + Large JPEG
Image Size JPEG: (L) 4272x2848, (M) 3088x2056, (S1) 2256x1504, (S2) 1920x1280, (S3) 720x480
RAW: 4272x2848
Movie Type MOV (Video: H.264, Sound: Linear PCM)
Movie Size 1280 x 720 (29.97, 25 fps)
Movie Length Max duration 17min, Max file size 4GB
Folders New folders can be manually created and selected
File Numbering (1) Consecutive numbering
(2) Auto reset
(3) Manual reset
Custom Functions 10 Custom Functions with 32 settings
Metadata Tag User copyright information (can be set in camera)
Image rating (0-5 stars)
Intelligent Orientation Sensor Yes
Playback Zoom 1.5x - 10x enabled in 15steps
Display Formats (1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) Jump Display
Slide Show Autoplay: All images, repeat
Histogram Brightness: Yes
RGB: Yes
Highlight Alert Yes (Shooting information display only)
Image Erase/Protection Erase: Single image, Checkmarked images, Unprotected images
Protection: Erase protection of one image at a time
Menu Categories (1) Shooting menu (x4)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) My Menu
Menu Languages 25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese
Firmware Update Update possible by the user.
Computer Hi-Speed USB
Other Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible)
Canon Printers Canon SELPHY Printers, Bubble Jet Printers with the direct print function and PIXMA Printers supporting PictBridge
PictBridge Yes
Type SD card, SDHC card or SDXC card
PC & Macintosh Windows XP inc SP3 / Vista inc SP1 and SP2 (excl. Starter Edition) / 7 (excl. Starter Edition)
OS X v10.4-10.6
Browsing & Printing ZoomBrowser EX / ImageBrowser
Image Processing Digital Photo Professional
Other PhotoStitch, EOS Utility (inc. Remote Capture), Picture Style Editor
Batteries 1 x Rechargeable Li-ion Battery LP-E10
Battery Life Approx. 700 (at 23°C, AE 50%, FE 50%)¹
Approx. 650 (at 0°C, AE 50%, FE 50%)
Battery Indicator 4 levels
Power Saving Power turns off after 30sec or 1, 2, 4, 8 or 15mins.
Power Supply & Battery Chargers AC Adapter Kit ACK-E10, Battery charger LC-E10, LC-E10E
Body Materials Stainless Steel and polycarbonate resin with conductive fiber
Operating Environment 0 – 40 °C, 85% or less humidity
Dimensions (WxHxD) 129.9 x 99.7 x 77.9 mm
Weight (Body Only) Approx. 495g (CIPA testing standard, including battery and memory card)
Viewfinder Eyecup Ef, E-series Dioptric Adjustment Lens with Rubber Frame Ef, Eyepiece Extender EP-EX15II, Angle Finder C
Case Semi-Hard Case EH19-L
Wireless File Transmitter Compatible with Eye-Fi cards
Lenses All EF and EF-S lenses
Flash Canon Speedlites (220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2)
Battery Grip None
Remote Controller/ Switch Remote Switch RS-60E3
Other Hand Strap E2

Your Comments

Loading comments…
