Nikon D7100 Review

March 25, 2013 | Mark Goldstein |


The Nikon D7100 is a new prosumer DSLR camera with a 24.1-megapixel DX-format image sensor and no optical low-pass filter. Key highlights of the fully weather-sealed D7100 include Full 1080p movies up to 60i/50i and 30p/25p/24p with full-time autofocus and manual exposure control, an ISO range of 100-25600, a 2,016-pixel 3D Colour Matrix metering system, EXPEED 3 image-processing engine, 51-point Auto-focus system of which 15 are cross-type, 14-bit analogue-to-digital conversion, 6fps continuous shooting, 1.3x crop function, dust- and moisture-sealed magnesium alloy body, 1229k dot 3.2-inch LCD screen, and dual memory card slots. The Nikon D7100 costs £1099.99/ $1199.95 / €1329.00 for body only and £1299.99 / $1599.95 / €1579.00 for the body and the AF-S DX Zoom-Nikkor 18-105mm f/3.5-5.6G ED VR kit lens.

Ease of Use

The new Nikon D7100 is externally very similar to the D7000, so a lot of the comments that we made in our review of that camera apply equally to the D7100. The Nikon D7100 slots in below the existing D600 and above the D7000 models - note that it isn't actually replacing the D7000 (yet) in the Nikon DSLR lineup.

The Nikon D7100 continues to ship with the 18-105mm f/3.5-5.6G ED VR kit lens, which feels well-balanced on the Nikon D7100 and despite only having a plastic mount it fits into place with a reassuring mechanical click. It also adds the very important advantage of Vibration Reduction. Nikon bodies don't offer any form of in-camera image stabilisation, unlike similar models from Sony, Pentax and Olympus, so the relatively affordable and versatile 18-105mm VR lens is a good starting point if you don't already have any Nikon lenses.

The shutter release action on the Nikon D7100 is surprisingly quiet, with an exemplary dampened mirror slap that makes this DSLR actually quieter than some rangefinder cameras, and it's tested for 150,000 cycles. Furthermore, there is also a Quiet mode, in which the mirror is raised fairly slowly to further reduce the sound it makes. This, however, introduces some shutter lag, which usually isn't worth the few decibels of difference versus what is already an impressively quiet shutter (Nikon actually recommends using the Quiet mode for taking pictures of sleeping babies, a situation in which a bit of shutter delay obviously isn't a problem).

The overall control layout and 'philosophy' of the Nikon D7100 is very similar to the D7100, with two control wheels and dedicated buttons for controlling ISO sensitivity, white balance, metering and AF mode, and a lockable drive mode dial. The latter is somewhat awkward, requiring the use of both fore- and middle fingers. In addition the Playback button has is positioned to the left of the viewfinder in line with models higher up the range.

There are a few other interface changes as well, most notably the addition of a customisable “i” button and the swapping of the Zoom In and Zoom Out buttons on the rear. The D7000's Live View lever has given way to a button encircled by a switch that toggles between Photo Live View and Movie Live View modes, while the red movie record button has been moved to the camera’s top plate, close to the shutter release - but overall, the Nikon D7100’s user interface has remained remarkably similar to that of its predecessor.

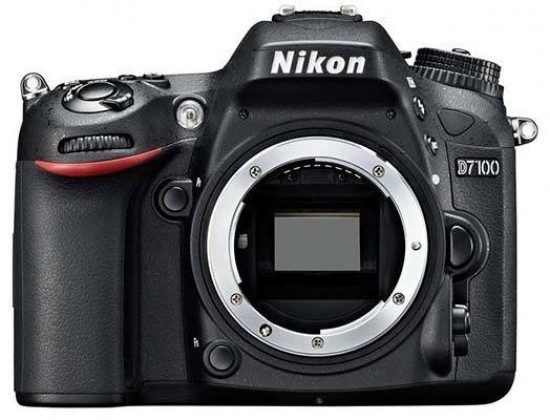

Nikon D7100 Nikon D7100
Front Rear

The D7100 uses the same EN-EL15 battery and MH-25 recharger as the D7000, but has a new battery grip, the MB-D15 Multi Battery Power Pack. It records images on SD/SDHC/SDXC cards via not one but two slots housed in the large right-hand compartment. This allows you to use two cards in tandem, with the ability to overflow images onto the second card, backup images from the first to the second, or save RAW to slot 1 and JPEG to slot 2. It also obviously greatly expands the overall memory capacity, useful if you shoot a lot of images in a short space of time.

The Nikon D7100 follows conventional DSLR design in having a shooting mode dial on the top of the camera, now with useful lock button in the centre, which allows you to select either one of the advanced modes like Manual, Aperture- or Shutter-priority, or 19 different scene modes. The new Effects shooting mode provides provide 7 different filters that can be applied to both still images and movies. The Night Vision effect is particularly worth of mention, pushing the camera's sensitivity to a whopping ISO 102,400, although a monochrome rather than colour image is recorded.

The Exposure Compensation button is thoughtfully positioned next to the shutter release. Hold down this button with your right forefinger and spin the control wheel on the top-rear of the camera with your thumb to adjust its settings - simple and intuitive. The other buttons sitting next to the shutter release are the aforementioned Movie Record button and one for setting the metering. The D7100 has a similar monochromatic status LCD to the D90, a pro-level feature that indicates who this camera is primarily targeted at. On cheaper cameras, the LCD on the rear usually has to do both jobs, but on this model most of the key settings are visible from above on the smaller panel. This can make the Nikon D7100 quicker to use and it may also extend the battery life, depending on how extensively you use the rear LCD screen.

The D7000's 16.2 megapixel CMOS sensor has been superseded by a 24.1 megapixel CMOS chip, capable of providing a Live View feed, recording Full HD video and capturing full-resolution stills at 6 frames per second for up to 33 Fine JPEG images and 6 14-bit RAW images, slightly more than the D7000 for JPEG but significantly less for RAW. There's also a slightly faster rate of 7fps in the new “1.3x” crop mode with an increased buffer of 73 fine JPEGs or 12 RAW files. The 1.3x crop function principally provides an additional 1.3x telephoto effect. As the Nikon D7100 is a DX camera with a “crop factor” of 1.5, the “1.3x” mode is in fact a 2x crop mode relative to 35mm full frame, essentially turning the Nikon D7100 into a 15-megapixel FourThirds camera while retaining the 3:2 aspect ratio. In this mode the camera's 51 focus points cover an even wider area of the frame for even better subject acquisition. It also allows for faster operation of up to 7 fps continuous shooting and Full HD movie recording up to 50i/60i.

The sensor can clean itself by way of high-frequency vibrations that will, at least in theory, shake off any non-adhesive dust particles that may have settled on it during a lens change. You can specify, via an option in the Setup menu, whether you want sensor cleaning to take place at shutdown, startup, both or neither, with the default being 'both'. The cleaning process pleasingly has no practical impact on startup times, which were near instant. The new image sensor is complemented by the more powerful EXPEED 3 processing engine.

Nikon D7100 Nikon D7100
Pop-up Flash


The D7100 upgrades its predecessors excellent three-inch, 920,000-dot monitor with a bigger and even higher-resolution 3.2 inch screen that has 1229k dots. The screen is used not only to navigate menus and to review pictures, but can also act as a secondary status display, facilitating the transition for upgraders from entry-level DSLR owners who are not used to having a top-mounted status LCD on their cameras. It's also the rear screen that provides live view for capturing both stills and movies. For this reason, we were a little disappointed that the monitor is still fixed, lacking articulation of any kind, something that one of the D7100's key rivals, the Canon EOS 60D, does offer.

You still get a true optical TTL finder as well though, and it's an excellent one to boot, offering an impressive 100% frame coverage, 0.94x magnification and 170 degree viewing angle. The auto-focus system has also been significantly upgraded to the same 51-point system as the flagship Nikon D4 and the D800, with the centre point permanently marked on the focusing screen and the other 51 points lighting up as red boxes, and compositional grid lines that can be called up via a menu option. Three warning signs – reminding you that you are in black-and-white capture mode, the battery is running low or you have forgotten to insert a memory card – may also appear in the form of overlaid icons when appropriate. Below the finder is a traditional monochromatic status bar that is the same as the one seen in the D90.

The "info"button contributes greatly to the Nikon D7100's ease-of-use - pressing it displays virtually all of the camera's main settings on the large rear screen. Then pressing the "i" button as the bottom of the vertical row of buttons to the left of the LCD screen allows you to interact with and set the onscreen options, with 10 available in total.

As stated above, the D7100 now has 51 auto-focus sensors, out of which 15 are a cross type. The other 36 are of the line variety, consequently being only sensitive to either vertical or horizontal detail, but not both. In practice, this did not turn out to be a problem, with the camera typically locking focus on the subject easily, no matter which AF point was selected. Be aware though that the default AF area mode is 'auto-area' in most of the scene and exposure modes, including P, A, S and M as well. In auto-area mode it is the camera, rather than the photographer, that chooses which AF point(s) to use, which is usually not desirable. You can change this to single-point, dynamic-area or 3D-tracking AF. Single-point AF is what you will want to use most of the time, as it gives you the opportunity to specify which of the 51 auto-focus sensors should be engaged. In the viewfinder, the active AF point appears as a red square, which is easy to see. Selecting the active AF point is done by holding down the Af mode button and using the four-way pad, unless the focus selector lock is in the L (=Locked) position.

Nikon D7100 Nikon D7100
Front Side

If you select dynamic-area AF, you can also specify an AF point, but the camera 'will focus based on information from surrounding focus points if subject briefly leaves selected point', as the user guide puts it. This is the default AF area mode in the Sports scene mode. More interesting is the 3D focus tracking feature. Basically this lets you specify the focus point that is right on your subject, then the camera will attempt to track this subject as it moves across the frame, using whichever AF point it deems appropriate in any given moment. Apparently, the camera does this using colour information from the 2,016-segment RGB metering sensor to identify the subject. In the field, it was quite astounding to see 3D focus tracking in action.

The modus operandi of the auto-focus system can also be specified by the photographer. There is nothing new here: AF-S is for stationary subjects – an AF assist lamp is available for use at close range in low light – AF-C is for moving ones, while AF-A is the best of both worlds. Cycling through these modes is done by holding down the dedicated AF button on the left-side of the camera, and turning a control wheel. Note that some of the AF area modes, namely dynamic area and 3D focus tracking, will only work the way described above if you are either in AF-A or AF-C. The camera also allows you to focus on your subject manually. To do this, turn the AF/MF switch, found below the lens release button, to the position marked with an 'M', and use the MF ring on the lens to focus.

One area of photography that the D7100 is particularly well suited to is flash photography. The camera has a built-in speedlight with a guide number of 12 (in metres) at ISO 100. In auto mode, this flash will pop-up automatically if the camera thinks it's necessary, but in most other exposure modes, it is left to the photographer to decide whether to use it or not. This little flash can not only be used as an emergency light source or a fill light, but also as a commander for up to two groups of wireless flash units. In such a setup, you can specify if you want the on-board flash to give only a signal to fire off the wireless slaves or also to provide some fill light. It is also possible to chose the mode of operation (TTL, Auto or Manual) for one or both of the slaved flash groups, and even to regulate their output from the camera. Compatible flashguns include the SB-900, SB-800, SB-700, SB-600, and SB-400 flash units.

As with most recent DSLR cameras from both Nikon and the other manufacturers, the D7100 offers Live View off the main sensor. The D7000's Live View lever has given way to a button encircled by a switch that toggles between Photo Live View and Movie Live View modes. In Photo Live View mode, press the button and the mirror flips up, the shutter opens and the rear screen displays the scene as seen through the lens. Live View is either delivered on the high-resolution rear monitor or on any LCD panel or plasma screen connected to the camera via an HDMI cable. There is a red rectangle in the middle for focusing , which you can move practically anywhere in the frame. When in manual focus mode, you can magnify into this rectangle in five steps simply by repeatedly pressing the button marked with a loupe icon, but this magnification seems to be interpolated rather than real. This means that you cannot see detail down to the pixel level, unlike with many competing cameras, which is a disappointment given the excellent LCD screen.

Manual Focus is not the only focusing option in Live View when taking still images. The D7100 has two AF modes in Live View, AF-A and AF-F. Both employ a contrast-detect method of focusing, with AF-A locking onto the subject when you half-press the shutter button, and AF-F (full-time-servo AF) automatically tracking the subject continuously even if it moves. The D7100's Live View auto-focusing isn't very fast, typically taking between 1 and 2 seconds to lock focus on a subject in good light, and even longer in low-light conditions. There are selectable AF-area modes according to the subject; face-priority AF, wide-area AF, normal-area AF and subject-tracking AF. 'Face-Priority AF' had no problem finding and keeping track of human faces as long as they were facing the camera, and the system can detect up to 35 faces and will attempt to focus on the one closest to the camera.

Nikon D7100 Nikon D7100
Memory Card Slot Battery Compartment

The amount of overlaid information is user selectable, and can include a shooting grid similar to what you can see in the optical viewfinder and also the virtual horizon which helps to keep your images straight. This feature can also be turned on and off via the reprogrammable Fn button, which can be assigned to a range of different functions, and also appears in the optical viewfinder status bar via the exposure compensation scale. But there's still no live histogram, as on the D90, which is a glaring omission that makes Live View much less usable than it could be, and again puts Nikon behind the competition in this area. Photographers who intend to use Live View mainly for tripod work will, on the other hand, be delighted to learn that the camera offers true mirror lock up.

Live View is also employed by the Nikon D7100's movie mode. After moving the Lv switch to the Movie Live View position and optionally presetting the aperture, shutter speed and focus, you can start recording video by pressing the Movie button with the red dot sitting within the Lv switch. The camera records full high-definition, wide-screen video in 1920x1280 pixel resolution, at a frame rate of 60i/50i in the 1.3x crop mode and 30p/25p/24p in the DX format,both in AVI format using the motion JPEG codec. As with Live View, contrast-detect AF is possible whilst shooting movies, although as with still images there's an audible whine as the camera refocuses and it's still too slow to focus on any fast-moving subject, so much so that we suspect most serious users will use manual focusing instead.

You can set both the aperture and the shutter speed from the camera in movie mode, although the slowest shutter speed is limited to 1/30th second, plus exposure compensation and AE-Lock can also be set. Out of the box the D7100 can now record stereo sound via its built-in microphone with three different levels of sensitivity on offer, and stereo recording can be recorded using an optional external microphone. The maximum size of a single video clip is 2 gigabytes which, given that movies occupy about 100 megabytes of storage space per minute, would theoretically translate into about 20 minutes of continuous recording, but – apparently because of certain legal regulations in the EU –, Nikon decided to limit the clip length to 5 minutes for high-definition movies.

For the images already captured, the Nikon D7100 offers a broad range of retouching tools, including post-capture D-lighting (useful if you forgot to turn on Active D-lighting before capture), red-eye correction, trimming, monochrome conversion, different filter effects, colour adjustments, image resizing, image overlay, in-camera raw processing, quick auto retouching, straightening of crooked pictures, lens distortion correction, perspective control (reduction of keystoning), and fisheye, miniature, colour outline and colour sketch effects. Many of these functions make it unnecessary to buy specialised computer programs or plug-ins and spend hours in front of a computer to achieve a desired/popular effect. Interval timer shooting is a powerful feature and something that isn't offered by the older D90.

As far as connectivity goes, there are USB / VideoOut and HDMI ports as well as accessory terminals for the connection of an external microphone and either wired remote or a GPS unit, and a new headphone jack for monitoring audio while you shoot, all sheltered behind three rubberised doors on the left side of the camera, when viewed from the back.
