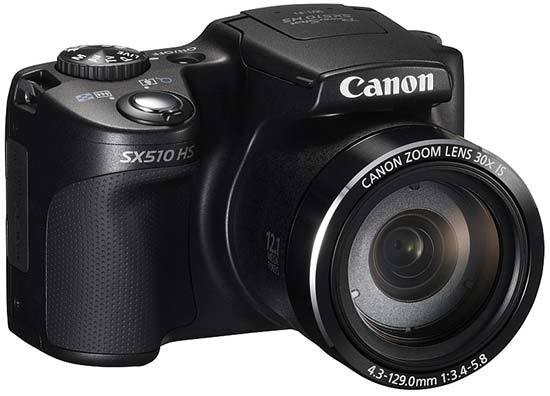

Canon PowerShot SX510 HS Review

4.0
November 15, 2013 | Matt Grayson |

Specifications

IMAGE SENSOR

Type 1/2.3 type back-illuminated CMOS
Effective Pixels Approx. 12.1M
Colour Filter Type Primary Colour

IMAGE PROCESSOR

Type DIGIC 4 with iSAPS technology

LENS

Focal Length 4.3 – 129.0 mm (35 mm equivalent: 24 – 720 mm)
Zoom Optical 30x
ZoomPlus 60x
Digital Approx. 4x (with Digital Tele-Converter Approx. 1.5x or 2.0x and Safety Zoom¹). Combined Approx. 120x
Maximum f/number f/3.4 – f/5.8
Construction 13 elements in 10 groups (1 UD lens, 1 double-sided aspherical lens)
Image Stabilisation Yes (lens shift-type), approx. 2.5-stop¹. Intelligent IS plus Enhanced Dynamic IS

FOCUSING

Type TTL
AF System/ Points AiAF (Face Detection / 9-point), 1-point AF (fixed to centre)
AF Modes Single, Continuous, Servo AF/AE¹, Tracking AF
AF Point Selection Size (Normal, Small)
AF Lock On/Off Selectable
AF Assist Beam Yes
Manual Focus Yes
Closest Focusing Distance 0 cm (W) from front of lens in macro

EXPOSURE CONTROL

Metering modes Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot (Centre)
AE Lock Yes
Exposure Compensation +/- 2 EV in 1/3 stop increments.
Enhanced i-Contrast for automatic dynamic range correction
ISO sensitivity* AUTO, 80, 100, 200, 400, 800, 1600, 3200

SHUTTER

Speed 1 – 1/1600 sec. (factory default)
15 – 1/1600 sec. (total range – varies by shooting mode)

WHITE BALANCE

Type TTL
Settings Auto (including Face Detection WB), Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom

LCD MONITOR

Monitor 7.5 cm (3.0”) TFT, Approx. 461,000 dots
Coverage Approx. 100%
Brightness Adjustable to one of five levels. Quick-bright LCD

FLASH

Modes Auto, Manual Flash On / Off, Slow Synchro
Slow Sync Speed Fastest speed 1/1600 sec.
Red-Eye Reduction Yes
Flash Exposure Compensation +/- 2 EV in 1/3 stop increments. Face Detection FE. Safety FE, Smart Flash Exposure
Flash Exposure Lock Yes
Manual Power Adjustment 3 levels with internal flash
Built-in Flash Range 50 cm – 5.0 m (W) / 50 cm – 3.0 m (T)
External Flash Canon High Power Flash HF-DC2

SHOOTING

Modes Smart Auto (32 scenes detected), Movie Digest, Program AE, Shutter priority AE, Aperture priority AE, Manual, Live View Control, SCN (Portrait, FaceSelf-Timer, Low Light (3.0MP), Snow, Fireworks), Creative Filters (Fish-eye Effect, Miniature Effect, Toy Camera Effect, Monochrome, Super Vivid, Poster Effect), Discreet, Movie
Modes in Movie Smart Auto (21 scenes detected), Standard, Program AE, Portrait, Snow, Fireworks, Miniature Effect, Monochrome, Super Vivid, Poster Effect, Super Slow Motion Movie
Photo Effects My Colors (My Colors Off, Vivid, Neutral, Sepia, Black & White, Positive Film, Lighter Skin Tone, Darker Skin Tone, Vivid Blue, Vivid Green, Vivid Red, Custom Color)
Drive modes Single, Continuous, Continuous with AF, Self-Timer
Continuous Shooting Approx. 3.8 shots/sec
High-speed Burst (3MP): 10.5 shots/sec
with AF: Approx. 1.0 shots/sec.
with Live View: Approx. 1.0 shots/sec
(all speeds are until memory card becomes full)¹²

RECORDING PIXELS / COMPRESSION

Image Size 4:3 - (L) 4000 x 3000, (M1) 2816 x 2112, (M2) 1600 x 1200, (S) 640 x 480
16:9 - (L) 4000 x 2248, (M1) 2816 x 1584, (M2) 1920 x 1080, (S) 640 x 360
3:2 - (L) 4000 x 2664, (M1) 2816 x 1880, (M2) 1600 x 1064, (S) 640 x 424
1:1 - (L) 2992 x 2992, (M1) 2112 x 2112, (M2) 1200 x 1200, (S) 480 x 480
Resize in playback (M2, S)
Compression Superfine, Fine
Movies (Full HD) 1920 x 1080, 24 fps, (HD) 1280 x 720, 30 fps, (L) 640 x 480, 30 fps
Super Slow Motion Movie (L) 640 x 480, 120fps, (M) 320 x 240, 240fps
Miniature Effect (HD, L) 6fps, 3fps, 1.5 fps
Movie Digest (L)
Movie Length (Full HD & HD) Up to 4 GB or 29 min. 59 sec.¹
(L) Up to 4 GB or 1 hour²
(Super Slow Motion Movie) 30 sec.

FILE TYPES

Still Image Type JPEG compression, (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system, Digital Print Order Format [DPOF] Version 1.1 compliant
Movies MOV [H.264 + Linear PCM (stereo)]

DIRECT PRINT

Canon Printers Canon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge
PictBridge Yes (via USB or Wireless LAN)

OTHER FEATURES

GPS GPS via mobile (linked to compatible smartphone)
Red-Eye Correction Yes, during shooting and playback
My Category Image tagging feature
Intelligent Orientation Sensor Yes
Histogram Yes
Playback zoom Approx. 2x – 10x
Self Timer Approx. 2 or 10 sec., Custom
Menu Languages English, German, French, Dutch, Danish, Finnish, Italian, Greek, Norwegian, Portuguese, Russian, Swedish, Spanish, Ukrainian, Polish, Czech, Hungarian, Turkish, Simplified Chinese, Chinese (traditional), Japanese, Korean, Thai, Arabic, Romanian, Farsi, Hindi, Malay, Indonesian, Vietnamese

INTERFACE

Computer Hi-Speed USB (MTP, PTP) dedicated connector (Mini-B compatible)
Other HDMI Mini Connector (HDMI-CEC compatible) A/V output (PAL/NTSC)
Computer/Other Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only)¹

MEMORY CARD

Type SD, SDHC, SDXC

SUPPORTED OPERATING SYSTEM

PC & Macintosh Windows 8/7 SP1/ Vista SP2/ XP SP3
Mac OS X v10.6 – 10.8
For Wireless LAN connection to a PC:
Windows 8/7 SP1
Mac OS X v10.6.8/10.7/10.8.2 or later

SOFTWARE

Browsing & Printing ImageBrowser EX
Other PhotoStitch, Map Utility

POWER SOURCE

Batteries Rechargeable Li-ion Battery NB-6LH (battery and charger supplied)
Battery life Approx. 250 shots
Eco mode approx. 330 shots
Approx. 300 min. playback
A/C Power Supply Optional, AC Adapter Kit ACK-DC40

ACCESSORIES

Cases / Straps Soft Case DCC-970, DCC-950
Flash Canon High Power Flash HF-DC2
Power Supply & Battery Chargers AC Adapter Kit ACK-DC40, Battery Charger CB-2LYE
Other Canon HDMI Cable HTC-100, interface cable IFC-400PCU

PHYSICAL SPECIFICATIONS

Operating Environment 0 – 40 °C, 10 – 90% humidity
Dimensions (WxHxD) 104.0 x 69.5 x 80.2 mm
Weight Approx. 349 g (including battery/batteries and memory card)

Zoom ¹ Depending on the image size selected.
Image Stabilisation ¹ Values at maximum optical focal length. Cameras whose focal length exceeds 350mm (35mm equivalent) are measured at 350mm.
AF Modes ¹ Some settings limit availability.
Continuous Shooting ¹ Under conditions where the flash does not fire.
² Depending on memory card speed / capacity / compression setting.
Movie Length ¹ The following Speed Class memory cards are required for maximum record time: (HD) 1280 x 720 Speed Class 4 or above. (Full HD) 1920 x 1080 Speed Class 6 or above. (iFrame) 1280 x 720 Speed Class 6 or above.
² Depending on memory card speed / capacity / compression setting.
Computer/Other ¹ Wi-Fi use may be restricted in certain countries or regions. Wi-Fi support varies by device and region. For more information visit www.canon-europe.com/wirelesscompacts
  • All data is based on Canon standard testing methods (according to CIPA Standards) except where indicated.
  • Subject to change without notice.
