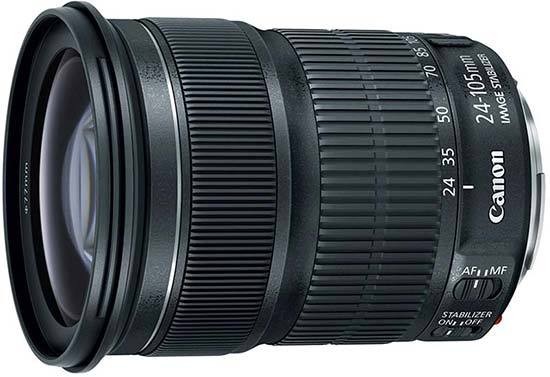

Canon EF 24-105mm f/3.5-5.6 IS STM Review

January 14, 2015 | Mark Goldstein |

Specifications

OPTICAL FEATURES/SPECIFICATIONS

Image size -
35mm film equivalent focal length (mm) -
Angle of view (horzntl, vertl, diagnl) 74º - 19º 20', 53º - 13º, 84º - 23º 20'
Lens construction (elements/groups) 17/13
No. of diaphragm blades 7
Minimum aperture 22-32(36)¹
Closest focussing distance (m) 0.4
Maximum magnification (x) 0.3 (at 105mm)
Distance Information Yes
Image stabilizer 4-stops
AF actuator STM

PHYSICAL SPECIFICATIONS

Dust/moisture resistance* -
Filter diameter (mm) 77
Max. diameter x length (mm) 83.4 x 104
Weight (g) 525

ACCESSORIES

Lens cap E-77U / E-77II
Lens hood EW-83M
Lens case/pouch LP1219
Rear cap Lens Dust Cap E
Magnification w/ Extension Tube EF12 II 0.61-0.46
Magnification w/ Extension Tube EF25 II 0.67-0.27¹
Extender Compatiblity Not Compatible
Other Accessories Close-up lens 500D Compatible for telephoto only
Magnification: 0.41 – 0.21x at 105 mm
Minimum aperture ¹ Minimum aperture if using 1/3stop increments
Magnification w/ Extension Tube EF25 II ¹ Not Compatible at wide angles
  • *Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause sligth abrasion of the camera mount.
  • This in no way effects either the lens or camera performance.
