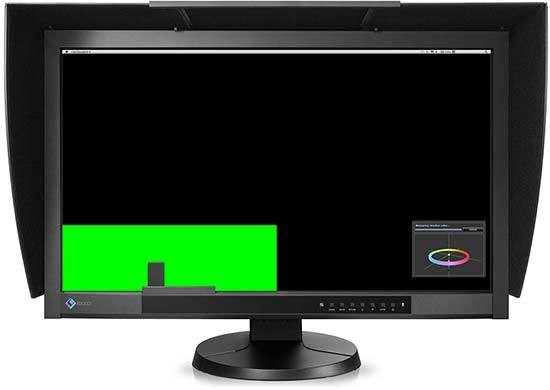

EIZO ColorEdge CG277 Review
Specifications
| Cabinet Color | Black |
|---|---|
| Panel | |
| Type | IPS |
| Size | 27" / 68 cm (684 mm diagonal) |
| Native Resolution | 2560 x 1440 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 596.7 x 335.6 mm |
| Pixel Pitch | 0.2331 x 0.2331 mm |
| Grayscale Tones | DisplayPort, HDMI: 1024 tones (a palette of 65281 tones) DVI: 256 tones (a palette of 65281 tones) |
| Display Colors | DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion DVI: 16.77 million from a palette of 278 trillion |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 300 cd/m2 |
| Recommended Brightness for Calibration | 120 cd/m2 or less |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 6 ms (Gray-to-gray) |
| Wide Gamut Coverage (typical) | Adobe RGB: 99% |
| Video Signals | |
| Input Terminals | DVI-D 24 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color) |
| Digital Scanning Frequency (H / V) | DisplayPort, DVI: 26 - 89 kHz, 23.75 - 63 Hz (VGA Text: 69 - 71 Hz) HDMI: 15 - 78 kHz, 23.75 - 61 Hz |
| USB | |
| Function | 2 ports for monitor control 2-port USB hub |
| Standard | USB 2.0 |
| Power | |
| Power Requirements | AC 100 - 120 V / 200 - 240 V, 50 / 60 Hz |
| Maximum Power Consumption | 99 W |
| Typical Power Consumption | 43 W |
| Power Save Mode | Less than 0.7 W |
| Standby Mode | Less than 0.5 W |
| Power Management | Power Save (DisplayPort: Rev. 1.1a, DVI: DVI DMPM) |
| Self-Calibration | Yes |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | Color Mode (Custom, Adobe RGB, sRGB, Rec709, EBU, SMPTE-C, DCI, Calibration) |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Others | Screen Size (full screen, enlarge, normal), Color Adjustment (Brightness, Gamma, Temperature, Saturation, Hue, Gain, Black Level, Independent 6-Color Control, Reset), HDMI Settings (Noise Reduction, Film Detection, Safe Area Marker, Safe Area Size, Border Color), Range Extension, Signal Switching, OSD Menu Settings, Overdrive, Input Skip, Mode Skip, USB Selection, Signal Info, Monitor Info, DUE Priority, Key Lock, Signal Bandwidth, Power Indicator, All Reset |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 646 x 425 - 576.5 x 281.5 mm |
| Dimensions (Portrait, W x H x D) | 402 x 671 - 704 x 281.5 mm |
| Dimensions (Without Stand, W x H x D) | 646 x 402 x 92 mm |
| Net Weight | 12.8 kg / 28 lbs |
| Dimensions (Landscape with Hood, W x H x D) | 653 x 432.5 - 584 x 379.5 mm |
| Dimensions (Portrait with Hood, W x H x D) | 410.5 x 679 - 712 x 379.5 mm |
| Net Weight (Without Stand) | 8.8 kg / 19.4 lbs |
| Net Weight (With Hood) | 13.8 kg / 30.4 lbs |
| Height Adjustment Range | 151.5 mm |
| Tilt | 25° Up, 0° Down |
| Swivel | 344° |
| Pivot | 90° |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 0 - 35 °C |
| Operating Humidity (R.H., non condensing) | 20 - 80 % |
| Certifications & Standards (Please contact the EIZO group company or distributor in your country for the latest information.) | CB, TUV/GS, CE, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics (including ISO 9241-307 [Pixel fault class I]), c-Tick, GOST-R, RoHS, WEEE, CUDO certified mark |
| Supplied Accessories | AC power cord, signal cables (DVI-D - DVI-D [dual link supported], Mini DisplayPort - DisplayPort), USB cable, setup guide, EIZO LCD Utility Disk (ColorNavigator software, PDF user's manual), adjustment certificate, ScreenCleaner, monitor hood, quick reference, warranty card |
| Warranty | Five Years 24 |
