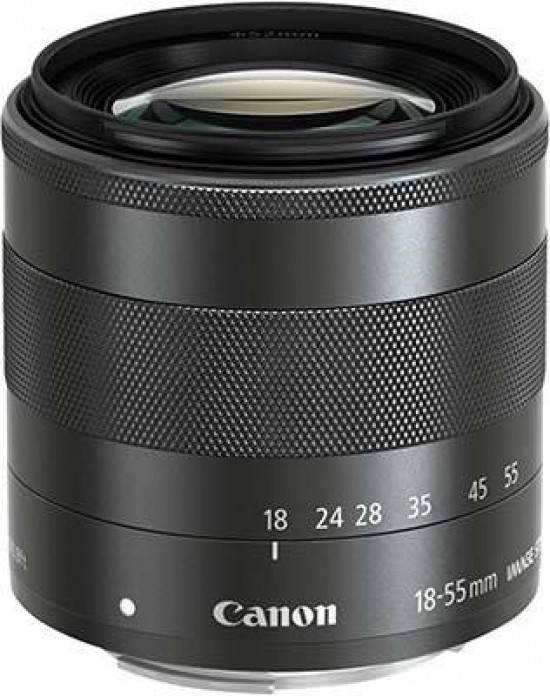

Canon EF-M 18-55mm f/3.5-5.6 IS STM Review
August 21, 2013
|
Mark Goldstein
|
Specifications
OPTICAL FEATURES/SPECIFICATIONS
| Image size | APS-C |
|---|---|
| 35mm film equivalent focal length (mm) | 29-88 |
| Angle of view (horzntl, vertl, diagnl) | 64º 30' - 23º 20', 45º 30'- 15º 40', 74º 20' - 27º 50' |
| Lens construction (elements/groups) | 13/11 |
| No. of diaphragm blades | 7 |
| Minimum aperture | 22 - 38(36)¹ |
| Closest focussing distance (m) | 0.25 |
| Maximum magnification (x) | 0.36 (at 55mm) |
| Distance Information | Provided |
| Image stabilizer | 4-stops |
| AF actuator | STM |
PHYSICAL SPECIFICATIONS
| Filter diameter (mm) | 58 |
|---|---|
| Max. diameter x length (mm) | 69.0 x 75.2 |
| Weight (g) | 205g |
ACCESSORIES
| Lens Cap | E-58 II |
|---|---|
| Lens hood | EW-63C |
| Lens case/pouch | LP1016 |
| Magnification w/ Extension Tube EF12 II | 0.65-0.23¹ |
| Magnification w/ Extension Tube EF25 II | 1.00-0.51¹ |
| Extender Compatiblity | NC |
| Minimum aperture | ¹ Minimum aperture if using 1/3stop increments |
|---|---|
| Magnification w/ Extension Tube EF12 II | ¹ Not compatible at wide angle |
| Magnification w/ Extension Tube EF25 II | ¹ Not compatible at wide angle |
