Introduction

The Panasonic Lumix DMC-LX100 is a premium compact camera which incorporates a large Micro Four Thirds sensor. The Panasonic LX100 also features 4K video recording at 25/24fps including the ability to extract high-resolution 8MP images from the 4K video, a 24-75mm f/1.7-2.8 Leica lens, high-speed AF in approximately 0.14 seconds, built-in Live View Finder (LVF) with 2764K-dot equivalent high resolution, a 3.0-inch LCD screen with 921k-dot resolution, an ISO range of 100-25600, high speed burst shooting at 11 fps with the mechanical shutter and 40fps with the electronic shutter, aperture and control rings, and integrated Wi-Fi and NFC connectivity. The Panasonic Lumix DMC-LX100 is available in black or silver for £699.99 / $899.99.

Ease of Use

The new Panasonic Lumix DMC-LX100 is nominally the successor to the 2-year-old DMC-LX7 camera, but it includes so many technological advances that it's virtually unrecognisable from its predecessor. The main change is the inclusion of the same Micro Four Thirds sensor that's found in Panasonic's GX7 compact system camera. In terms of physical size, the 1.33-inch MFT sensor is significantly larger than the 1-inch sensors used in two of the LX100's principal rivals, the Sony Cyber-shot DSC-RX100 III and the Canon PowerShot GX7, and with 16.84 megapixels onboard, the pixel size is bigger too, all of which promises better image quality. The LX100 actually has a multi-aspect ratio sensor, so that it can capture 4:3, 3:2, 16:9, or 1:1 aspect images while maintaining the same focal length in each ratio, resulting in a 12.8 megapixel 4:3 image.

Another important change is the inclusion of a built-in electronic viewfinder, again borrowed directly from the GX7. If ever there was a reason to end the debate about optical versus electronic viewfinders, this is it. Firstly, it has a staggeringly high resolution of 2764k dots, which translates into a display so good that you would swear it was an optical finder, helped in no small part by the high color reproduction of approximately 100% of the Adobe RGB colour-space, 100% scene coverage and 60fps refresh rate. Secondly, there's a handy sensor which automatically detects when the LX100 is held up to eye-level and even starts auto-focusing, with just the slightest delay until the display is ready. Thirdly, a whole host of information is displayed onscreen - virtually everything that you can display on the rear LCD screen can be shown in the EVF. Suffice to say that we didn't miss having an optical viewfinder when shooting with the LX100.

The LCD screen on the rear is a bright 3-inch model with 921k dot resolution that provides a naturalistic translation of the scene before the lens. However you will still find yourself squinting and cupping a hand around it in bright sunlight, so much so that we shot almost exclusively using the EVF. Also sadly, the Panasonic Lumix DMC-LX100 doesn't have a touchscreen and the LCD isn't articulated in any way, two features that the GX7 compact system camera does offer and which we'd have liked to have seen on the LX100.

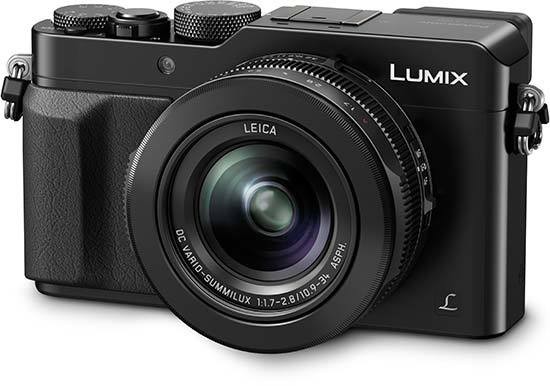

Front of the Panasonic Lumix DMC-LX100

As expected at this price-point, both Raw and JPEG files can be committed to SD/SDHC/SDXC or Eye-Fi cards, and conveniently both can be shot in tandem, with write speeds impressive at just two to three seconds. It further boasts a 3.1x optical zoom lens, offering a focal range equivalent to 24-75mm in 35mm terms, optically stabilized to help prevent image blur from camera shake and with a Nano Surface Coating to help prevent lens flare. Best of all is the fast f/1.7 maximum aperture, which in conjunction with the Micro Four Thirds sensor makes it easier to achieve DSLR-like shallow depth of field and out-of-focus backgrounds, whilst also proving invaluable when hand-holding the camera in low-light.

In terms of auto-focusing, the LX100 has a couple of aces up its sleeve. The Full Area AF allows you to set the focus on any part of the 100% field of view, even right at the edges of the frame, while the focus detect area encompasses 49 zones. Furthermore, the Low Light AF system works in -3EV light situations, ensuring that auto-focusing works even in starlight.

Focus Peaking is also new to the LX-series, if not to recent advanced compact cameras. When enabled, it graphically shows the peak of focus in the MF and AF+MF modes by displaying an outline around the subject. The detection level can be set to 'High' or ‘Low’ and a colour can be selected In ‘High’ these are light blue, yellow or green and in 'Low' blue, orange or white can be selected. Pinpoint AF mode is very useful for precisely focusing on a very small area, while, Manual Focus Assist automatically displays a 10x magnification to help you make sure that the subject is in focus in the MF mode.

The Panasonic Lumix DMC-LX100 weighs a manageable 393g with the battery and card inserted, some 100g more than the LX7. Starting with the lens, there's a slider switch sitting atop the lens barrel for adjusting picture ratios. There's the option of selecting the standard 4:3 digital ratio to the right of the 'dial', with 3:2, 16:9 and, more unusually, 1:1, being the alternatives. Slide your left hand down and to the left of the lens surround and there's a further tactile switch for swapping between auto focus, macro focus and manual focus.

Rear of the Panasonic Lumix DMC-LX100

An intuitive aperture ring additionally surrounds the lens which allows you to quickly change the aperture, with 20 1/3rd exposure steps available running from f/1.7 through to f/16. If you zoom to a focal length that slows down the aperture range, these physical markings obviously don't change - so at 75mm, for example, choosing f/1.7 actually sets the aperture to the fastest available value of f/2.8. Furthermore, changing the ring from f/1.7 to, say, f/2.2 has absolutely no effect on the camera's settings, as those apertures aren't available at 75mm. Other than this unavoidable quirk, the aperture ring is a great addition that further adds to the photographer-friendly feel of the Panasonic Lumix DMC-LX100.

By default the new control ring quickly accesses stepped focal range settings of 24, 28, 35, 50, 70 and 75mm, although it can be reconfigured as a stepless zoom ring if you prefer, or to set the ISO speed, white balance or filter mode. While the zoom ring is a very welcome addition, it is a little on the narrow side, so much so that we occasionally found ourselves moving the aperture ring at the same time - an annoying consequence of the camera's small size.

The Panasonic Lumix DMC-LX100's grip may not be particularly large but its leather-effect rubber padding further prevents the camera from feeling like it will slip from your grasp in a strong wind. Overall it comes across as a compact and elegant solution, with the body proportions measuring a manageable 114.8 x 66.2 x 55.0 mm, a little wider and deeper than the LX7. This therefore is a camera that will slip readily into a jacket or small bag, but not a trouser pocket.

The MOS sensor greatly increases the camera's burst shooting options, with a fastest setting of 11 frames/sec when using the mechanical shutter or an incredible 40 full-resolution images when using the electronic shutter (focus and exposure fixed at the first frame). Slower modes of 6.5 frames/sec and 2 frames/sec complete with AF Tracking are also available.

Side of the Panasonic Lumix DMC-LX100

With the Panasonic Lumix DMC-LX100 we have other Lumix family regulars making a re-appearance. Selected via a dedicated button on top of the camera, there's the subject recognising and performance optimising intelligent Auto (iA) mode for point and shoot simplicity, with another button accessing an extensive range of Creative Control in-camera effects. Users also get access to six customisable Photo Style modes via the on-screen menu when the camera is in a creative mode, such as program, aperture priority, shutter priority or manual.

There's a choice of auto and intelligent auto ISO settings, with a range that extends from ISO 100 up to ISO 25600 at full resolution, a nod to the sort of spec to be found on a semi-pro DSLR, so to be welcomed at a compact level. Also present and correct is the time saving 'Q.Menu' (Quick Menu) button on the backplate. Press this and a toolbar of essential shooting functions appears on screen that the user can tab through and make selections from courtesy of the cross keys and central 'set' button on the camera back.

It's undoubtedly these familiar elements that will appeal to anyone trading up from say a FS-series Lumix compact, and soften any perceived learning curve from what otherwise outwardly appears a more sophisticated proposition. A flick of the top-mounted on/off switch and the LX100 powers up in two seconds. The LCD fades into life and the lens extends from within its protective housing to maximum 24mm-equivalent wideangle setting. Generally the camera is as fast and responsive as one could wish for.

Front of the Panasonic Lumix DMC-LX100

It's from the front and top that the Panasonic Lumix DMC-LX100 most shows its enthusiast targeting mettle, large (for a compact) 24mm wide angle Leica-branded lens staring you in the face as you tease the camera from its packaging. Unlike cheaper Panasonic compacts there's no automatic sliding lens cover to protect the glass when not in use, just a separate lens cap of the clip-on variety that may quickly get lost in a pocket. With the aspect ratio adjustment and focus mode sliders, aperture ring and focus ring encircling the lens surround as previously mentioned, above the lens and to its left is an AF assist/self timer lamp.

On top we get that vacant hotshoe protected out of the box by a piece of plastic that also envelops the accessory port nestling just left of centre of the LCD, in front of which are the stereo microphones. The Panasonic Lumix DMC-LX100 doesn't have a pop-up flash - instead there's a small external flash supplied in the box which has a guide number of 7, seemingly an inevitable compromise to ensure that the LX100 remains so compact.

Nestling next to the hotshoe is a dedicated shutter speed dial, which in conjunction with the aperture ring makes it a cinch to use the LX100 in full manual mode. Adjacent to this dial is the aforementioned on/off switch, and continuing the enthusiast-friendly design is another dedicated dial for setting the exposure compensation. The raised shutter release button is ergonomically encircled by a rocker switch for operating the zoom. As indicated the zoom glides fairly leisurely through its range, taking just over three seconds to get from maximum wideangle to extreme telephoto. Tabbing back and forth it's possible to be reasonably accurate with your framing.

The Filter button houses the expanded and renamed Filter modes which give vent to the interior auteur. There are eight screens’ worth of digital effects on board selectable in this mode. These range from our particular favourite of the saturation boosting ‘Expressive’ colour through the sepia tinted ‘Retro’ and the more white-ish if slightly clumsily named ‘Old days’, and include the more self explanatory High Key, Low Key, a slightly unnecessary ‘Sepia’ (given the previous Retro and Old Days options), Monochrome, more high contrast Dynamic Monochrome and grainy film-like Rough Monochrome, Silky Monochrome, the high dynamic range ape-ing ‘Impressive Art’, a separate High Dynamic setting, Cross Process, a vignetting Toy Effect, a more luridly saturated Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, ‘Fantasy’ – bathing everything in a light blue-ish wash (a it like we’ve left the camera on ‘daylight’ setting) – plus Star Filter, One Point Colour and Sunshine setting – the latter of which mimics a burst of sunshine intruding from the top of your frame, so enlivening rather dull shooting conditions with the haze of a summer’s evening.

Top of the Panasonic Lumix DMC-LX100

On the rear of the Panasonic Lumix DMC-LX100 is the electronic viewfinder with diopter control, and alongside that a dedicated button for toggling between the LCD screen and the EVF. Alongside is the wi-fi button lets you use your smartphone to change the camera settings (focus setting, exposure compensation, ISO, WB and Photo Styles) and even fire the shutter button remotely (including interval video recordings), while the auto transfer function automatically backs up your photos onto a tablet. You can also use GPS data from your smartphone to record the shooting location onto your images. The LX100 is also one of the few compact cameras to feature NFC (Near Field Communication) technology (the same technology that's used for mobile payments), which allows you to connect it to a compatible internet enabled device or another NFC-enabled camera by simply tapping them together.

Just right of this we have the recessed 'one touch' video record button that very usefully allows the user to be up and shooting video in a thrice no matter what other (non video) mode they might have selected on the adjacent dial. The LX100 offers both AVCHD video capture and MP4. Interestingly, if you want to shoot the maximum 4K video – i.e twice as high quality as Full HD – then a switch to MP4 mode is required before you can implement that setting on the Panasonic, with the choice 25 or 24 frames per second capture speed. In other words 4K shooting is not available with AVCHD compression. You can also extract a still image from a 4K sequence, ending up with the equivalent of an 8 megapixel photo at 30fps - impressive!

The Panasonic Lumix DMC-LX100 is an intriguing prospect for would-be videographers, providing access as it does to the same creative exposure P,A,S,M modes selectable when shooting stills. You also get access to all the Photo Style and Creative Control modes when shooting video. ISO settings, white balance and AF tracking are also all accessible when shooting movies. The normal bugbear of exterior location shoots is also dealt with thanks to a wind cut option among the four screen's worth of menu settings in motion picture mode. Happily, the full extent of the smooth and steady optical zoom can be accessed when shooting video, its mechanical operation quiet and minimally intrusive.

The LX100's Intelligent Auto mode works for movies as well as for still photos. Simply select the iA shooting mode on top of the camera, then the Movie Record button. The Intelligent Scene Selector automatically determines the most suitable Scene mode from five options - Portrait, Scenery, Low Light and Close-up or Normal modes. Face Detection automatically detects a face in the frame and adjusts the focus, exposure, contrast, and skin complexion. Intelligent Exposure continually checks the ambient light level and adjusts the exposure setting as conditions change to prevent blown highlights and blocked shadows. The Image Stabilizer helps prevent blurring from hand-shake when using a compatible lens or via the camera body.

The Panasonic Lumix DMC-LX100 with the Flash Attached

The Panasonic Lumix DMC-LX100 has a time lapse function in which you can set the time interval and the number of images to take, plus a multi-exposure option that lets you combine up to four exposures in a single frame, while the Stop Motion Animation mode allows you to create unique stop motion videos.

Completing the row of buttons above the LCD screen is the enthusiast enticing giveaway of an AF/AE lock button. Underneath is the Quick Menu button and self-explanatory Playback button, and just below this a quartet of cross keys for tabbing through and selecting menu options, or scrolling through captured images, with a central menu/set button falling under the thumb in their midst. The top key of the quartet is marked ISO, which provides quick access to the extensive ISO range of 100-25600. To the right, at three o'clock, the next key is given over as a shortcut to accessing White Balance settings on the fly. The bottom key is for the LX100's burst shooting and self-timer options. At nine o'clock we get a button providing instant access to the AF Area settings.

Beneath this again we get the final two buttons on the camera back, for self explanatory Display - a press of which turns of the operational icons or brings up a nine-zone compositional grid - and the Fn1 button.

While that's it for the Panasonic Lumix DMC-LX100's backplate, the right hand side of the camera - when viewed from the back - features a terminal door covering both HDMI (cable optional) and AV/USB out ports. There are also vacant lugs on the left and right hand flanks of the camera for attaching the provided wrist strap. The base of the camera meanwhile features an off-centre screw thread for attaching a tripod, the other under-side feature being the compartment housing the battery, good for around 350 shots from a single charge, and SD/SDHC/SDXC or Eye-Fi media cards.

Image Quality

All of the sample images in this review were taken using the 12.8 megapixel Fine JPEG setting, which gives an average image size of around 5Mb.

The Panasonic Lumix DMC-LX100 produced images of outstanding quality during the review period. The Panasonic Lumix DMC-LX100 dealt extremely well with chromatic aberrations, with limited purple fringing effects appearing only in high contrast situations. The supplied external flash worked well indoors, with no red-eye and adequate exposure. The night photograph was excellent, with the maximum shutter speed of 60 seconds allowing you to capture plenty of light.

Anti-shake is a feature that sets this camera apart from its competitors and one that works very well when hand-holding the camera in low-light conditions or when using the telephoto end of the zoom range. Macro performance is very good, allowing you to focus as close as 3cm away from the subject (although it's difficult to get the lighting correct at such a close distance). The images were a little soft straight out of the camera at the default sharpening setting and ideally require further sharpening in an application like Adobe Photoshop, or you can change the in-camera setting if you don't like the default results.

The large number of Creative Controls and Photo Styles allow you to quickly and easily customise the look of the camera's JPEG images. We struggled to see any differences between the Intelligent Resolution settings, but Intelligent D-range is an effective feature for capturing more detail in the shadows and highlights, as is the new HDR mode. The clever Panorama mode allows you to take panoramic images very easily by 'sweeping' with the camera, with the ability to apply one of 15 different creative filters.

And then we come to the LX100's low light performance. It produces noise-free images at ISO 100 to 1600, with limited noise starting to appear at ISO 3200. ISO 6400 exhibits quite visible noise and loss of fine detail, and the fastest settings of ISO 12800 and 25600 are even noisier but still usable for small prints and web use.

Noise

There are 9 ISO settings available on the Panasonic Lumix DMC-LX100. Here are some 100% crops which show the noise levels for each ISO setting for both JPEG and RAW file formats:

JPEG	RAW
ISO 100 (100% Crop)	ISO 100 (100% Crop)


ISO 200 (100% Crop)	ISO 200 (100% Crop)


ISO 400 (100% Crop)	ISO 400 (100% Crop)


ISO 800 (100% Crop)	ISO 800 (100% Crop)


ISO 1600 (100% Crop)	ISO 1600 (100% Crop)


ISO 3200 (100% Crop)	ISO 3200 (100% Crop)


ISO 6400 (100% Crop)	ISO 6400 (100% Crop)


ISO 12800 (100% Crop)	ISO 12800 (100% Crop)


ISO 25600 (100% Crop)	ISO 25600 (100% Crop)

Focal Range

The Panasonic Lumix DMC-LX100's 3.1x zoom lens offers a fairly versatile focal range, as illustrated by these examples.

24mm	75mm

Sharpening

Here are two 100% crops which have been Saved as Web - Quality 50 in Photoshop. The right-hand image has had some sharpening applied in Photoshop. The out-of-the camera images are a little soft at the default sharpening setting. You can change the in-camera sharpening level if you don't like the default look.

Original (100% Crop)	Sharpened (100% Crop)

File Quality

The Panasonic Lumix DMC-LX100 has 2 different JPEG image quality settings available, with Fine being the highest quality option. Here are some 100% crops which show the quality of the various options, with the file size shown in brackets.

Fine (6.25Mb) (100% Crop)	Standard (2.92Mb) (100% Crop)


RAW (14.7Mb) (100% Crop)

Chromatic Aberrations

The Panasonic Lumix DMC-LX100 handled chromatic aberrations excellently during the review. There's very slight purple fringing between areas of high contrast, but it's only noticeable on really close inspection, as shown in the examples below.

Chromatic Aberrations 1 (100% Crop)	Chromatic Aberrations 2 (100% Crop)

Macro

The Panasonic Lumix DMC-LX100 offers a macro setting that allows you to focus on a subject that is 3cm away from the camera when the lens is set to 24mm wide-angle. The first image shows how close you can get to the subject (in this case a compact flash card). The second image is a 100% crop.

Macro	Macro (100% Crop)

Flash

The flash settings on the Panasonic Lumix DMC-LX100 are Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off. These shots of a white coloured wall were taken at a distance of 1.5m.

Flash Off - Wide Angle (24mm)	Flash On - Wide Angle (24mm)


Flash Off - Telephoto (75mm)	Flash On - Telephoto (75mm)

And here are a couple of portrait shots. Neither the Forced On or Auto/Red-eye Reduction options caused any amount of red-eye.

Forced On	Forced On (100% Crop)


Auto/Red-eye Reduction	Auto/Red-eye Reduction (100% Crop)

Night

The Panasonic Lumix DMC-LX100's maximum shutter speed is 60 seconds, which is great news if you're seriously interested in night photography. The shot below was taken using a shutter speed of 30 seconds at ISO 200.

Night	Night (100% Crop)

Image Stabilisation

The Panasonic Lumix DMC-LX100 has an antishake mechanism which allows you to take sharp photos at slower shutter speeds than other digital cameras. To test this, took 2 handheld shots of the same subject with the same settings. The first shot was taken with the stabilizer turned off, the second with it turned on. As you can see, with image stabilisation turned on, the images are sharper than when it's turned off.

Shutter Speed / Focal Length	Image Stabilisation Off (100% Crop)	Image Stabilisation On (100% Crop)
1/8th / 24mm

1/8th / 75mm

Intelligent Resolution

The Panasonic Lumix DMC-LX100's Intelligent Resolution feature e makes a standard image look like a higher resolution one by processing the contour areas, texture areas and smooth areas individually, with three different strengths available and an Extended setting which extends the zoom range.

Off	Low


Standard	High


Extended Off	Extended On

Intelligent Dynamic

The Panasonic Lumix DMC-LX100's Intelligent Dynamic setting adjusts the exposure setting to record more detail in the highlights and shadows, with three strengths available - low, standard and high.

Off	Low


Standard	High

HDR

The Panasonic Lumix DMC-LX100's HDR setting automatically akes and combines three differently exposed shots to record more detail in the highlights and shadows, with three EV strengths available.

Off	+1EV


+2EV	+3EV

Aspect Ratios

The Panasonic Lumix DMC-LX100 offers four different aspect ratios.

4:3	1:1


16:9	3:2

Multiple Exposure

The Panasonic Lumix DMC-LX100's Multiple Exposure mode combines two or three different pictures to create one composite image.

Photo Styles

The Panasonic Lumix DMC-LX100 has 6 preset Photo Styles, with Standard as the default setting. The contrast, sharpness, saturation and noise reduction can be individually set for each picture style, and there is also a Custom style so that you can create your own look.

Standard	Vivid


Natural	Monochrome


Scenery	Portrait

Filters

The Panasonic Lumix DMC-LX100 has an extensive range of creative Filters with 22 different options on offer.

Expressive	Retro


Old Days	High Key


Low Key	Sepia


Monochrome	Dynamic Monochrome


Rough Monochrome	Silky Monochrome


Impressive Art	High Dynamic


Cross Process	Toy Effect


Toy Pop	Bleach Bypass


Miniature Effect	Soft Focus


Fantasy	Star Filter


One Point Color	Sunshine

Sample Images

This is a selection of sample images from the Panasonic Lumix DMC-LX100 camera, which were all taken using the 12.8 megapixel Fine JPEG setting. The thumbnails below link to the full-sized versions, which have not been altered in any way.

Ratings (out of 5)
Design	5
Features	5
Ease-of-use	4.5
Image quality	5
Value for money	4.5

Metrics	Dimensions (W x H x D)	114.8 x 66.2 x 55.0 mm/(4.52 x 2.61 x 2.17 inch)
Metrics	Weight	Approx. 351 g without Battery and SD Memory Card (0.77 lb)/Approx. 393 g with Battery and SD Memory Card (0.86 lb)
Pixels	Camera Effective Pixels	12.8 Megapixels
Sensor	Sensor Size / Total Pixels / Filter	4/3-type High Sensitivity MOS Sensor / Total Pixel Number 16.84 Megapixels / Primary Color Filter
Lens	Aperture	F1.7 - 2.8 / 9 Diaphragm Blades (F1.7 - 16.0 (W), F2.8 - 16.0 (T))
	Optical Zoom	3.1x
	Focal Length	f = 10.9 - 34mm/(24 - 75mm in 35mm equiv in 4:3, 3:2, 16:9)/(28 - 88mm in 35mm equiv. in 1:1)/(28 - 87mm in 35mm equiv. in 4:3 in 4K Photo recording)/(27 - 84mm in 35mm equiv. in 3:2 in 4K Photo recording)/(26 - 81mm in 35mm equiv. in 16:9 in 4K video / 4K Photo recording)/(32 - 101mm in 35mm equiv. in 1:1 in 4K Photo recording)
	Extra Optical Zoom (EZ)	4.3x (4:3 / 6.5M (M)), 6.2x (4:3 / 3M (S))
	Intelligent Zoom	6.2x
	Lens	LEICA DC VARIO-SUMMILUX/11 elements in 8 groups/(5 Aspherical Lenses / 8 Aspherical Surfaces / 2 Dual-sided Aspherical Surface ED Lenses)
	Optical Image Stabilizer	POWER O.I.S.
	Digital Zoom	Max. 4x (When Digital Zoom is used simultaneously with Intelligent Zoom, you can only increase the zoom ratio up to 2x.)
	Conversion Lens Compatibility	-
Focus	Focusing Area	Normal: 50 cm - infinity/AF Macro / MF / Intelligent Auto / Motion Picture: Wide 3 cm - infinity / Tele 30 cm - infinity
	AF Assist Lamp	Yes (On / Off)
	Focus	AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF/Normal / AF Macro, Quick AF On / Off (on in Intelligent Auto), Low Light AF, AF/AE Lock Button, AF Area Select, AF Tracking, Eye Sensor AF, Focus Peaking, One Shot AF (Set the Fn button in custom menu to AF-ON)
	AF Metering	Face/Eye Detection / Tracking / 49-area / Custom Multi / 1-area (flexible / scalable) / Pinpoint
Finder	Viewfinder	0.38" LVF (Live View Finder) (2764k dots equivalent), Field of View: Approx. 100%/Magnification: Approx. 1.39x / 0.7x (35mm equiv.), Eye Sensor
Shutter	Shutter Speed	Still Image:/Approx. 60 - 1/4,000 sec (Mechanical Shutter)/Approx. 1 - 1/16,000 sec (Electronic Shutter)/Time (Approx. 120 sec)/Motion Picture:/Approx. 1/25 - 1/16,000 sec/Approx. 1/2 - 1/16,000 sec (M Mode / MF Mode)
File	File Format	Still Image: JPEG (DCF/Exif2.3) / RAW, DPOF/Motion Picture: AVCHD, MP4
Recording Modes	Filter (Creative Control)	Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome, Rough Monochrome, Silky Monochrome, Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Soft Focus, Fantasy, Star Filter, One Point Color, Sunshine (22 filters)
	Still Image Scene Mode / Scene Guide	(Panorama mode can be selected in drive mode.)
	Mode Dial / Mode Button	Intelligent Auto (by iA Button)/P, A, S, M (by Aperture Ring and Shutter Speed Dial)
	4K Photo Mode	Yes (4:3 / 3:2 / 16:9 / 1:1 are selectable)
	Continuous Shooting Mode (Approx.)	[AFS] SH: 40 frames/sec, H: 11 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)/[AFC] H: 6.5 frames/sec, M: 6.5 frames/sec (with Live View), L: 2 frames/sec (with Live View)/ Electronic shutter only.
Motion Picture Recording (*2)	4K Video	3840 x 2160 pixels, 25p (4K: 100Mbps / MP4) (Sensor Output is 25fps) (AAC)/3840 x 2160 pixels, 24p (4K: 100Mbps / MP4) (Sensor Output is 24fps) (AAC)
	HD Video	1920 x 1080 pixels, 50p (FHD: 28Mbps / AVCHD) (Sensor Output is 50fps) (Dolby)/1920 x 1080 pixels, 24p (FHD: 24Mbps / AVCHD) (Sensor Output is 24fps) (Dolby)/1920 x 1080 pixels, 25p (FHD: 24Mbps / AVCHD) (Sensor Output is 25fps) (Dolby)/1920 x 1080 pixels, 50i (FHD: 17Mbps / AVCHD) (Sensor Output is 50fps) (Dolby)/1920 x 1080 pixels, 50p (FHD: 28Mbps / MP4) (Sensor Output is 50fps) (AAC)/1920 x 1080 pixels, 25p (FHD: 20Mbps / MP4) (Sensor Output is 25fps) (AAC)/1280 x 720 pixels, 25p (HD: 10Mbps / MP4) (Sensor Output is 25fps) (AAC)
	STD Video	640 x 480, 25p (VGA: 4Mbps / MP4) (Sensor Output is 25fps) (AAC)
	High Speed Video	-
Continuous recordable time (motion pictures)	AVCHD	Approx. 120 min (FHD/50p), Approx. 125 min (FHD/50i)
Continuous recordable time (motion pictures)	MP4	Approx. 90 min (4K/25p), Approx. 120 min (FHD/50p)
Actual recordable time (motion pictures)	AVCHD	Approx. 60 min (FHD/50p), Approx. 60 min (FHD/50i)
Actual recordable time (motion pictures)	MP4	Approx. 45 min (4K/25p), Approx. 60 min (FHD/50p)
Exposure Parameters	Exposure	Program AE, Aperture Priority AE, Shutter Priority AE, Manual
	Exposure Compensation	1/3 EV step, +/-3 EV
	Auto (AE) Bracketing	3, 5, 7 frames in 1/3, 2/3 or 1 EV Step, Max. +/-3 EV
	Light Metering	Intelligent Multiple / Center Weighted / Spot
	ISO Sensitivity	Auto / i.ISO / 100 (Extended ISO) / 200 / 400 / 800 / 1600 / 3200/ 6400 / 12800 / 25600/(Changeable to 1/3 EV step)
Picture Quality	Picture Adjustment	Contrast, Sharpness, Noise Reduction, Saturation, Color Tone, Filter Effect/ Except for Monochrome mode. ** For Monochrome mode only.
	Photo Style	Standard, Vivid, Natural, Monochrome, Scenery, Portrait, Custom
	Image Quality	RAW / RAW+Fine / RAW+Standard / Fine / Standard
	Still Picture Recording	[4:3] 4112x3088 (12.5M) (L) / 2976x2232 (6.5M) (M) / 2048x1536 (3M) (S)/[3:2] 4272x2856 (12M) (L) / 3120x2086 (6.5M) (M) / 2112x1408 (3M) (S)/[16:9] 4480x2520 (11M) (L) / 3840x2160 (8M) (M) / 1920x1080 (2M) (S)/[1:1] 3088x3088 (10M) (L) / 2240x2240 (5M) (M) / 1536x1536 (2.5M) (S)
	White Balance	Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set1 / White Set2 / White Set3 / White Set4 / Color Temperature/(2-axis Adjustable)
Other	Digital Red Eye Correction (Red-Eye Removal)	Yes (On / Off)
	GPS	-
	Wi-FI	IEEE 802.11b/g/n/2412 MHz - 2462 MHz (1-11 ch)/WPA / WPA2/Infrastracture Mode / WPS / Wi-Fi Direct/Wi-Fi Button
	NFC	ISO/IEC 18092, NFC-F (Passive Mode)
	Zoom in Motion Picture	Yes
	Self Timer	2 sec / 10 sec / 10 sec (3 images)
	Self Shot Mode	-
Display	Playback Mode	All, Slideshow, Filtering Play (Picture Only, Video Only, Category Selection, Favorite), Calendar
	Thumbnails / Zoomed Playback	12,30-thumbnails / Yes
	Calendar Display / Dual- Image Playback	Yes / No
	Set Favorites / Rotate Image	Yes / Yes
	Show Histogram	Yes
	Show Highlights	Yes
	DPOF Print Setting / Set Protection	Yes / Yes
Edit	RAW Processing	Yes
	Retouch	No
	Resize / Cropping / Aspect Conv. / Leveling	Yes / Yes / No / No
	Copy / Title Edit / Text Stamp	No / Yes / Yes
	Cut Animation	Yes
	Video Divide	Yes
	PictBridge Support	Single / Multi / All / DPOF / Favorites
Setup	OSD language	Japanese, English, German, French, Italian, Spanish
Monitor	Rear Monitor	7.5cm (3.0") TFT Screen LCD Display (921k dots), AR Coating/Field of View: Approx. 100%, Wide Viewing-angle
Flash	Flash (Bundled)	GN7 ISO100・m / GN10 ISO200・m/Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off * For iA mode only./Flash Synchro: 1st / 2nd Slow Sync./Synchronization for flash dimming and exposure compensation/0.6 - 14.1m (Wide / ISO Auto), 0.3 - 8.5m (Tele / ISO Auto)
Media	Recording Media	SD Memory Card, SDHC Memory Card, SDXC Memory Card/(Compatible with UHS-I UHS Speed Class 3 standard SDHC / SDXC Memory Cards)
Media	Built- in- Memory	-
Audio	Microphone / Speaker	Stereo / Mono
Interface	Remote Input	-
	External Microphone Input	-
	Interface	microHDMI, AV Output (PAL / NTSC), USB (AV/USB Multi)
Power	Power	Li-ion Battery Pack (7.2V, 1025mAh, 7.4 Wh) (Included)/AC Adaptor (Input: 110 - 240V AC)
Power	Battery life (approx.)	350 pictures (rear monitor) / 320 pictures (LVF) (when not using flash), 300 pictures (rear monitor) / 270 pictures (LVF) (when using flash, CIPA Standard)*1
Standard Package	Included Software	PHOTOfunSTUDIO 9.6PE/SILKYPIX Developer Studio/LoiLoScope (trial version)/Adobe Reader
Standard Package	Standard Accessories	Battery Charger, Battery Pack, AC Cable, USB Cable, Lens Cap, Lens Cap String, Hot Shoe Cover, External Flash, Flash Storage Bag, Shoulder Strap, DVD
NOTE		*1
NOTE		Recording conditions by CIPA standard
NOTE		- Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when LCD monitor is on.
NOTE		- Using a Panasonic SDHC Memory Card
NOTE		- Using the supplied battery.
NOTE		- Starting recording 30 seconds after the camera is turned on. (When the optical image stabilizer function is set to [ON].)
NOTE		- Recording once every 30 seconds with full flash every second recording.
NOTE		- Rotating the zoom lever from Tele to Wide or vice versa in every recording.
NOTE		- The number of recordable pictures varies depending on the recording interval time.
NOTE		- If the recording interval time becomes longer, the number of recordable pictures decreases.
NOTE		- CIPA is an abbreviation of [Camera & Imaging Products Association].
NOTE		*2
NOTE		- These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH.
NOTE		- The time available for recording varies depending on the environment, the interval between recordings, and the manner of use.
NOTE		- Actual recordable time is the time available for recording when repeating actions such as switching the power supply [ON] / [OFF], starting/stopping recording, zoom operation etc.
NOTE		- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures.
NOTE		- Use a card with SD Speed Class with "UHS-I Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K].
NOTE		(SD speed class is the speed standard regarding continuous writing.)
NOTE		- Maximum time to record motion pictures continuously with [AVCHD] is 29 minutes 59 seconds.
NOTE		- Maximum time to record motion pictures continuously with [MP4] in [4K] is 15 minutes.
NOTE		- Maximum time to record motion pictures continuously with [MP4] in [FHD] [HD] [VGA] is 29 minutes 59 seconds or up to 4 GB.
