Pentax KP Review

March 16, 2017 | Mark Goldstein | Rating star Rating star Rating star Rating star Half rating star

Introduction

The Pentax KP is a new APS-C DSLR camera that inherits many of the key features of the range-topping K-1 camera. The KP has a high-sensitivity 24.32-megapixel sensor, ISO range of 100-819,200, 5-axis "Shake Reduction II" image stabilisation system, Pixel Shift Resolution technology which delivers super-high-resolution images with more accurate colour reproduction, finer detail and less noise, the latest PRIME IV imaging engine, 86,000-pixel RGB light-metering sensor, a tiltable 3" LCD screen with a resolution of 921K dots, and a pentaprism finder with 100% frame coverage and 0.95x magnification. The Pentax KP also features integrated Wi-Fi, 27-point AF system with 25 cross-type focus points, Full HD 1080p video at 60fps, a mechanical shutter with a maximum shutter speed of 1/6000s and an electronic shutter with a top shutter speed of 1/24000s, and 7fps continuous shooting. The Pentax KP is available in black for £1,099.99/$1,099.95 body-only.

Ease of Use

The Pentax KP is outwardly quite similar to the flagship K-1 camera, but it's both smaller - 101(H) x 131(W) x 76(D) - and much lighter, weighing in at 730g without the battery or memory card fitted, some 300g less than the K-1.

The KP's front, back and bottom exterior panels are all made of durable, lightweight magnesium alloy. The KP is dust, cold and water resistant, thanks to a system of 67 special seals used throughout the design, and it can operate at temperatures as low as -10°C. This shows itself most obviously via the battery compartment and the memory card slot.

The KP features both a mechanical shutter unit which provides a fast top shutter speed of 1/6000th second and an electronic shutter with a top shutter speed of 1/24000s. Rather than an optical anti-aliasing filter in the camera, the KP has an innovative anti-aliasing simulator instead, which can be turned off (default setting) or on to either the Type1 or Type2 setting, which adjusts the level of the effect.

Innovatively, the camera ships with three different sized handgrips that can be easily changed with the supplied allen key, with small, medium and large sizes supplied, all coated in a rubberized compound to aid grip. There is a generous contoured area on the rear where your right thumb sits, with the rest of the body finished in a textured matt black.

On the front of the Pentax KP is a RAW / Fx1 button, which instantly sets the image quality to whichever RAW format is selected in the menu system (either Pentax's PEF format or Adobe DNG), useful if you are shooting in JPEG and want to quickly switch to RAW mode for a particular image. This button can also be customised to optionally control either Exposure Bracketing, Digital Preview, Electronic Level or Composition Adjustment. Located underneath is the Autofocus Mode button, with three available modes (AF-S, AF-A and AF-C), and underneath a switch for changing between manual and auto focusing. Above is a small button for opening the pop-up flash, which extends quite high above the lens to help minimise red-eye.

Connecting to the Pentax KP’s built-in Wi-Fi is done through the main menu. Once you have the dedicated Image Sync app installed on your device and you’re connected, you can shoot remotely, and very pleasingly, you have pretty much complete control over the camera’s shooting capability. So, you can change aperture, ISO, shutter speed and more - the only thing you won’t be able to change is the focal length of the lens. On the whole it’s a great app to use, and other manufacturers could look to this app for inspiration on how to produce a genuinely useful smartphone remote control app. The other option you have is to download images taken on the camera across to your smartphone or tablet for quick sharing to social networks or email. There's also a special built-in Astrotracer function which calculates the earth's rotation to help ensure that stars are captured without streaking.

Pentax KP

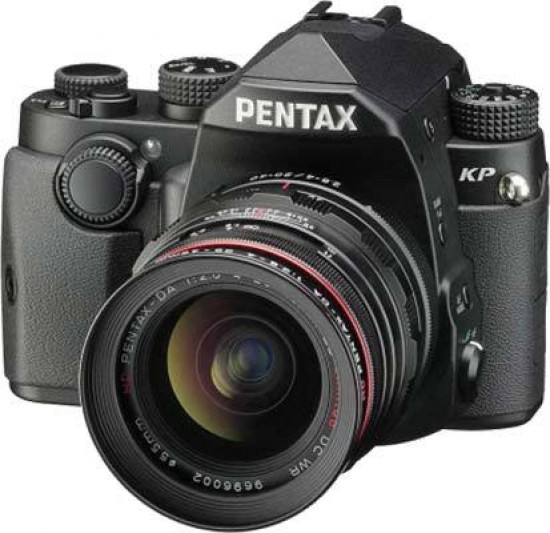

Front of the Pentax KP

Using the in-body SR (shake reduction) mechanism, Pixel Shift Resolution works by shifting the image sensor by a single pixel in four different directions and merging four shots together, so that each photosite on the sensor captures red, green and blue from the colour filter array, rather than just a single colour as on a Bayer sensor. Pentax claims that this creates "super high-definition images" with more accurate colour reproduction, finer detail, elimination of false color aliasing and less noise. Images taken with the Pixel Shift Resolution function turned on can be processed on the camera and also developed using the included utility software. Note that you should use a tripod or other support when using this feature, plus one of the Self-timer, Remote Control, or Mirror Lock-up functions, although it can now be used more effectively for moving subjects thanks to the new Motion Correction function.

Diffraction Correction claims to make all your lenses better by reducing the effects of diffraction by around two f-stops. Depending on the quality of the lens, diffraction is commonly seen at f/16-f/22, so Diffraction Correction promises to make an image captured at f/22 look more like one captured at f/11 in terms of definition and sharpness.

On the bottom of the KP is the weather-sealed battery compartment, housing a rechargeable 105mAh D-LI109 lithium-ion battery. The KP managed around 400 shots using the supplied rechargeable Li-ion battery before being depleted. There's also a metal tripod mount that's perfectly in-line with the centre of the lens mount.

On the right-hand side of the KP is a weather-sealed SD / SDHC / SDXC dual memory card compartment that's compatible with SDXC UHS-1 speed cards. Located above is the USB 3.0 connector. On the left-hand side are two rubber flaps covering the shared remote/mic port and DC In connector. Note that the Pentax KP does not have an HDMI port, which has been removed - instead you need to buy a proprietary dongle.

The Pentax KP follows conventional DSLR design in having a shooting mode dial on the top-left of the camera, which allows you to select either one of the advanced mode like Aperture-priority, Shutter-Priority and Manual, or the more point-and-shoot Auto and Program modes. There are no scene modes on this camera, signaling its intent as a serious photographic tool.

Pentax KP
Rear of the Pentax KP

You'll instantly notice that the KP has a couple of unusual shooting modes that you won't have seen before on any other camera. These are the Sensitivity-Priority and Shutter & Aperture-Priority modes. Sensitivity-Priority automatically selects the best combination of aperture and shutter speed for your chosen ISO speed. The sensitivity can be shifted instantly (in 1/2 or 1/3 steps) by turning the rear control dial. This allows you to quickly select an ISO speed, without having to access the menu system, which is very useful in rapidly changing light conditions.

In the Shutter & Aperture-Priority mode the camera selects the most appropriate ISO speed for a shutter speed and aperture combination, allowing you to use ISO sensitivity as a third factor in determining the correct exposure. As digital cameras have always offered the unique ability to instantly change the sensitivity, it's surprising that Pentax are still the only manufacturer to allow you to use ISO in this way. Also commendable is the provision of no less than 5 custom shooting modes. In the middle of the shooting mode dial is a button which locks and unlocks the dial.

On the right-hand side of the top of the KP is the small shutter button, surrounded by the on/off switch. Located in front of the shutter button is one of the e-dials, predominately used to change the shutter speed, while to the right of it is the Exposure Compensation / FX3 button.

New to the KP is the Smart Function camera operation system, which is controlled via two dials. The first is marked with 7 different options ranging from AE metering to three Custom settings, while the second unmarked dial enables you to quickly set the chosen function. While this new system does group together the camera's key settings in one place, it does so at the expense of a traditional top LCD panel.

At the base of the first Smart Function dial is a switch for choosing between the optical viewfinder, Live View Stills, and Live View Movies. You can use the Live View mode to hold the KP at arm's length or mount the camera on a tripod. Focusing is achieved by pressing the small AF/AE-L button on the rear of the camera or by half-pressing the shutter-button. Alternatively you can use manual focus in Live View mode, with up to 10x magnification available via the OK button to help you fine-tune the focus (you can also use the OK button to magnify the subject by up to 10x when Auto Focus is on).

Pentax KP
Tilting LCD Screen

Most of the main camera settings are displayed in Live View, including a helpful electronic level that helps to keep your horizons straight, although a histogram is still conspicuous by its absence. You can change the aperture, shutter speed, exposure compensation, ISO speed and a number of other settings when Live View is activated. Live View is fine for use with stationary subjects, but less useful if you want to track a moving subject, as the AF system in Live View mode takes a second or so to lock onto the subject, making it better suited to subjects that don't move.

The Pentax KP has a traditional eye-level optical TTL viewfinder which offers an impressive 100% scene coverage and 0.95x magnification. Being able to see exactly what will be captured means that you can only blame yourself for poor composition and unwanted details creeping into the frame. The viewfinder is bright and free of any distortions or aberrations, making it suitable for both auto and manual focusing. It also features a Natural-Bright-Matte III focusing screen to improve focusing accuracy during manual-focus operation. An in-finder status LCD runs horizontally along the bottom and shows most of the camera's key settings.

On the rear of the KP is a tiltable 3 inch LCD screen with a respectable resolution of 921K dots. The brightness, saturation and colour temperature of the screen can be modified if you think it doesn't match that of your calibrated computer monitor. The KP's monitor can usefully be tilted up and down to almost 90-degrees for waist-level photography, although not out to the side as well.

The rear screen also doubles as a comprehensive status display, which can be called up by pressing the OK or Info buttons in record mode. If you then press the Info button again, you can also change all the settings right on the screen using a combination of the navigation pad and the rear e-dial. This ingenious solution spares you the pain of having to enter the menu, and makes most setting changes via the LCD screen very simple.

Located above the LCD screen and to the left of the viewfinder is the shared Delete / FX2 button, with the latter by default toggling the electronic level on and off. On the other side is the rear e-dial, mainly used for changing the aperture and zooming in/out during playback, and the shared the AF/AE-L button, which can either be used instead of half-pressing the shutter button to set autofocus, or for quickly locking the exposure.

Pentax KP
Top of the Pentax KP

Underneath is a rather innocuous looking button with a small green dot that's unique to Pentax DSLRs. It has two uses - firstly, when shooting in Manual mode, a single push of the green button allows you to instantly set the correct exposure for the subject, as calculated by the camera, useful if you need a starting point for your own exposure. Secondly, the KP offers a Hyper Program function which instantly switches to either the Shutter-Priority or Aperture-Priority mode from the Program mode, simply by turning either of the control dials on the grip. Pressing the Green button then returns to the Program mode.

The KP can record 1080 HD footage, recording high-definition video at 1920 x 1280 pixels at 60i/50i/30p/25p/24p or 1280 x 720 pixels at 60p/50p/30p/25p/24p in the Motion JPEG (MOV) format. An innovative interval movie mode captures a series of 4K-resolution movie clips (3840 x 2160 pixels) at a fixed interval. The maximum size of a single video clip is either 4 gigabytes or 25 minutes. There's a built-in microphone for stereo recording and a socket for connecting an external stereo microphone.

Importantly you can autofocus during movie recording, bringing the KP in-line with its main rivals. Unfortunately you still can't set the aperture from the camera during recording, only before, so you will want to use lenses that have an aperture ring if possible. The KP can be set to Auto Aperture Control, which removes the flexibility of being able to set the aperture yourself but at least enables the camera to change it during recording to suit the subject matter. The shutter speed cannot be set by the user in movie mode either, so you will have to rely on the camera's auto-exposure system while filming.

A traditional 4-way navigation pad is split into separate buttons, providing instant access to the ISO speed, drive mode/self-timer, white balance and flash settings, with the OK button confirming actions. The Menu button underneath accesses the main menu system, which has a fairly logical tabbed system with five main tabs, Camera, Movie, Playback, Set-Up and Custom Setting, each divided into several sub-pages, and it's easily readable with a bright display and a large font size making it perfectly visible even in low light.

The Pentax KP features an improved built-in Shake Reduction system. Turn it on via the main menu option and the KP automatically compensates for camera shake, which is a slight blurring of the image that typically occurs at slow shutter speeds, now providing approximately 5 shutter stops of compensation thanks to a new 5-axis gyro-sensor. As this system is built-into the camera body, it works with almost any lens that you attach to the KP, providing a significant cost advantage over DSLRs from Canon and Nikon, which use a lens-based image stabilisation system (compatible lenses are the PENTAX K-, KA-, KAF-, KAF2- and KAF3-mount lenses; screw-mounted lenses (with an adapter); and 645- and 67-system lenses (with an adapter)). The KP displays a blur icon in the viewfinder to warn you that camera-shake may occur, regardless of whether or not Shake Reduction is on.

Pentax KP
The Pentax KP In-hand

If you've had a bad experience with DSLRs and dust in the past, the KP offers the Dust Removal II mechanism. This automatically shifts the low-pass filter located in front of the CMOS image sensor at very high speed, shaking the dust off the low-pass filter. If you do still notice any dust, there's a neat feature called Dust Alert which is designed to show exactly where the dust is on the image sensor. A vertically and laterally correct image of the sensor shot at f/16 is shown on the LCD screen, indicate exactly where any stubborn dust particles may be lurking. While this feature won't prevent dust from getting onto the sensor, it does provide a quick and easy way of checking for it. In addition Dust Removal can be set to activate whenever the camera is turned on, and you can also use the built-in Sensor Cleaning function to lift the mirror and clean the image sensor with a blower brush or third-party cleaning solution.

The Pentax KP's High Dynamic Range (HDR) Capture option takes three images with different exposures, with 3 different strengths on offer, and then records a single image that combines the properly exposed parts of each one, expanding its dynamic range. It's important to always use a tripod to prevent camera shake from blurring the HDR image, and it doesn't work very well for moving subjects. Similar to Nikon's D-lighting, Sony's DRO, and Olympus' Shadow Adjustment Technology, Pentax's D-Range allows you to correct the highlights (On or Off) and/or the shadows (3 different levels) before taking a JPEG or RAW image. Although this option is always at your disposal, remember that it is meant to be used in strong, contrasty lighting at base ISO. The Pentax KP also has a multi-exposure mode that allows you to combine between two and 2,000(!) different JPEG or RAW images into a single photo and a Cross Processing mode with four built-in effects and custom options that replicates the traditional effect of cross-processing film.

Pentax's Custom Images, similar to Nikon's Picture Styles and Canon's Picture Controls, are preset combinations of different sharpness, contrast, saturation and colour tone settings. You can change the saturation, hue, high/low key, contrast and sharpness for each of the ten options”. The Pentax KP additionally offers nine different Digital Filters, which allow you to quickly apply an artistic effect to a photo before taking it (JPEG images only). Note that applying the Digital Filters slows the camera down somewhat, as it has to process the image for a few seconds after it's taken. The KP can also be set to automatically compensate for both distortion and lateral chromatic aberration of any DA- and DFA-series lenses.

The rather innocuous-sounding AF Fine Adjustment custom function will be of particular interest to current Pentax owners. If you have a collection of older Pentax lenses and you've never been quite sure how accurate they focus when mounted on a DSLR, this is the function for you. Essentially it allows you to alter the focus of each lens. You can use a focusing target to test if the lens focuses correctly, and if it doesn't alter it slightly using the AF Fine Adjustment option, then test again until perfect focus is achieved. With most other DSLR systems you'd have to send the camera and lens off for calibration (and maybe even have to pay for it), but with the KP, you can calibrate all of your lenses in the comfort of your own home.

The start-up time of the Pentax KP, from turning the camera on to being ready to take a photo, is very quick for at around 1 second. Focusing is snappy even in low-light thanks to the high-speed SAFOX 11 phase-matching AF sensor module, which has 25 cross-type sensors positioned in the middle and is able to focus on a subject in a minimum brightness level as low as -3 EV. It takes about 1 second to store a JPEG image at the highest quality setting with no discernible lockup between taking shots, allowing you to keep shooting as they are being recorded onto the memory card. For RAW images the Pentax KP takes about 2 seconds to store an image and again there is no lockup between shots. In the continuous shooting mode you can hold down the shutter button and take 7 shots per second for up to 28 JPEGs or 8 RAW files, or 3fps for up to 70 JPEGs or 15 RAW files. The KP does lock up for a few seconds once the maximum number of shots is reached, although you can continue to shoot continuously, just at a much slower rate.

Image Quality

All of the sample images in this review were taken using the 24 megapixel Best JPEG setting, which gives an average image size of around 11Mb.

The Pentax KP produced photos of excellent quality. Noise is well controlled by the Pentax KP, first starting to appear at ISO 3200 and becoming more easily detectable at the faster settings of ISO 6400-25600 when viewing images at 100% magnification on screen (particularly in the RAW files). The fastest settings of 51200-819200 look much better on paper than in reality. Colour saturation is commendably maintained throughout the ISO range.

Image stabilisation via the camera body is a great feature that works very well when hand-holding the camera in low-light conditions or when using the telephoto end of the zoom range. An added bonus is that it works with any lens that you attach to the Pentax KP. The night photograph was excellent, with the maximum shutter speed of 30 seconds and Bulb mode allowing you to capture enough light in all situations.

The Digital Filters quickly produce special effects that would otherwise require you to spend a lot of time in the digital darkroom, while the Custom Images can usefully be tweaked to suit. The D-Range options help make the most out of both the shadows and highlights in a high-contrast scene (and it works for both JPEG and RAW files), while the HDR mode greatly expands the dynamic range of a JPEG by combining three differently exposed images in-camera.

The multi exposure mode combines between two and 2,000 different JPEG or RAW images into a single photo, while the anti-aliasing simulator helps to reduce moire without the need for an actual optical filter. Pixel Shift Resolution is an effective technology that creates finer detail and generates more accurate colours, even if the subject moves or the camera shakes slightly.

Noise

There are 12 ISO settings available on the Pentax KP. Here are some 100% crops which show the noise levels for each ISO setting, with JPEG on the left and the RAW equivalent on the right:

JPEG

RAW

ISO 100 (100% Crop)

ISO 100 (100% Crop)

iso100.jpg iso100raw.jpg


ISO 200 (100% Crop)

ISO 200 (100% Crop)

iso200.jpg iso200raw.jpg


ISO 400 (100% Crop)

ISO 400 (100% Crop)

iso400.jpg iso400raw.jpg


ISO 800 (100% Crop)

ISO 800 (100% Crop)

iso800.jpg iso800raw.jpg


ISO 1600 (100% Crop)

ISO 1600 (100% Crop)

iso1600.jpg iso1600raw.jpg


ISO 3200 (100% Crop)

ISO 3200 (100% Crop)

iso3200.jpg iso3200raw.jpg


ISO 6400 (100% Crop)

ISO 6400 (100% Crop)

iso6400.jpg iso6400raw.jpg


ISO 12800 (100% Crop)

ISO 12800 (100% Crop)

iso12800.jpg iso12800raw.jpg


ISO 25600 (100% Crop)

ISO 25600 (100% Crop)

iso25600.jpg iso25600raw.jpg


ISO 51200 (100% Crop)

ISO 51200 (100% Crop)

iso51200.jpg iso51200raw.jpg


ISO 102400 (100% Crop)

ISO102400 (100% Crop)

iso102400.jpg iso102400raw.jpg


ISO 204800 (100% Crop)

ISO 204800 (100% Crop)

iso204800.jpg iso204800raw.jpg


ISO 409600 (100% Crop)

ISO 409600 (100% Crop)

iso409600.jpg iso409600raw.jpg


ISO 819200 (100% Crop)

ISO 819200 (100% Crop)

iso819200.jpg iso819200raw.jpg


File Quality

The Pentax KP has 3 different JPEG file quality settings available, with Best being the highest quality option, and it also supports RAW (Pentax's PEF format and Adobe DNG). Here are some 100% crops which show the quality of the various options, with the file size shown in brackets.

Best (12.5Mb) (100% Crop)

Better (5.69Mb) (100% Crop)

quality_best.jpg quality_better.jpg


Good (2.8Mb) (100% Crop)

RAW (29.8Mb) (100% Crop)

quality_good.jpg quality_raw.jpg

Night

The Pentax KP lets you dial in shutter speeds of up to 30 seconds and has a Bulb mode as well, which is very good news if you are seriously interested in night photography. The shot below was taken using a shutter speed of 30 seconds at ISO 100.

Night


Flash

The flash settings on the Pentax KP are Auto Flash Discharge (Scene Analyze Auto), Auto Flash + Red-eye Reduction (Scene Analyze Auto) Flash On, Flash On+ Red-eye Reduction, Slow-speed Sync, Trailing Curtain Sync, Manual Flash Discharge (Full-1/128), Wireless (Controller). These shots of a white coloured wall were taken at a distance of 1.5m.

Flash Off - Wide Angle

ISO 64


Flash On - Wide Angle

ISO 64


Flash Off - Telephoto

ISO 64


Flash On - Telephoto

ISO 64

And here are some portrait shots.

Flash On



Flash On - Red-eye Reduction


Shake Reduction

The Pentax KP has a Shake Reduction mechanism built into the camera body, which allows you to take sharp photos at slower shutter speeds than other digital cameras. To test this, we took 2 handheld shots of the same subject with the same settings. The first shot was taken with Shake Reduction turned off, the second with it turned on. Here is a 100% crop of the image to show the results. As you can see, with Shake Reduction turned on, the images are sharper than when it's turned off.

Shutter Speed / Focal Length

Shake Reduction Off (100% Crop)

Shake Reduction On (100% Crop)

1/6 / 28mm antishake1.jpg antishake1a.jpg

1/15 / 105mm antishake2.jpg antishake2a.jpg

D-Range

Similar to Nikon's D-lighting, Sony's DRO, and Olympus' Shadow Adjustment Technology, Pentax's D-Range allows you to correct the highlights (On or Off) and/or the shadows (3 different levels) before taking a JPEG or RAW image. Although this option is always at your disposal, remember that it is meant to be used in strong, contrasty lighting at base ISO. Below you can see a comparison between Off and both highlight and shadow correction set to on/full strength; the difference is mainly noticeable in the shadowed areas on the left and right sides of the photo.

Off

On

drange1.jpg drange2.jpg

HDR Capture

The Pentax KP's HDR Capture option takes three images with different exposures, and then records a single image that combines the properly exposed parts of each one, expanding its dynamic range. Here is an example which was shot with the five different modes (Off, 1, 2, 3 and Advanced). Although the KP can microalign images before combining them, allowing hand-held HDR shots to be taken, for best results it's important to always use a tripod to prevent camera shake from blurring the HDR image, and it doesn't work very well for moving subjects.

Off

HDR1
hdr_01.jpg hdr_02.jpg

HDR2 HDR3
hdr_03.jpg hdr_04.jpg

Advanced

AA Filter Simulator

Rather than an optical anti-aliasing filter in the camera, the KP has an anti-aliasing simulator instead, which can be turned off (default setting) or on to either the Type1 or Type2 setting.

Off

Off (100% Crop)

aa_filter_01.jpg aa_filter_01a.jpg


Type1

Type1 (100% Crop)

aa_filter_02.jpg aa_filter_02a.jpg


Type2

Type2 (100% Crop)

aa_filter_03.jpg aa_filter_03a.jpg

Custom Images

Pentax's Custom Images, similar to Nikon's Picture Styles and Canon's Picture Controls, are preset combinations of different sharpness, contrast, saturation and colour tone settings. You can change the saturation, hue, high/low key, contrast and sharpness for each of the seven options”. They are shown below in the following series, which demonstrates the differences.

Bright

Natural

custom_image_01.jpg custom_image_02.jpg


Portrait

Landscape

custom_image_03.jpg custom_image_04.jpg


Vibrant

Radiant

custom_image_05.jpg custom_image_06.jpg


Muted

Flat
custom_image_07.jpg custom_image_08.jpg


Bleach Bypass

Reversal Film

custom_image_09.jpg custom_image_10.jpg


Monochrome

Cross Processing

custom_image_11.jpg custom_image_12.jpg

Digital Filters

The Pentax KP offers nine different Digital Filters, which allow you to quickly apply an artistic effect to a photo before taking it (JPEG images only). They are shown below in the following series, which demonstrates the differences. Note that applying the Digital Filters slows the camera down somewhat, as it has to process the image for a few seconds after it's taken.

Extract Color

Replace Color

digital_filter_01.jpg digital_filter_02.jpg


Toy Camera

Retro

digital_filter_03.jpg digital_filter_04.jpg


High Contrast

Shading

digital_filter_05.jpg digital_filter_06.jpg


Invert Color

Unicolor Bold

digital_filter_07.jpg digital_filter_08.jpg

Bold Monochrome

Multi-exposure

The Pentax KP has a fantastic multi-exposure mode that allows you to combine between two and 2,000 (!) different JPEG or RAW images into a single photo. Here is an example.

Multi-exposure


Pixel Shift Resolution

The in-body SR (shake reduction) mechanism is used to move the image sensor unit by a single pixel pitch at a time to capture four shots. Pixel Shift Resolution merges those shots into a single image to generate an ultra high-definition image. This method differs from the traditional Bayer method, which acquires only a single element of color information for single pixel, by acquiring all RGB color information for individual pixel. This difference makes it excellent for detail and color reproduction, creating super high-definition images. This also prevents false colors from occurring theoretically, and also has a high-sensitivity noise reduction effect when compared to normal shooting.

Off

Motion Correction On

pixel_shift1.jpg pixel_shift2.jpg

Motion Correction Off

Sample Images

This is a selection of sample images from the Pentax KP camera, which were all taken using the 24 megapixel Best JPEG setting. The thumbnails below link to the full-sized versions, which have not been altered in any way.

Sample RAW Images

The Pentax KP enables users to capture RAW and JPEG format files in either the PEF or DNG formats. We've provided some Pentax RAW (DNG) samples for you to download (thumbnail images shown below are not 100% representative).

Sample Movie & Video

This is a sample movie at the highest quality setting of 1920x1080 pixels at 30 frames per second. Please note that this 25 second movie is 70Mb in size.

Product Images

Pentax KP

Front of the Pentax KP


Pentax KP

Front of the Pentax KP


Pentax KP

Front of the Pentax KP / Flash Raised


Pentax KP

Side of the Pentax KP


Pentax KP

Side of the Pentax KP


Pentax KP

Side of the Pentax KP


Pentax KP

Side of the Pentax KP


Pentax KP

Rear of the Pentax KP


Pentax KP

Rear of the Pentax KP / Image Displayed



Pentax KP

Rear of the Pentax KP / Info Screen


Pentax KP

Rear of the Pentax KP / Info Screen


Pentax KP

Rear of the Pentax KP / Main Menu


Pentax KP

Rear of the Pentax KP / Live View


Pentax KP

Rear of the Pentax KP / Movie View


Pentax KP

Rear of the Pentax KP / Tilting LCD Screen


Pentax KP

Rear of the Pentax KP / Tilting LCD Screen


Pentax KP

Rear of the Pentax KP / Tilting LCD Screen


Pentax KP

Rear of the Pentax KP / Tilting LCD Screen


Pentax KP
Top of the Pentax KP

Pentax KP
Bottom of the Pentax KP

Pentax KP

Side of the Pentax KP


Pentax KP

Side of the Pentax KP


Pentax KP

Front of the Pentax KP


Pentax KP

Front of the Pentax KP


Pentax KP

Memory Card Slot


Pentax KP

Battery Compartment

Conclusion

Coming on like a K-1 that's been shrunk in the wash, the Pentax KP inherits lots of its big brother's key features in a smaller, lighter and cheaper package. We particularly like the easily removable hand-grip, especially as the three different sizes are all included in the box - why has no-one thought of this before? Crucially the KP doesn't skimp on image quality, either, although the headline-grabbing top ISO speed 819,200 proves to be more than a little ambitious.

In terms of other negative points, the battery life isn't the greatest, especially compared to the K-3 II model that this new camera effectively replaces, live view is still a pain to use for moving subjects, it's a shame that the LCD screen doesn't tilt to the side, there's no 4K video or even an HDMI port (!), and the buffer depth for the 7fps burst shooting is too small if you want to shoot Raw files.

All in all, though, Pentax continue to think outside of the box with the new KP, resulting in a very small and very customisable camera that delivers a lot of performance and image quality. Highly recommended!

4.5 stars

Ratings (out of 5)
Design 5
Features 4.5
Ease-of-use 4.5
Image quality 4.5
Value for money 4.5

Main Rivals

Listed below are some of the rivals of the Pentax KP.

Canon EOS 7D Mark II

The long-awaited Canon EOS 7D Mark II DSLR has finally arrived, boasting improvements to virtually every aspect of its popular predecessor, the 5-year-old 7D. Can an APS-C sensor DSLR camera still compete in the fast-changing photography market? Read our detailed Canon EOS 7D Mark II review to find out...

Fujifilm X-T2

The Fujifilm X-T2 is a new compact system camera that builds on the success of the popular 2-year-old X-T1, most notably by adding 4K video recording, a more sophisticated auto-focusing system, and a wealth of other improvements. Read our in-depth Fujifilm X-T2 review to find out if it's worth the upgrade...

Nikon D7200

The D7200 is a new prosumer DSLR camera from Nikon, succeeding the D7100 model from 2013. The weather-proof D7200 features a 24 megapixel DX image sensor, Multi-CAM 3500-II 51-point autofocusing system, wi-fi and NFC connectivity, 6fps burst shooting and a high-resolution 3.2 inch LCD screen. Read our detailed Nikon D7200 review to find out if it's the right DSLR camera for you...

Olympus PEN-F

The new Olympus PEN-F is a new premium compact system camera boasting a gorgeous retro design and some pro-level features, including a new 20 megapixel sensor, 5-axis image stabilisation, 10fps burst shooting, vari-angle 3-inch LCD touchscreen, 4K time-lapse movies, an electronic shutter and built-in wi-fi. Priced at £999 / $1199 body-only, is the PEN-F all style and no substance? Read our in-depth Olympus PEN-F review to find out...

Panasonic Lumix DMC-GX8

The Panasonic Lumix DMC-GX8 is a new premium compact system camera aimed firmly at enthusiast photographers. With a new 20 megapixel Micro Four Thirds sensor, dual lens and in-body image stabilization, built-in tilting electronic OLED viewfinder, 3 inch free-angle OLED touchscreen, 4K video and photo modes, integrated wi-fi and NFC connectivity, and a weather-proof rangefinder-like design, can the Panasonic GX8 live up to its early promise? Read our in-depth Panasonic Lumix DMC-GX8 review complete with sample images, test shots, videos and more to find out...

Pentax K-1

The new K-1 is the long-awaited full-frame DSLR camera from Pentax, based around a 36.4 megapixel CMOS sensor. Is this the best ever Pentax DSLR? Read our in-depth Pentax K-1 review to find out...

Sony A6500

The Sony A6500 is the latest high-end compact system camera with an APS-C size sensor. With 24.2 megapixels, 4K movie recording, in-body 5-axis stabilization, a touchscreen 3-inch tilting LCD screen, 11fps burst shooting, electronic viewfinder and built-in flash, is the A6500 the best Sony APS-C camera yet? Read our Sony A6500 review to find out...

Review Roundup

Reviews of the Pentax KP from around the web.

ephotozine.com »

We review the new Pentax KP, the 24 megapixel DSLR from Pentax, with a number of unique features including pixel shift resolution, ultra high ISO of ISO819200, 5-axis image stabilisation and a removable grip.
Read the full review »

Specifications

Type
Camera Type

TTL autofocus, auto-exposure SLR digital-still camera

Sensor
Type

Primary color filter, CMOS

AA Filter Simulator: Moiré reduction using SR unit. OFF/Type1/Type2/Bracket

Size 23.5 x 15.6 (mm)
Total Pixels

Approx. 24.96 megapixels

Effective Pixels

Approx. 24.32 megapixels

Still

JPEG (Exif 2.3): L(24M: 6016x4000) M(14M:4608x3072) S(6M:3072x2048) XS(2M:1920x1280),

RAW (PEF/DNG): L(24M:6016x4000)

Movie

Full HD (1920x1080, 60i/50i/30p/25p/24p)

HD (1280x720, 60p/50p/30p/25p/24p)

Colour Depth 14bit
Sensitivity

ISO AUTO/100 to 819200 (EV steps can be set to 1EV, 1/2EV, or 1/3EV)

Shake Reduction

PENTAX-original SR II five-axis shake-reduction system (SR: Shake Reduction)

Sensor Cleaning

Image sensor cleaning using ultrasonic vibrations "DR II", Dust Alert function

Pixel Shift Resolution

Pixel Shift Resolution:
ON/OFF with Motion Correction ON/OFF

Features
  • Noise Reduction: Slow Shutter Speed NR, High-ISO NR
  • Horizon Correction: SR ON: Correction up to 1.0 degrees, SR OFF: Correction up to 1.5 degrees
  • Composition Adjustment: Adjustment range of ±1mm up, down, left or right ( ±0.5mm when rotated); Rotating range of  ±1 degree
Lens
Mount

PENTAX KAF2 bayonet mount (AF coupler, lens information contacts, K-mount with power contacts)

Usable lenses

KAF4, KAF3, KAF2 (power zoom compatible), KAF, KA mount lens

Focusing System
Type

Type TTL: phase-matching autofocus

Functions

Focus Sensor: SAFOX 11, 27 point (25 cross type focus points in the center)

Brightness Range: EV-3 to 18 (ISO 100 / at normal temperature)

AF mode: Single AF (AF.S), Continuous AF (AF.C), Auto select AF (AF.A)

AF Point Selection: Spot, Select, Expanded Area (S, M, L), Zone select, Auto (27 AF points)

AF assist

Dedicated LED AF assist light

Viewfinder
Type

Pentaprism Finder

Field of View

Approx. 100%

Magnification

Approx. 0.95x (50mm F1.4 at infinity)

Focusing screen

Interchangeable Natural-Bright-Matte III focusing screen

Indication

Eye-Relief Length: Approx. 20.5mm (from the view window), Approx 22.3mm (from the center of lens)

Electronic Level: Displayed in viewfinder : Horizontal direction only, Displayed on LCD monitor: Horizontal and vertical direction

Diopter adjustment

Approx. -2.5m to + 1.5m-1

Screen
Type

Tiltable Wide viewing angle TFT color LCD with AR coating, Air-gapless glass

Size: 3.0 inch (aspect ratio 3:2)

Resolution

Approx. 921K dots

Playback

Adjustment: Brightness, Saturation and Colors adjustable

Outdoor View Setting: Adjustable ±2 step

Night Vision LCD Display: ON/OFF

Liveview
LiveView

TTL method using image sensor

AF Method: Contrast detection
AF Mode: Single AF (AF.S), Continuous AF (AF.C)  *Continuous AF (AF.C) is available with the dedicated lens.
AF Active Area: Face detection, Tracking, Multiple AF points, Select, Spot
Focus Peaking: Highlight Edge/Extract Edge/OFF

Display: Field of View approx. 100%, Magnified view (up to 16x), Grid Display (4x4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White ), Histogram, Highlight Alert,  Composition Adjustment

Shutter
Type

Electronically controlled vertical-run focal plane shutter
* Electronic shutter when using Pixel Shift Resolution

Speed

1/6000 to 30 sec., Manual: 1/6000 to 30 sec. (1/3EV steps or 1/2EV steps), Bulb (Timed exposure setting possible from 10 sec. to 20min.)

Electronic shutter:  Auto:1/24000 to 30 sec., Manual: 1/24000 to 30 sec. (1/3EV steps or 1/2EV steps)

X-Synchronization

1/180sec.

Exposure system
Metering

TTL open aperture metering using 86K pixel RGB sensor, Multi-segment, center-weighted and spot metering

Exposure Modes

Scene Analyze Auto, Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb, USER1, USER2, USER3, USER4, USER5

Capture Settings

  • Custom Image: Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing
  • Cross Process:Random, Preset 1-3, Favorite 1-3
  • Clarity: Adjustable ±4 step
  • Skin Tone: Type1, Type2, OFF
  • HDR: Auto, HDR1, HDR2, HDR3, Advanced HDR, OFF,  Exposure bracket value adjustable, Automatic composition correction function
  • Lens Correction: Distortion Correction, Peripheral Illumin. Correction, Lateral Chromatic Aberration Correction, Diffraction Correction
  • D-RANGE Compensation: Highlight Correction, Shadow Correction
  • Program Line: AUTO, Normal, Hi-speed Priority, DOF Priority (Deep), DOF Priority (Shallow), MTF Priority
Metering Range

EV-3 to 20 (ISO100 at 50mm F1.4)

Auto Exposure Lock Can be assigned to the AF/AE-L button,Fx1 button,Fx2 button,Fx3 button
Compensation

±5EV (1/2EV steps or 1/3EV steps can be selected)

Auto Bracketing Bracketing (2, 3 or 5 frames), Depth of Field Bracketing (3frames), Motion Bracketing (3frames)

Flash
Type Built-in retractable P-TTL flash
Guide Number Approx. 6.0 (ISO100/m)
Modes

Auto Flash Discharge (Scene Analyze Auto), Auto Flash + Red-eye Reduction (Scene Analyze Auto) Flash On, Flash On+ Red-eye Reduction, Slow-speed Sync, Trailing Curtain Sync, Manual Flash Discharge (Full-1/128), Wireless (Controller)

Angle of View Coverage Angle of view of 28mm lens (35mm format equivalent)
Exposure Compensation

-2.0 to + 1.0EV

Exposure Parameters
Modes

[Still Image] Single Frame, Continuous (H, M, L), Self-timer (12s, 2s, Continuous), Bracketing (2, 3 or 5 frames), Depth of Field Bracketing (3frames), Motion Bracketing (3frames), Mirror-up,  Multi-Exposure, Interval Shooting, Interval Composite,  Interval Movie Record, Star Stream
[Movie] Remote Control

* Bracketing, Interval Shooting, Interval Composite, Interval Movie Record and Star Stream are possible to use with Self-timer
* Depth of Field Bracketing is available in Av mode. Depth of Field Bracketing is possible to use with Self-timer
* Motion Bracketing is available in Tv mode. Motion Bracketing is possible to use with Self-timer
* Multi-Exposure is possible to use with Continuous Shooting or Self-timer



Max. approx. 7.0 fps, JPEG (L: ★★★ at Continuous H): up to approx. 28 frames, RAW: up to approx. 8 frames, RAW+: up to approx. 7 frames
Max. approx. 3.0 fps, JPEG (L: ★★★ at Continuous M): up to approx. 70 frames, RAW: up to approx. 15 frames, RAW+: up to approx. 10 frames
Max. approx. 0.8 fps, JPEG (L: ★★★ at Continuous L):  up to approx. 100 frames, RAW: up to approx. 100 frames, RAW+: up to approx. 25 frames
*ISO100
*Continuous shooting speed slows down with Electoronic shutter or High sensitivity

Multi-Exposure: Composite Mode(Additive/Average/Bright), Number of Shots(2 to 2000 times)

[Interval Shooting] Interval: 2s. to 24h./ Standby Interval: Min.・1s. to 24h., Number of shots: 2 to 2000 times, Start Interval: Now/Self-timer/Set Time

[Interval Composite] Interval: 2s. to 24h./ Standby Interval: Min.・1s. to 24h., Number of shots: 2 to 2000 times, Start Interval: Now/Self-timer/Set Time, Composite Mode: Additive/Average/Bright, Save Process: ON/OFF

[Interval Movie] Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval:2s. to 24h./ Standby Interval: Min・1s. to 24h., Number of shots: 8 to 2000 times (8 to 500 times at 4K), Start Interval:Now/Self-timer/Set Time

[Star Stream]  Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval:2s. to 24h./ Standby Interval: Min・1s. to 24h., Number of shots: 8 to 2000 times (8 to 500 times at 4K), Start Interval: Now/Self-timer/Set Time, Fade-out: OFF/Low/Medium/High

Face Recognition In Live View Mode
White Balance

Type: Method using a combination of the CMOS image sensor and the light source detection sensor

AUTO WB, Multi Auto WB, Daylight, Shade, Cloudy, Fluorescent Light (D:Daylight Color, N:Daylight White, W:Cool White, L:Warm White), Tungsten Light, Flash, CTE, Manual WB (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a captured image

Fine Adjustment: Adjustable ±7 steps on A-B axis or G-M axis

Digital Filter Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome
Movie
Recording

File Format:

MPEG-4 AVC/H.264 (MOV) *Motion JPEG(AVI) for Interval Movie Record
Recorded Pixels: Full HD(1920x1080, 60i/50i/30p/25p/24p)
HD (1280x720, 60p/50p/30p/25p/24p)



Auto Focus:

AF Method: Contrast detection
AF mode: Single AF (AF.S), Continuous AF (AF.C)  * Continuous AF (AF.C) is available with the dedicated lens.
AF area: Multiple AF points, Select, Spot
Focus Peaking: Highlight Edge/Extract Edge/OFF



Sound:

Built-in stereo microphone, external microphone (Stereo recording compatible)
Recording Sound Level adjustable



Recording Time:

Up to 25 minutes; automatically stops recording if the internal temperature of the camera becomes high.



Custom Images: Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Bleach Bypass, Reversal Film, Monochrome, Cross Processing

Cross Processing: Randum, Preset 1-3, Favorite 1-3



Digital Filter:

Extract Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome

Playback
Digital Filter

Base Parameter Adj, Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome, Tone Expansion, Sketch, Water Color, Pastel, Posterization, Miniature,  Soft, Starburst, Fish-eye, Slim, Monochrome

Options

Playback View:

Single frame,  Multi-image display (6,12, 20, 35, 80 segmentation), Display magnification (up to 16x, Quick Zoom view available), Grid display (4x4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White ), Rotating, Histogram (Y histogram, RGB histogram), Bright area warning, Auto Image Rotation, Detailed information, Copyright Information (Photographer, Copyright holder), GPS information (latitude, longitude, altitude, Coordinated Universal Time) , Orientation,  Folder Display, Calendar Filmstrip Display, Slide Show,



Delete:

Delete single image, delete all, select & delete, delete folder, delete instant review image

RAW Development:



RAW file select:
Select Single Image, Select Multiple Images, Select a folder

RAW Development Parameter:
White Balance, Custom Image,  Sensitivity, Clarity, Skin Tone, Digital filter, HDR, Pixel Shift Resolution, Shadow Correction, High-ISO NR, Distortion Correction, Peripheral Illumin. Corr., Lateral Chromatic Aberration Correction, Diffraction Correction, Color Fringe Correction, File Format (JPEG/TIFF), Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Color Space



Edit:

Image Rotation, Color Moiré Correction, Resize, Cropping (Aspect ratio and Slant adjustment available),
Movie Edit (Divide or delete selected frames), Capturing a JPEG still picture from a movie, Saving RAW data in buffer memory, Image Copy

Storage
External

Storage Medium: SD, SDHC and SDXC Memory Card (Conforms to USH-1 standards), Eye-Fi card,
FLU card

File Format

RAW (PEF/DNG), JPEG (Exif 2.30), DCF2.0 compliant

Recorded Pixels JPEG: L(24M: 6016x4000) M(14M:4608x3072) S(6M:3072x2048) XS(2M:1920x1280),
RAW: L(24M:6016x4000)

Quality Level RAW (14bit): PEF, DNG, JPEG:*(Best),**(Better),***(Good), RAW + JPEG
simultaneous capturing available

Color Space: sRGB, AdobeRGB

File Name

"IMGP****" or User assingned file name

File name numbering: Sequential, Reset

Special Features
Features











Wireless LAN
Standards IEEE 802.11b/g/n (Standard wireless LAN protocol)
Frequency (Center Frequency) 2412MHz to 2462MHz (channels: Ch.1 to Ch.11)
Security

Authentication:  WPA2, Encryption:  AES

Interface
Interface Connection Port: USB2.0 (micro B), External power supply terminal, Stereo microphone input / Cable switch input ( ø3.5mm connector)

MSC/PTP (SlimPort compatible)

Video output: USB terminal
* SlimPort-HDMI adapter required

Power
Source

Battery Type: Rechargeable Lithium-ion Battery D-LI109

AC Adapter: AC Adapter Kit K-AC168 (Optional)

Performance Number of recordable images:

(with 50% flash usage): approx. 390 images, (without flash usage): approx.: 420 images
Playback time: Approx. 270 minutes
* With a fully-charged Rechargeable Lithium-ion Battery under the temperature at 23°C. Tested in compliance with CIPA standard.
  Actual results may vary depending on the shooting condition.

Body
Features
  • Operating Environment:
    Temperature: -10°C~40°C (14°F~104°F)
    Humidity: 85% or less (no condensation)
  • Indicator Lamps: Self-timer (ON/OFF), GPS (ON/OFF)
  • Dustproof and Weather-resistant by 67 sealing (including buttons, dials and covers



Customization
  • USER Mode: Up to 5 settings can be saved
  • Function Dial: C1, C2, C3 (ISO Sensitivity,  EV Compensation, Bracket Value, Custom Image, AF Mode, AF Active Area, Focus Peaking, Program Line, Shutter Mode Selection, Recorded Pixels, AA Filter Simulator, Grid Display, LCD Display Options, Image Magnification, Outdoor View Setting)
    * Recorded Pixles: [Still Image]  L, M, S or XS selectable  [Movie]  Full HD or  HD selectable
  • Custom Functions: 24 items
  • Mode Memory: 18 items
  • Button Customization: Fx1 Button, Fx2 Button, Fx3 Button (EV Compensation, ISO Sensitivity, Preview, AE Lock, Change AF Area, One Push File Format, Electronic Level, Wi-Fi, Outdoor View Setting, Night Vision LCD Display, Key Lock) * Wi-Fi, Outdoor View Setting and Night Vision LCD Dispay can be assinged  only on Fx1
  • AF/AE-L button (AF1, AF2, Cancel AF, AE Lock)
  • Various settings for the action of the e-dials in each exposure mode can also be saved.
  • AF Customization:
    AF.S: Focus-priority/ Release-priority
    1st Frame Action in AF.C: Release-priority/Auto/Focus-priority
    Action in AF.C Continuous: Focus-priority, Auto, FPS-priority
    Hold AF Status: OFF, Low, Medium, High
    AF in Interval Shooting: Locks focus at 1st exposure, Adjusts focus for each shot
  • AF Fine Adjustment:
    ±10 step, Uniform adjustment, Individual adjustment (up to 20 can be saved)
  • Oparation Control Lock:
    Type1:Disables exposure control operations in standby mode
    Type2:Disables the control functions of  OK button, MENU button and  Four-way controller in standby mode
    Text Size:Standard, Large
  • Copyright Information:
    Names of "Photographer" and "Copyright Holder" are embedded to the image file.
    Revision history can be checked using the provided software.
Height

101mm

Width

131.5mm

Depth

76mm

Weight

Approx. 703g (Including dedicated battery and 1x SD Memory Card), Approx. 642g (body only)

Compatibility
PC

System Requirements

Windows:

OS Windows 10/Windows 8.1 (32bit/64bit)/ Windows 8 (32bit/64bit)/ Windows 7 (32bit/64bit)
CPU Intel Core 2 Duo or higher
RAM 4GB or more
Free Disk Space Program installation and start-up: 100 MB or more of available space
Image file saving: Approximately 10 MB per file (JPEG) / approximately 30MB (RAW)
Monitor 1280 x 1024 dots, 24 bit full-color or more



Mac

System Requirements

Macintosh:

OS OS X 10.12 / 10.11 / 10.10 / 10.9 / 10.8 /
CPU Intel Core 2 Duo or higher
RAM 4GB or more
Free Disk Space Program installation and start-up: 100 MB or more of available space
Image file saving: Approximately 10 MB per file (JPEG) / approximately 30MB (RAW)
Monitor 1280 x 1024 pixels, 24 bit full-color or more



Accessories
Kit Content

Rechargeable Lithium-ion Battery D-LI109

Battery Charger D-BC109

AC plug cord

Strap O-ST162

Software (CD-ROM) S-SW167

Eyecup FR

Hot shoe cover FK

Body mount cover

Optional

Lithium-Ion battery D-LI109 - 39067

Battery Charger kit K-BC109 - 39032

AC Adapter K-AC168 -

Weather resistant grip D-BG5 - 39799

SLR case - 50099

SLR backpack - 50278

Weatherproof remote control O-RC1 - 39892

Cable switch CS-205 - 37248

Ring flash AF 160FC - 30477

Flash AF 200FG - 30465

Flash AF 360FGZ II - 30438

Flash AF 540FGZ II - 30456

O-ICK1 sensor cleaning kit - 39357

Your Comments

Loading comments…
